Chapter 4 Replacing Motherboard Assembly Components 4-19

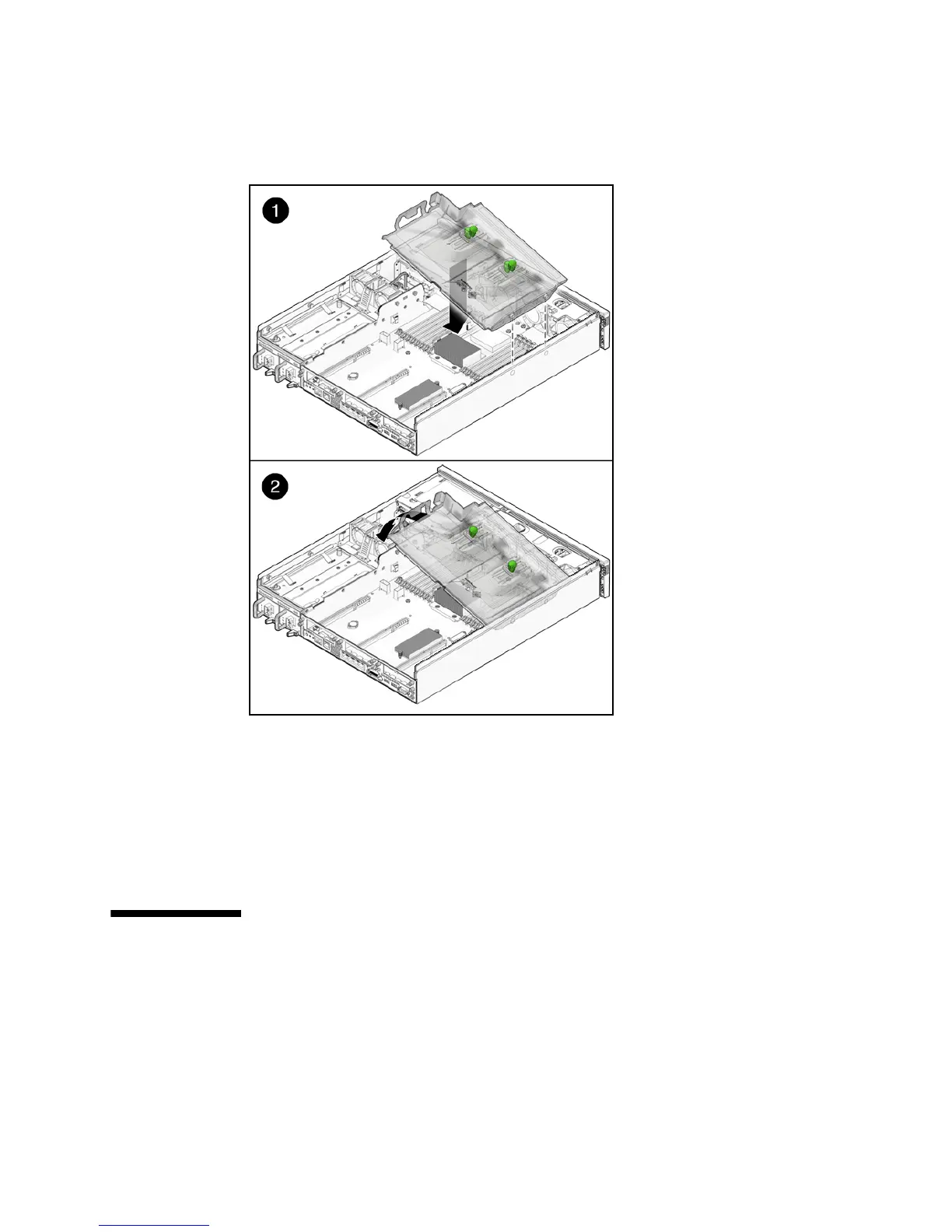

FIGURE 4-12 Installing the Air Duct
4. Consider your next step:
■ If you installed the air duct as part of another procedure, return to that procedure.
■ Otherwise, bring the server back online. See Section 4.1, “Powering Off and
Powering On the Server” on page 4-1.
5. See Chapter 6 to return the server to operation.
4.5 FB-DIMM Layout
Use these FB-DIMM configuration rules, FIGURE 4-13, and TABLE 4-1 to help you plan
the memory configuration of your server.
■ There are 16 slots that hold industry-standard FB-DIMM memory modules.
