Chapter 2 Preparing for Service 2-11

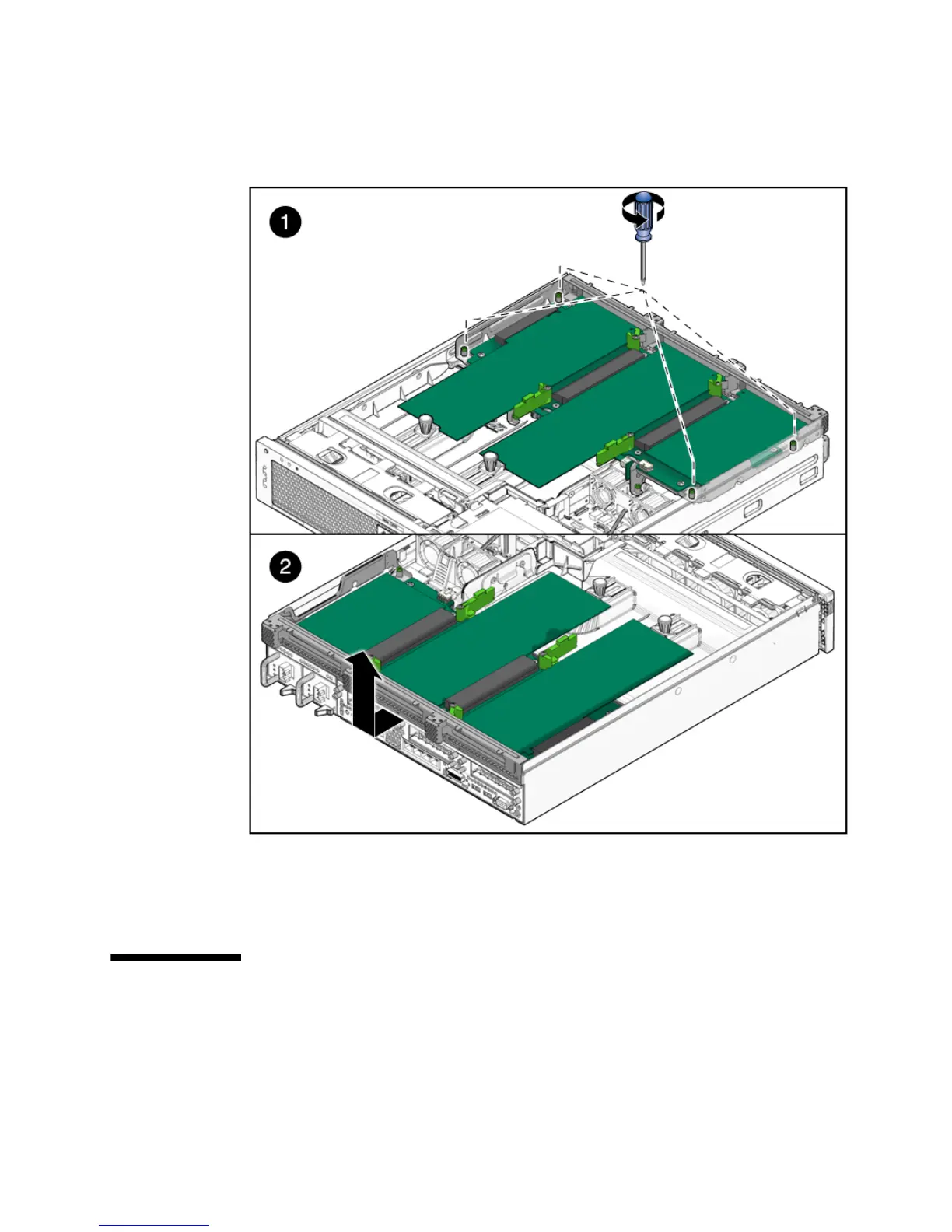

FIGURE 2-5 Removing Screws and Lifting the PCI Mezzanine
5. Lift the PCI mezzanine away from the chassis and place it on an antistatic mat.
You are now ready to replace components.
2.4 Field-Replaceable Units
FIGURE 2-6 and TABLE 2-1 identifies the field-replaceable units (FRUS) in the server.
