Chapter 4 Replacing Motherboard Assembly Components 4-7

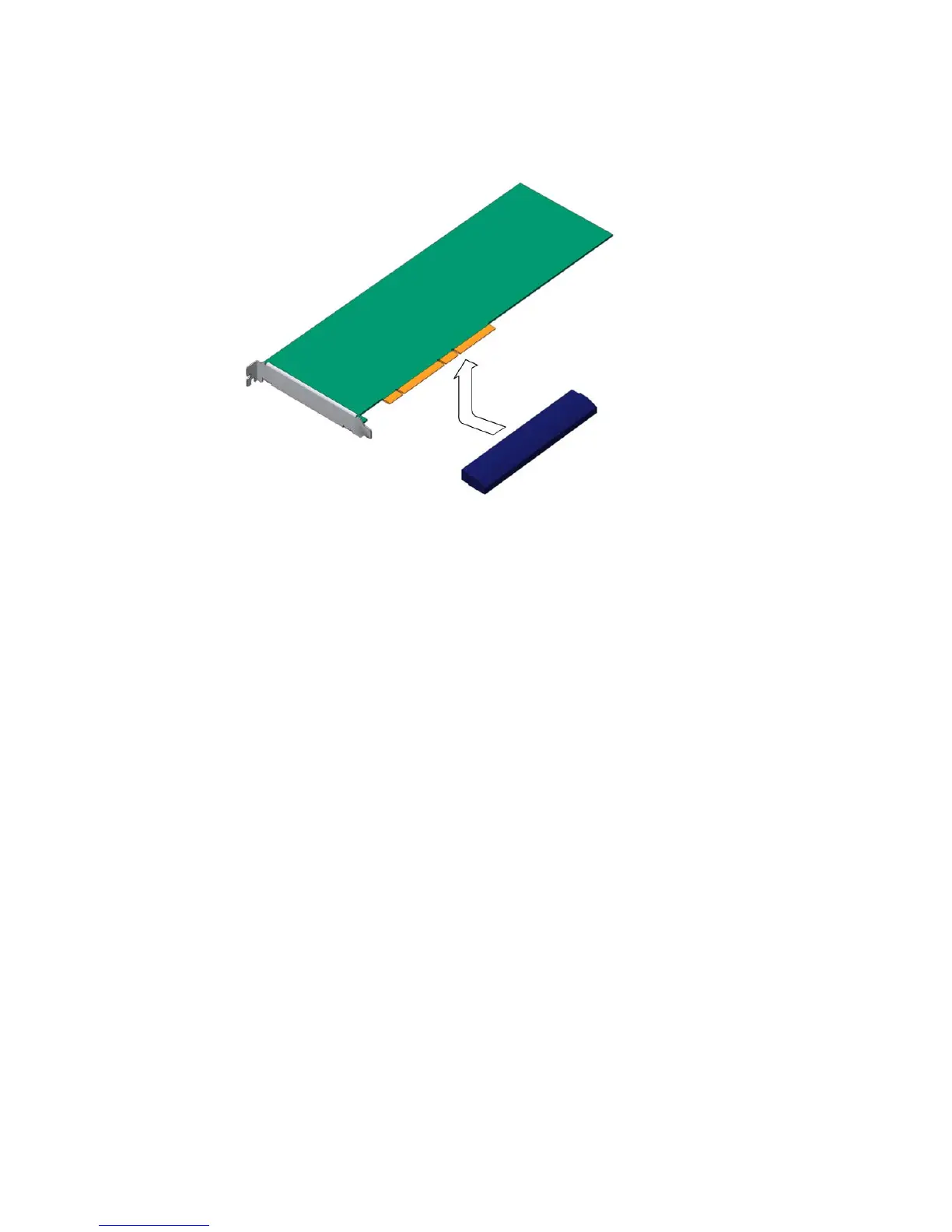

FIGURE 4-4 Removing PCI-X 4 and PCIe 5 Cards From the PCI Mezzanine
Set the card aside on an antistatic mat.
5. Consider your next step:
■ If you are replacing the card, continue to “To Install PCI-X 4 and PCIe 5 Cards” on
page 7.
■ If you do not replace the card, install a filler panel.
6. Tighten the card securing screws.
7. Bring the server back online. See Section 4.1, “Powering Off and Powering On
the Server” on page 4-1.
▼ To Install PCI-X 4 and PCIe 5 Cards
1. Prepare the server for PCI card installation. See Section 4.1, “Powering Off and
Powering On the Server” on page 4-1.
2. With the PCI mezzanine installed and cabled, determine which slot to install
the card and loosen the appropriate card securing screws (
FIGURE 4-3).
3. Remove the replacement card from its packaging and place it onto an antistatic
mat.
4. If a filler panel is installed, remove it by pulling the tab.
