3-8 Sun Netra T5220 Server Service Manual • January 2012

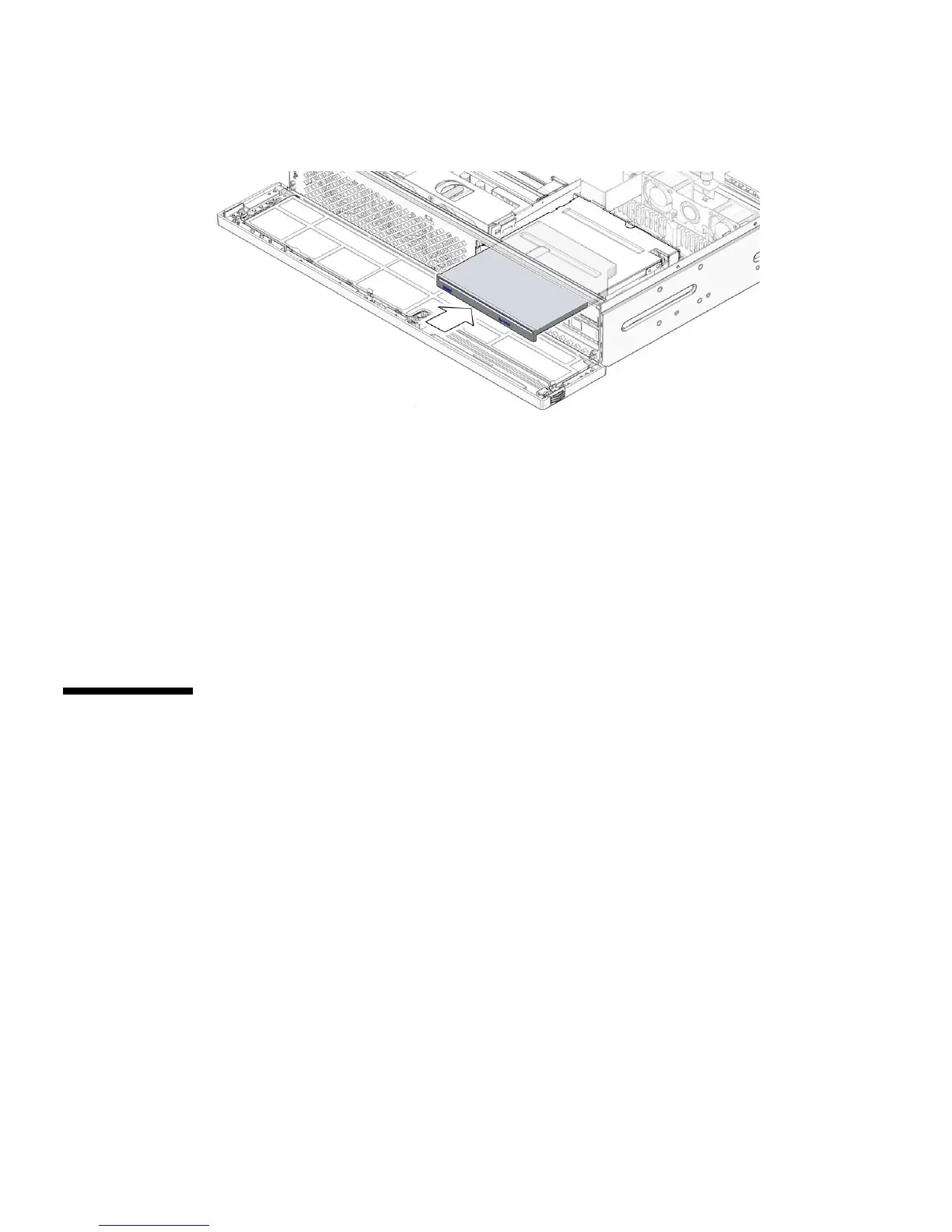

FIGURE 3-8 Inserting the Optical Media Drive
3. Press the optical media drive in until it seats and release the tab.
4. Close the bezel.
5. Consider your next step:
■ If you installed the optical drive as part of another procedure, return to that
procedure.
■ Otherwise, perform the following tasks to bring the server back online:
■ Section 6.1.3, “Removing Antistatic Measures” on page 6-4
■ Section 6.1.6, “Powering On the Server” on page 6-8
3.3 Replacing the Media Bay Assembly
3.3.1 Removing the Media Bay Assembly
1. Prepare the server for media bay assembly removal. See:
■ Section 2.3.1, “Powering Off the Server” on page 2-3
■ Section 2.3.2, “Disconnecting Cables From the Server” on page 2-4
■ Section 2.3.3, “Removing the Server From the Rack” on page 2-5
■ Section 2.3.4, “Performing Antistatic Measures” on page 2-8
■ Section 2.3.5, “Removing the Top Cover” on page 2-8
2. Remove the optical media drive and the hard drives. See:
■ Section 3.2.1, “Removing the Optical Media Drive” on page 3-6
