5-16 Sun Netra T5220 Server Service Manual • January 2012

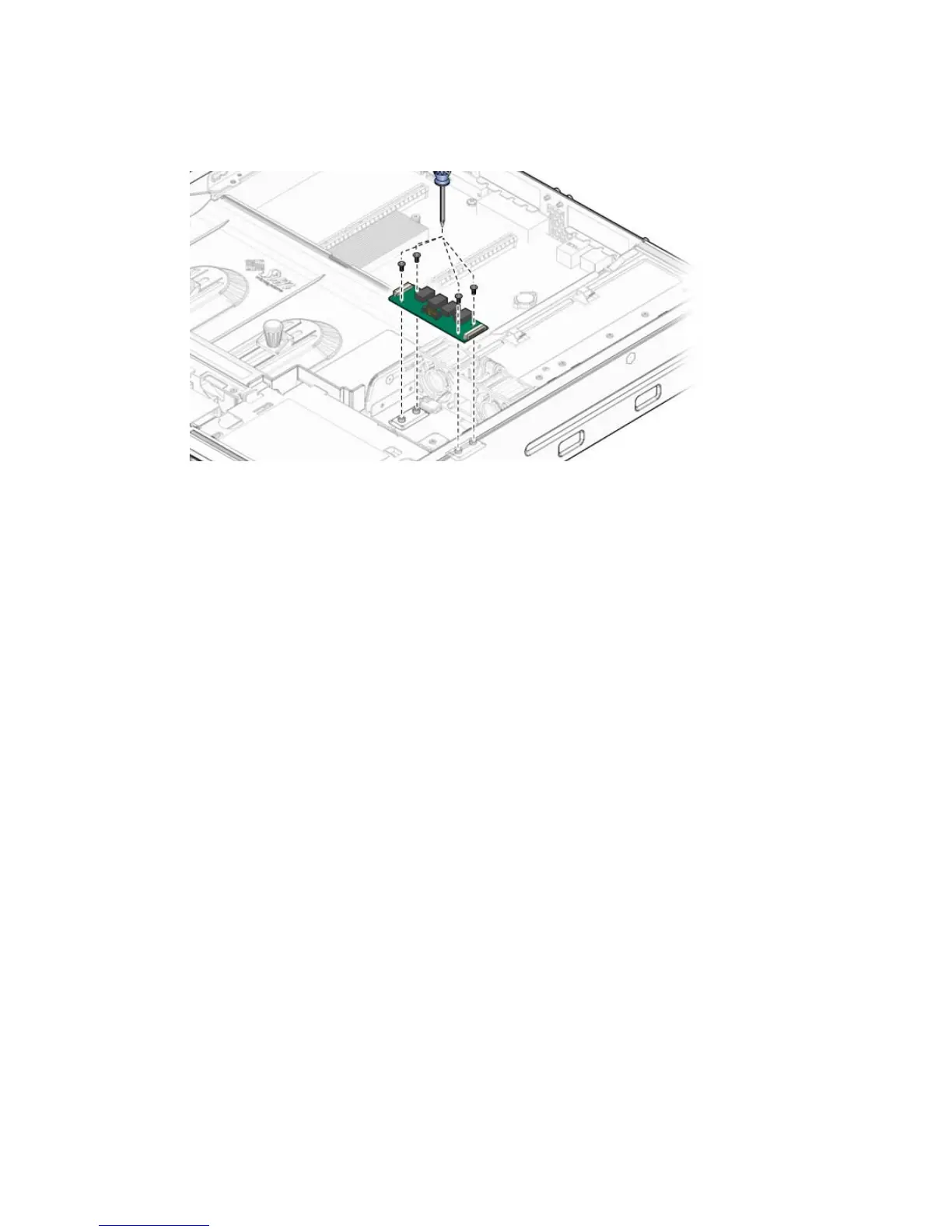

FIGURE 5-14 Removing the Alarm Board Screws and Removing from Chassis
4. Set the alarm board aside on an antistatic mat.
5. Consider your next step:
■ If you removed the alarm board as part of another procedure, return to that
procedure.
■ Otherwise, continue to Section 5.6.2, “Installing the Alarm Board” on page 5-16.
5.6.2 Installing the Alarm Board
1. Remove the replacement alarm board from its packaging and place it on an
antistatic mat.
2. Seat the alarm board back into the chassis, and tighten the four alarm board
screws.
3. Reconnect the alarm board cables (
FIGURE 5-15).
