Chapter 5 Replacing Chassis Components 5-9

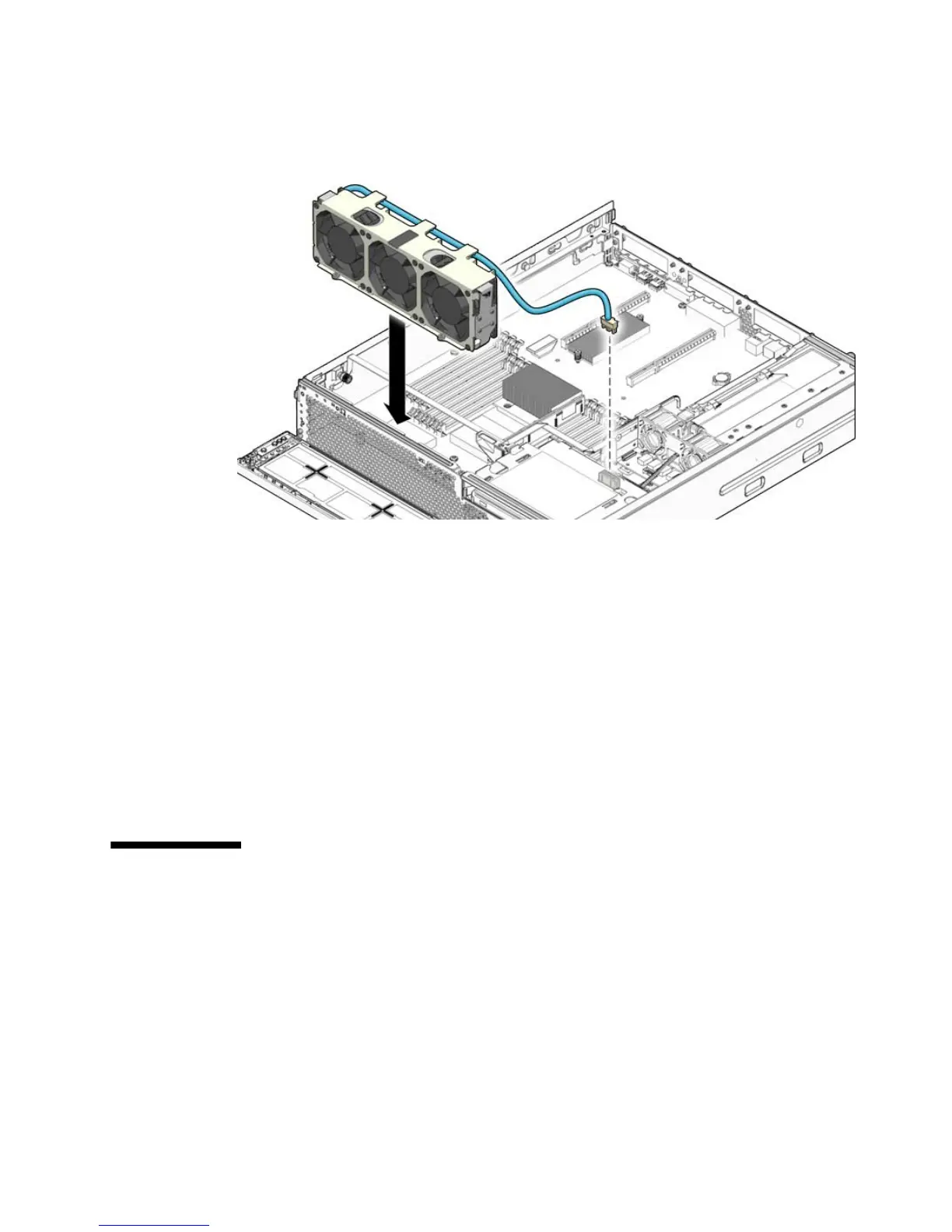

FIGURE 5-8 Installing the System Fan Assembly Into the Chassis
4. Route the fan assembly cable back into the cable guides.
5. Consider your next step:
■ If you installed the fan assembly as part of another procedure, return to that
procedure.
■ Otherwise, perform the following tasks to bring the server back online:
■ Section 6.1.2, “Installing the Top Cover” on page 6-3
■ Section 6.1.3, “Removing Antistatic Measures” on page 6-4
■ Section 6.1.4, “Reinstalling the Server Chassis in the Rack” on page 6-5
■ Section 6.1.5, “Reconnecting Cables to the Server” on page 6-7
■ Section 6.1.6, “Powering On the Server” on page 6-8
5.4 Replacing the Hard Drive Fan Assembly
(FT1)
The hard drive fan assembly is labeled FT1.
