Chapter 6 Finishing Up 6-5
6.1.4 Reinstalling the Server Chassis in the Rack
1. On the rack, ensure that the rails are extended.
2. Place the ends of the chassis mounting brackets into the slide rails.

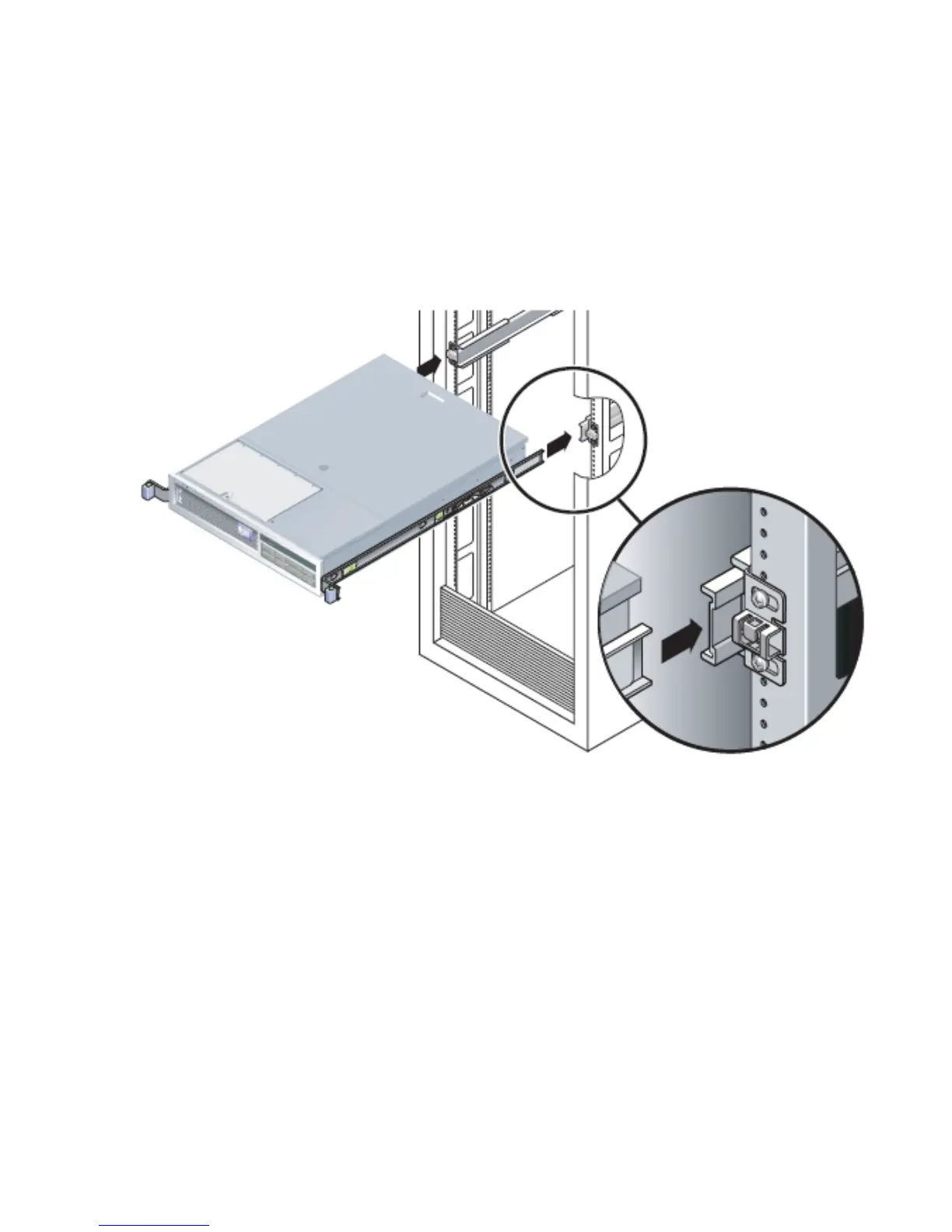

FIGURE 6-4 Returning the Server to the Rack
3. Slide the server into the rack until the brackets lock into place.
4. Release the slide rails from the fully extended position by pushing the release
levers on the side of each rail (
FIGURE 6-5).
