Chapter 1 Server Diagnostics 1-13

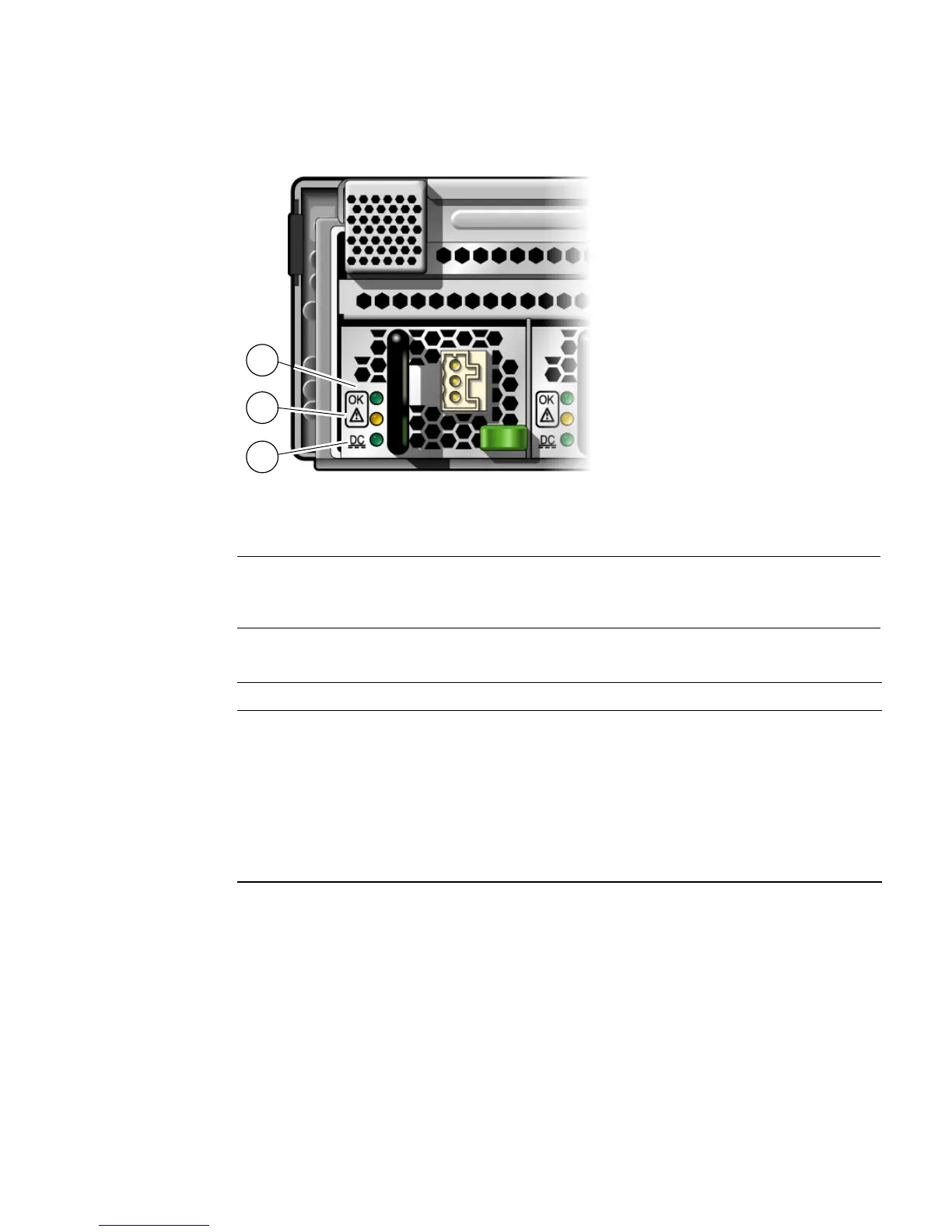

FIGURE 1-5 Power Supply LEDs
1.3.4 Ethernet Port LEDs
The ILOM management Ethernet port and the four 10/100/1000 Mbps Ethernet ports
each have two LEDs, as shown in
FIGURE 1-6 and described in TABLE 1-5.
Figure Legend
1 Power OK power supply LED
2 Fault power supply LED
3 Input OK power supply LED
TABLE 1-4 Power Supply LEDs
LED Color Description
Power OK
Green • On – Normal operation. DC output voltage is within normal
limits.
• Off – Power is off.
Fault Amber • On – Power supply has detected a failure.
• Off – Normal operation.
Input OK Green • On – Normal operation. Input power is within normal limits.
• Off – No input voltage, or input voltage is below limits.
2
1
3
