2-10 Sun Netra T5220 Server Service Manual • January 2012

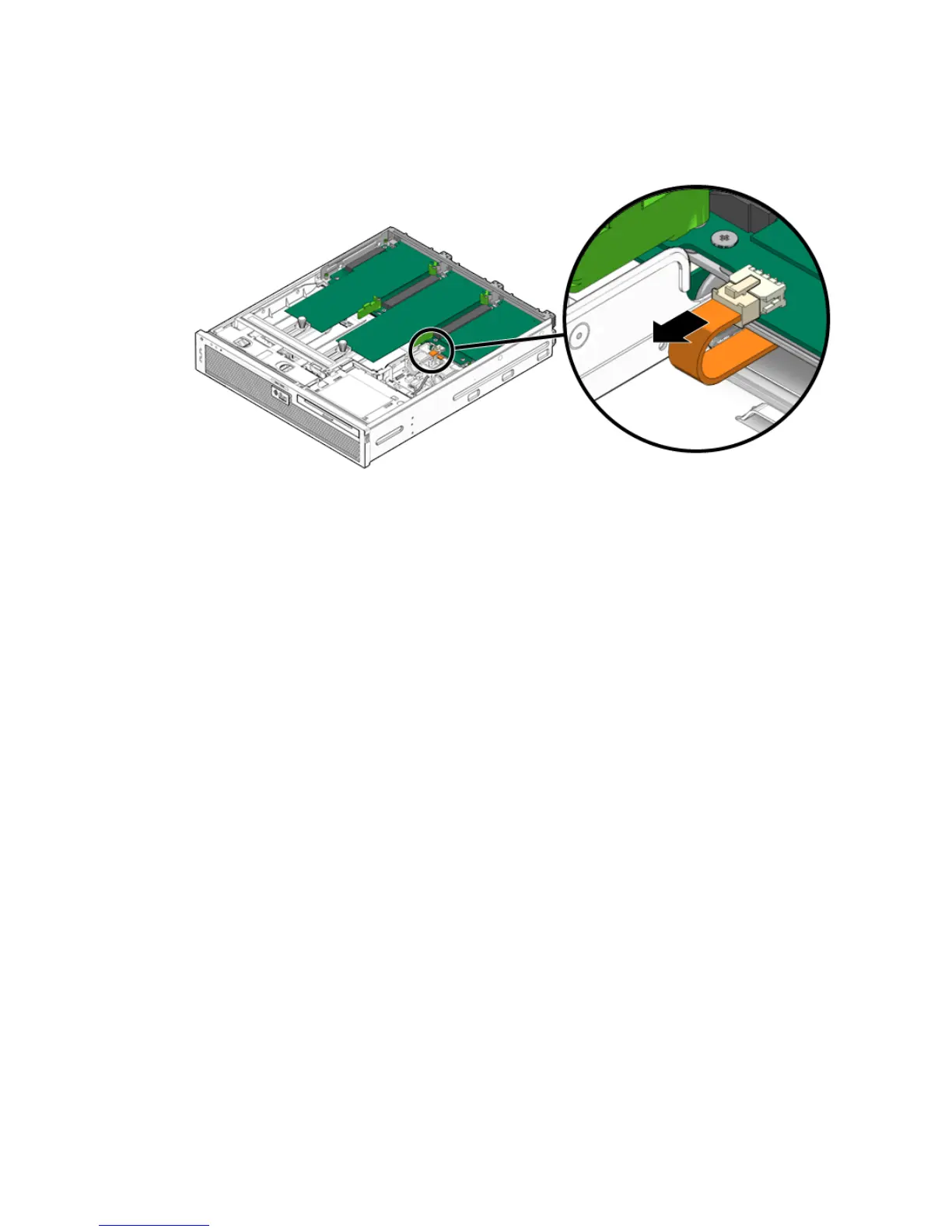

FIGURE 2-4 Removing the PCI Mezzanine Cable and I/O Cables From PCI Mezzanine
3. Use a No. 2 Philips Screwdriver to loosen the four green captive screws securing
the PCI mezzanine. (
FIGURE 2-5).
4. Lift the PCI mezzanine up and out. (
FIGURE 2-5).
