Chapter 5 Replacing Chassis Components 5-11

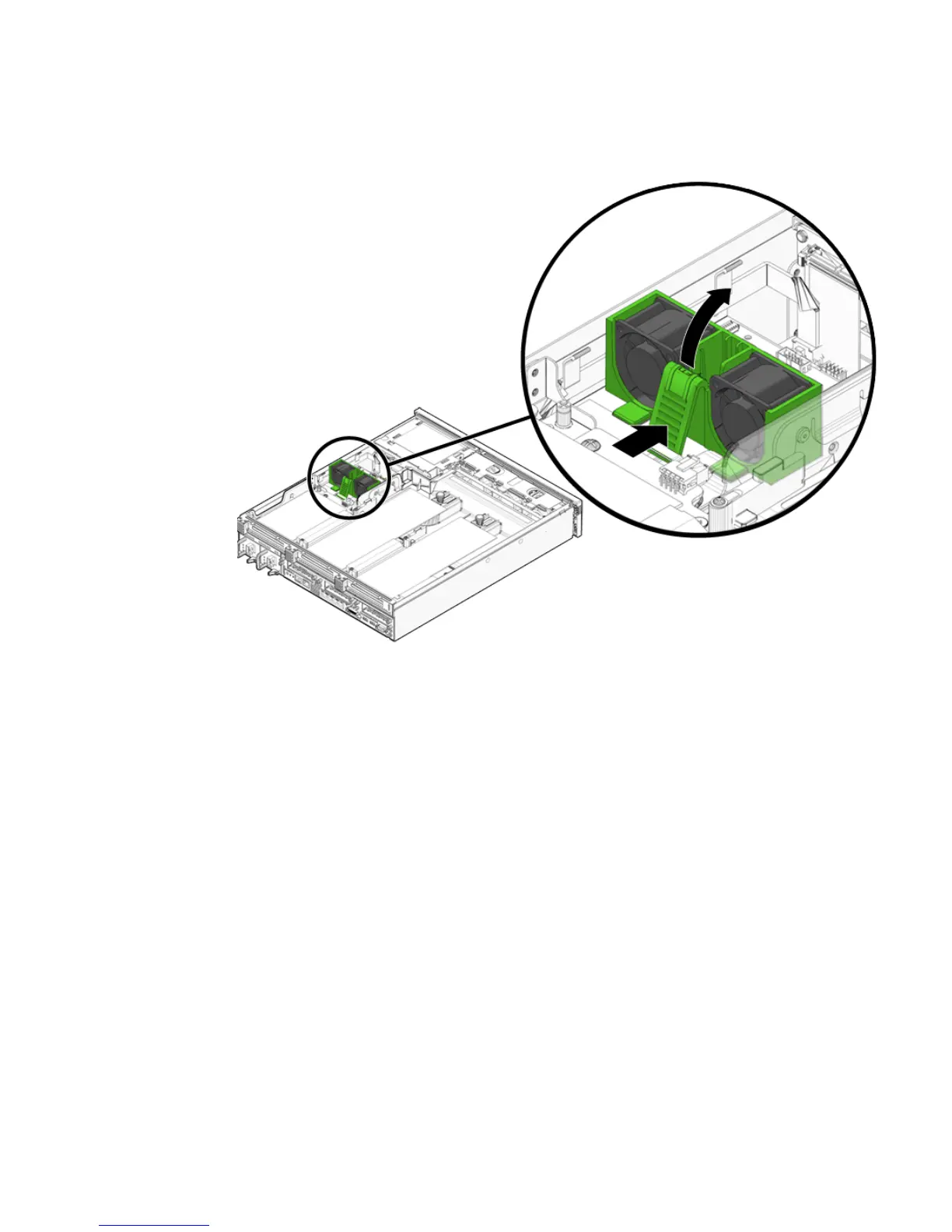

FIGURE 5-10 Releasing the Hard Drive Fan Bracket
5. Slide the bracket forward and lift the hard drive fan assembly out (FIGURE 5-11).
