Servicing CRUs That Require Server Power-Off 89
4. Install the PCIe riser.
For instructions, see “Install a PCIe Riser Into PCIe Slots 3 and 4” on page 82.
▼ Remove the Internal HBA Card From PCIe Slot 4
1. Remove the PCIe riser from slots 3 and 4.
For instructions, see “Remove a PCIe Riser From PCIe Slots 3 and 4” on page 80.

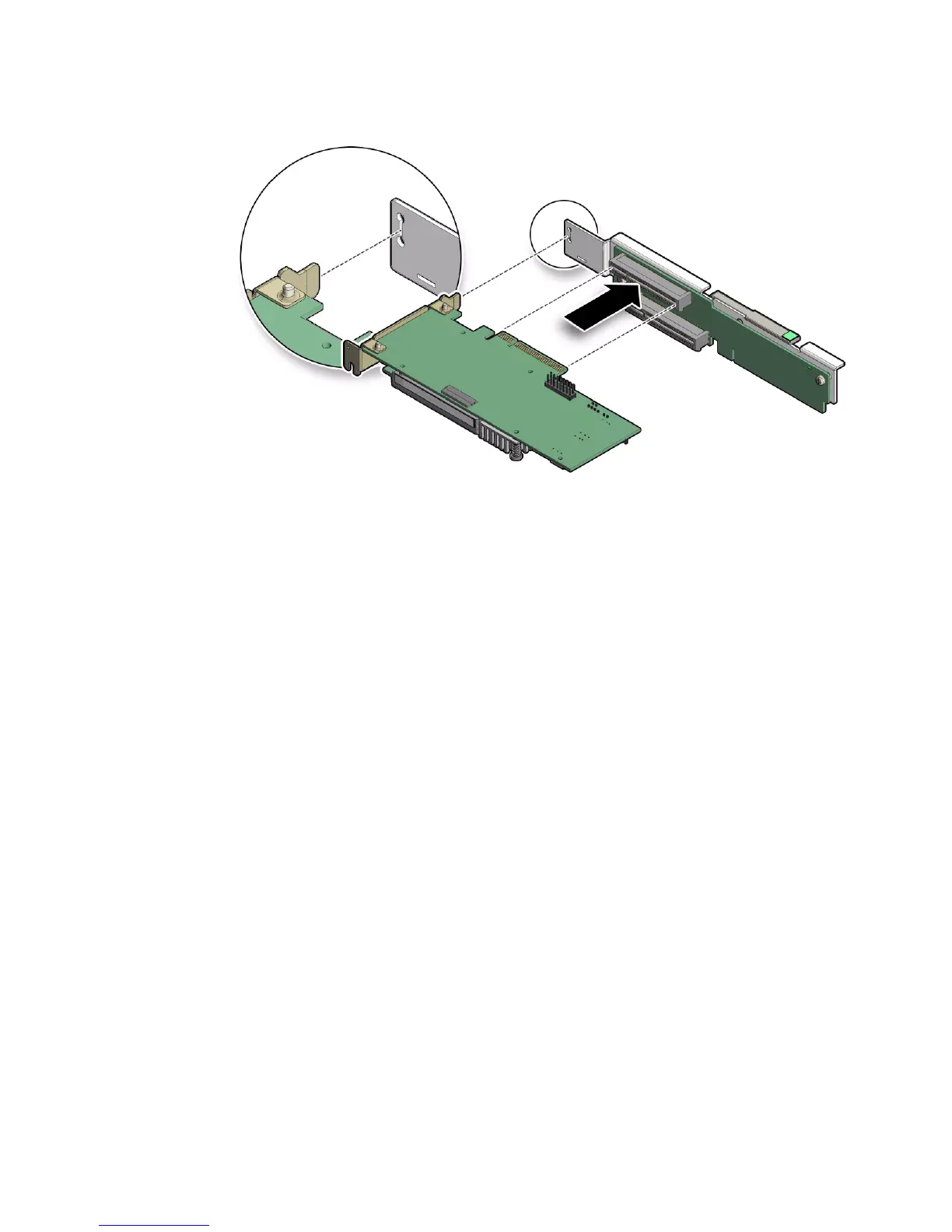

2. Remove the internal host bus adapter card from the riser.
a. Hold the riser in one hand and use your other hand to carefully remove the
card from slot 4 of the riser.
b. Disconnect the rear bracket attached to the PCIe card from the rear of the
PCIe riser.
