4 Sun Server X4-2 Service Manual • May 2014
Related Information
■ “Front Panel Controls and Indicators on a System With Four 2.5-inch Drives and
DVD Drive” on page 4
■ “Server Back Panel View” on page 5
Front Panel Controls and Indicators on a System
With Four 2.5-inch Drives and DVD Drive
The following figure shows the controls, status indicators (LEDs), connectors, and
drives on the front panel of a Sun Server X4-2 configured with four 2.5-inch storage
drives and a SATA DVD drive.

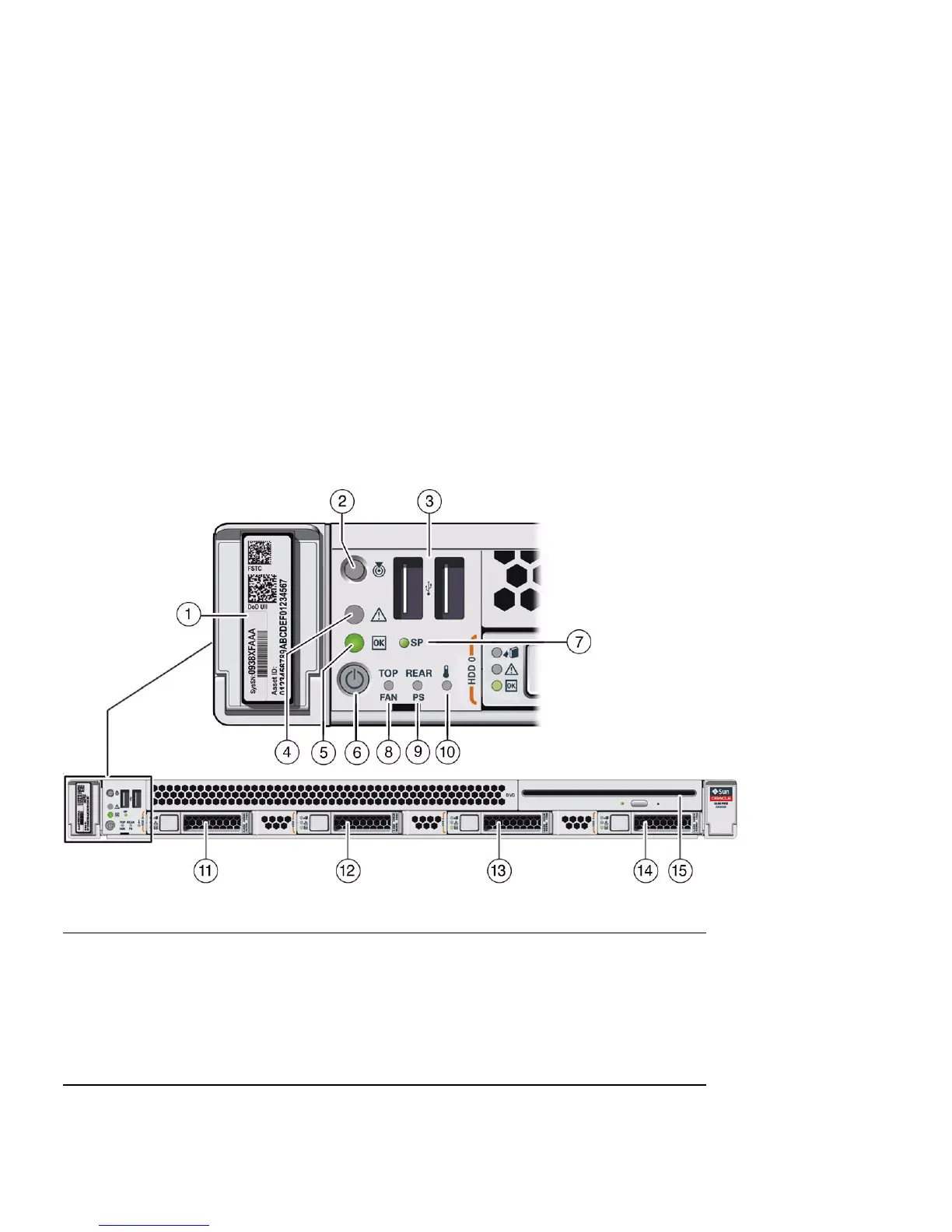

FIGURE: Front Panel View of a Server With Four 2.5-inch Drives and SATA DVD Drive
Figure Legend
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
9 Rear Power Supply Fault LED: amber
2 Locator LED/Locator button: white 10 System Over Temperature Warning LED:
amber
3 USB 2.0 connectors (2) 11 Storage drive 0 (optional)
4 Service Required LED: amber 12 Storage drive 1
5 Power/OK LED: green 13 Storage drive 2
