154 Sun Server X4-2 Service Manual • May 2014
Note – Ethernet ports NET 2 and NET 3 are nonfunctional in single-processor
systems.
Related Information
■ “Server Back Panel View” on page 5
■ “Disconnect Cables From the Server” on page 39
■ “Reconnect Data Cables and Power Cords” on page 149
Network Management Port
The server has one 10/100BASE-T Ethernet management domain interface, labeled
NET MGT. For information on configuring this port for managing the server with
Oracle ILOM, refer to the Oracle Integrated Lights Out Manager (ILOM) 3.1
Documentation Library at http://www.oracle.com/goto/ILOM/docs.

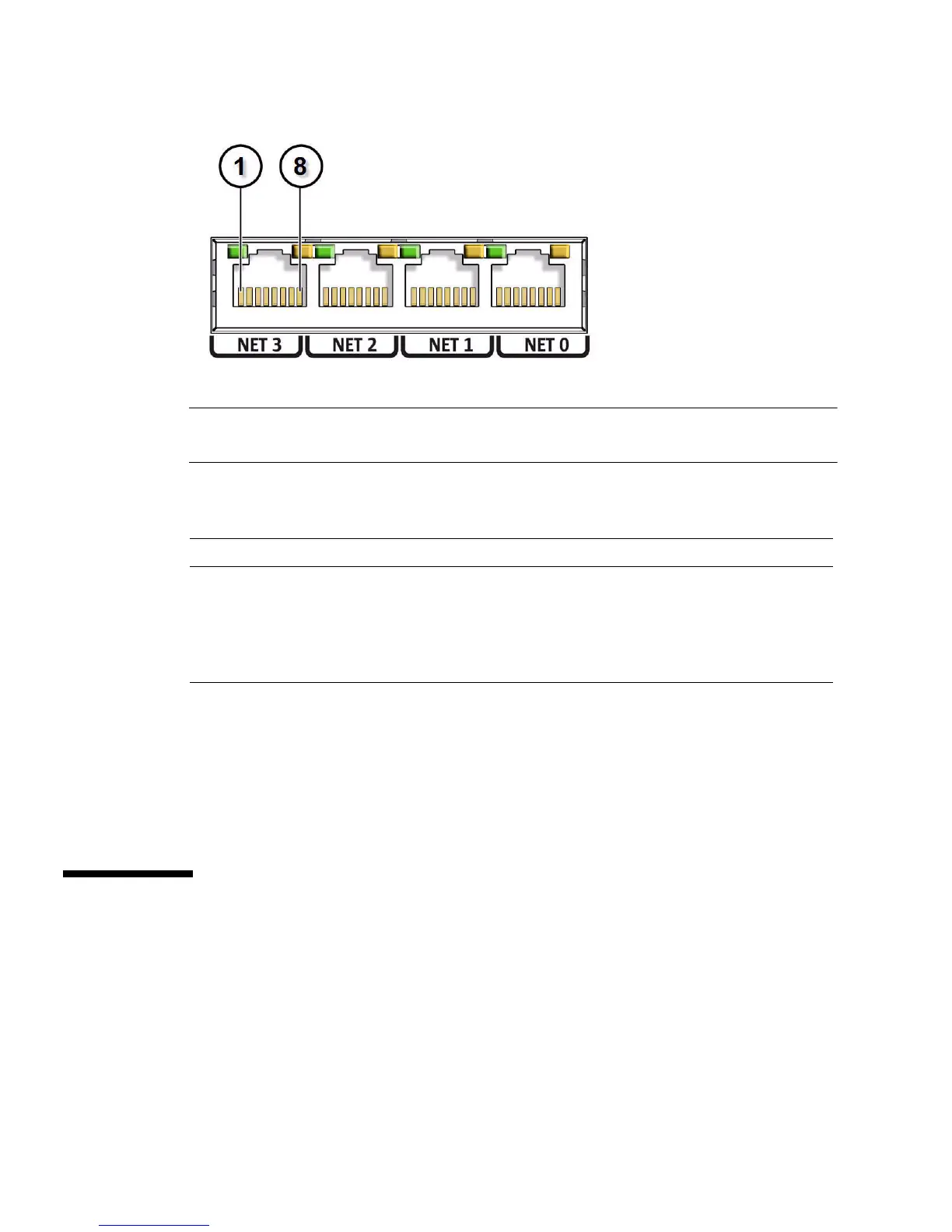

TABLE: 10-GbE Port Signals
Pin Signal Description Pin Signal Description
1 Transmit/Receive Data 0 + 5 Transmit/Receive Data 2 –
2 Transmit/Receive Data 0 – 6 Transmit/Receive Data 1 –
3 Transmit/Receive Data 1 + 7 Transmit/Receive Data 3 +
4 Transmit/Receive Data 2 + 8 Transmit/Receive Data 3 –
