Sun Oracle Sun Server X4-2 - Remove the Battery

Servicing CRUs That Require Server Power-Off 97
■ “Install the Battery” on page 98
Related Information
■ “Extend the Server to the Maintenance Position” on page 39
■ “Remove the Server Top Cover” on page 43
▼ Remove the Battery
1. Prepare the server for service.
a. Power off the server and disconnect the power cords from the power
supplies.
See “Powering Down the Server” on page 33.
b. Extend the server to the maintenance position.
See “Extend the Server to the Maintenance Position” on page 39.
c. Attach an antistatic wrist strap to your wrist and then to a metal area on the
chassis.
See “Take Antistatic Measures” on page 42.
d. Remove the server top cover.
See “Remove the Server Top Cover” on page 43.
2. To dislodge the battery from the retainer, place your finger under the side of the
battery nearest the rear of the server [1] and gently lift the battery up and out of
the retainer [2].

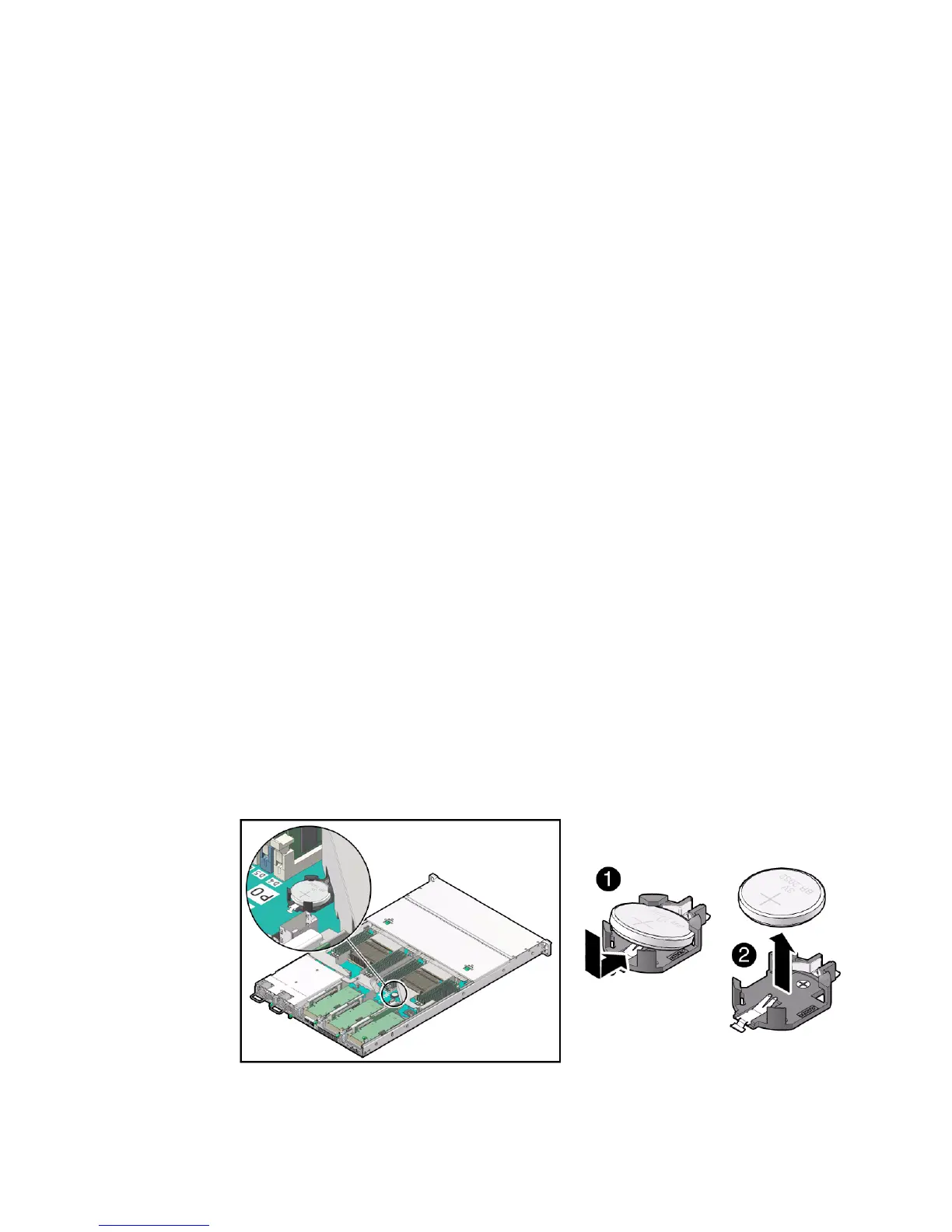

FIGURE: Removing the Battery
