SVAN 971 User Manual
87
The saving of the Summary Results can be
switched on or off in the Logger Setup window.

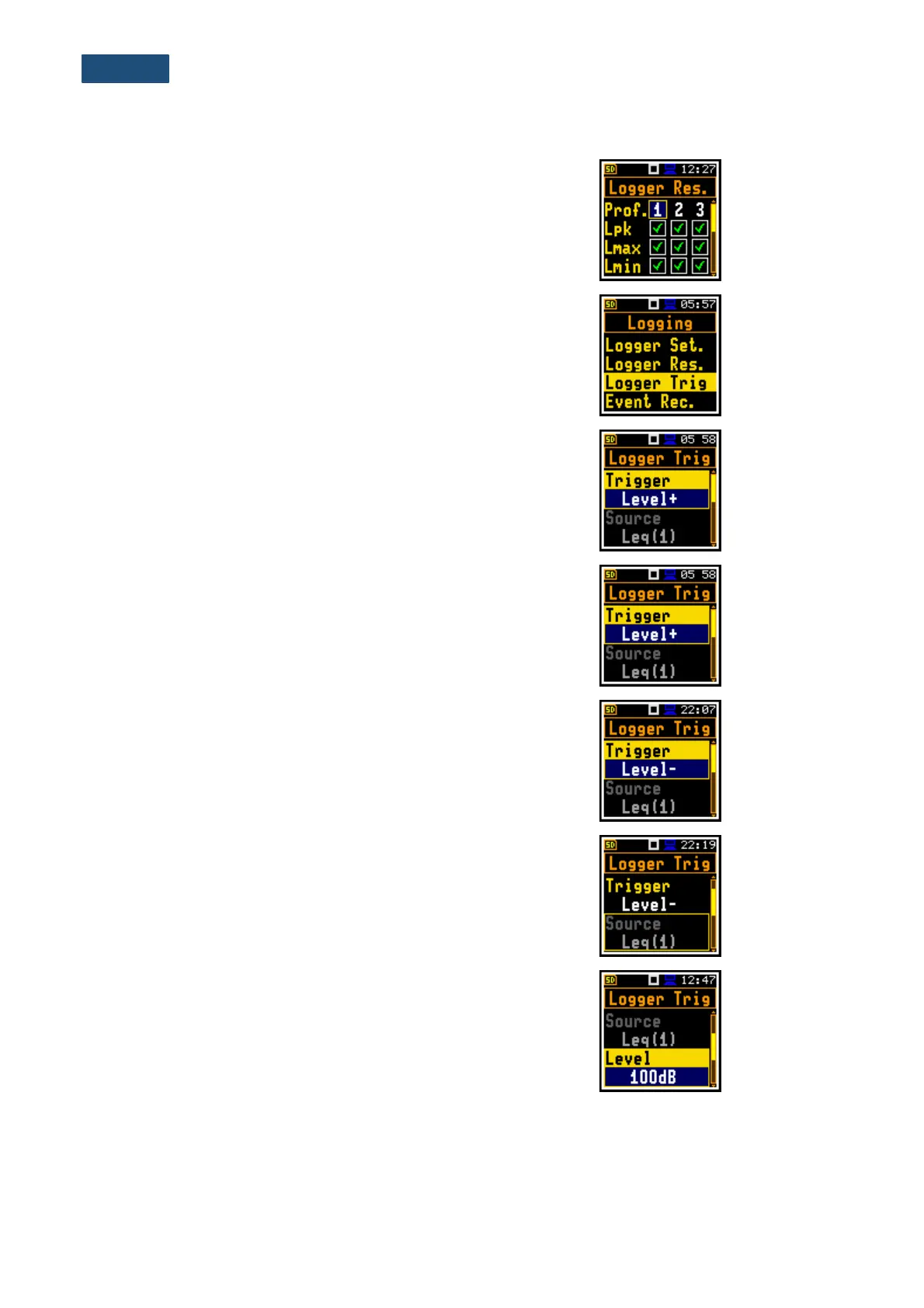

Logger Results
Results that can be logged to the logger file as a
time-history with the Logger Step: Lpeak, Lmax,
Lmin, Leq. For the 1/1 Octave and 1/3 Octave
functions also spectra can be saved.
Manual
5.5.2
Logger Trigger
Triggering of the time-history logging to a logger file.
Manual
5.5.3Błąd!
Nie można
odnaleźć
źródła
odwołania.
Trigger
Trigger type, that can be used for triggering time-
history logging: Level + and Level –.
If the instrument is waiting for the trigger condition,
which is checked every 0.5 millisecond, the
appropriate trigger icon is flashing on the display
alternatively with the „logger” icon.
Manual
5.5.3Błąd!
Nie można
odnaleźć
źródła
odwołania.
Level +
Type of trigger, enabling the logging of the time-
history results (Logger Results) calculated for the
Logger Step period under the condition: value of the
LEQ result (Source) integrated by the Logger Step
period is greater than the threshold level (Level). In
other cases, the logging is skipped.
Manual
5.5.3Błąd!
Nie można
odnaleźć
źródła
odwołania.
Level -
Type of trigger, enabling the logging of the time-
history results (Logger Results) calculated for the
Logger Step period under the condition: value of the
RMS result (Source) integrated by the Logger Step
period is lower than the threshold level (Level). In
other cases, the logging is skipped.
Manual
5.5.3Błąd!
Nie można
odnaleźć
źródła
odwołania.
Source
Result that is compared with the threshold level
(Level) for triggering – LEQ measured in the first
profile (Leq(1)).
Manual
5.5.3Błąd!
Nie można
odnaleźć
źródła
odwołania.
Level
Threshold level of the trigger condition.
Manual
5.5.3Błąd!
Nie można
odnaleźć
źródła
odwołania.
