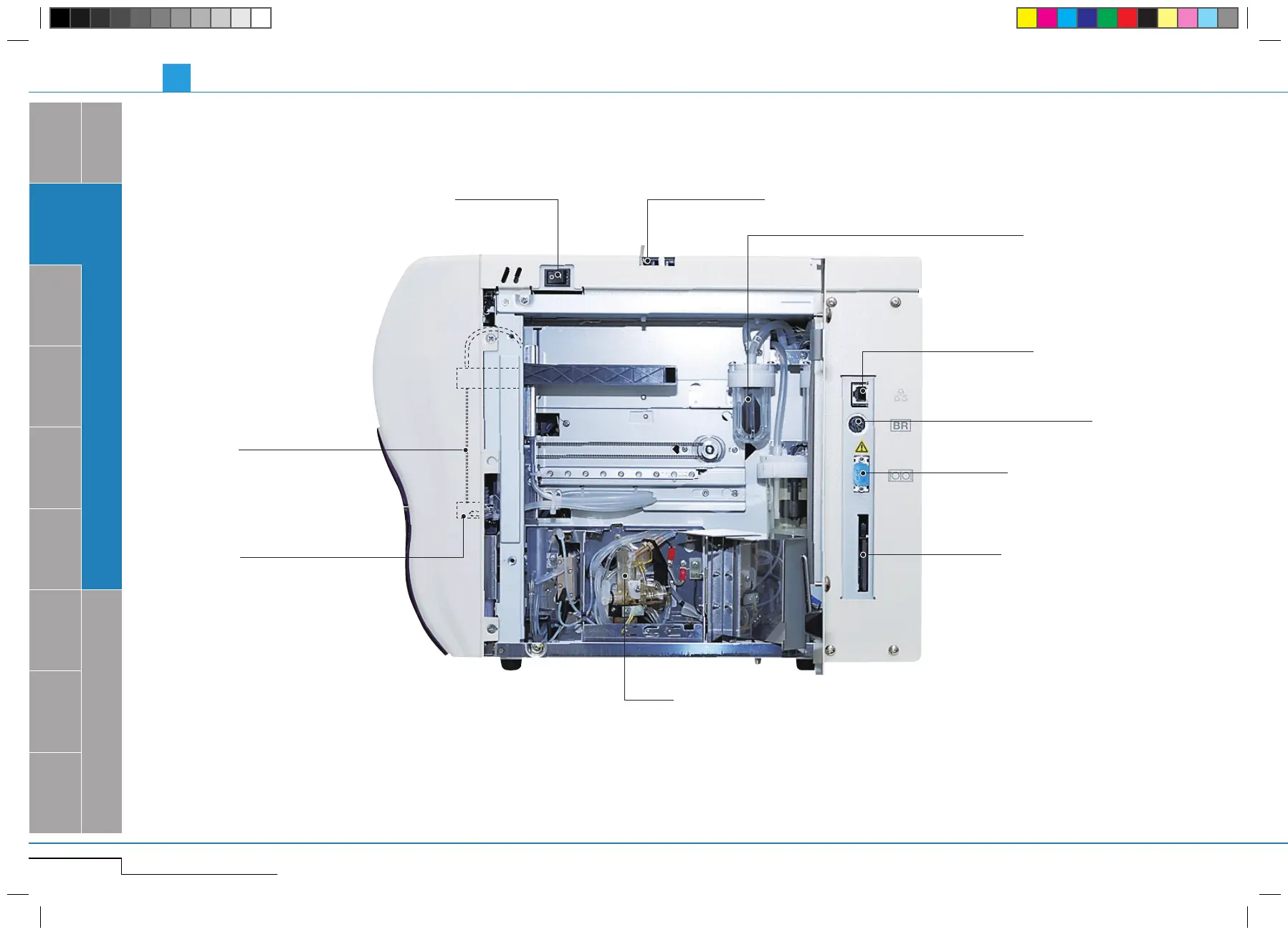

Main power switch
Serial port
Card slot
Built in thermal printer
Detector
RBC transducer, WBC transducer
and Hemoglobin detector
Rinse cup
Rinses the piercer (pipette) to
avoid sample-to-sample carry-
over.
Aspirates WB/PD blood samples.
Communication with host computer, etc.
9-pin D-SUB serial interface connector
(communication with host computer,
etc.)
Aspirating piercer (pipette)
1.1.SYSTEM OVERVIEW
Inserts a program card specified
by Sysmex.
Socket for Barcode-Reader
Socket for LAN
Tr a p c h a m b e r
In case of malfunction, avoids
reagents’ reflux into the vacuum
pump.
1.1.1.The instrument
pocH-100
i
