Before starting setup and analysis, please read through the following overview to get familiar with the instrument‘s parts and their description.
Open button
System fuses
AC power supply
Float switch connector
for waste bottle
Lysing reagent
inlet nipple
Diluent inlet nipple
Sample position
Adjust LCD screen contrast.
Press to open the sample po-
sition compartment.
AC 10 0 V
AC 240 V
Monitors the level in the waste bottle.
Aspirates lyse reagent.
Aspirates diluent.
Holds the adapter for the
analysis sample tube.

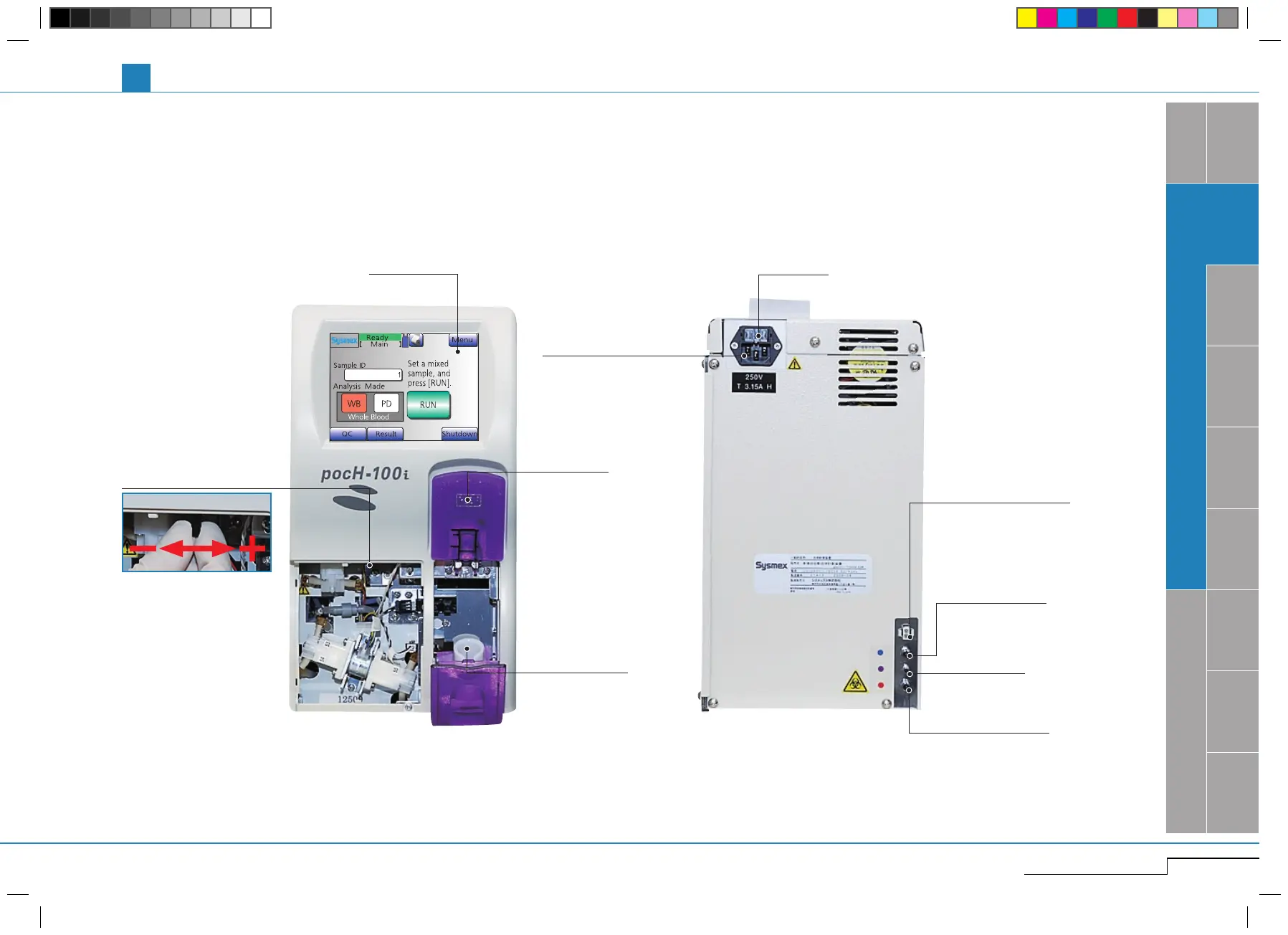

1.1.1. The instrument
1.1. SYSTEM OVERVIEW
Waste outlet nipple
Discharges waste.
Contrast adjustment knob
pocH-100
i
Revised June 2008
INTRODUCTION
SYSTEM OVERVIEW, TECHNICAL INFORMATION & SETUP
Color LCD screen
