b: With the door closed:

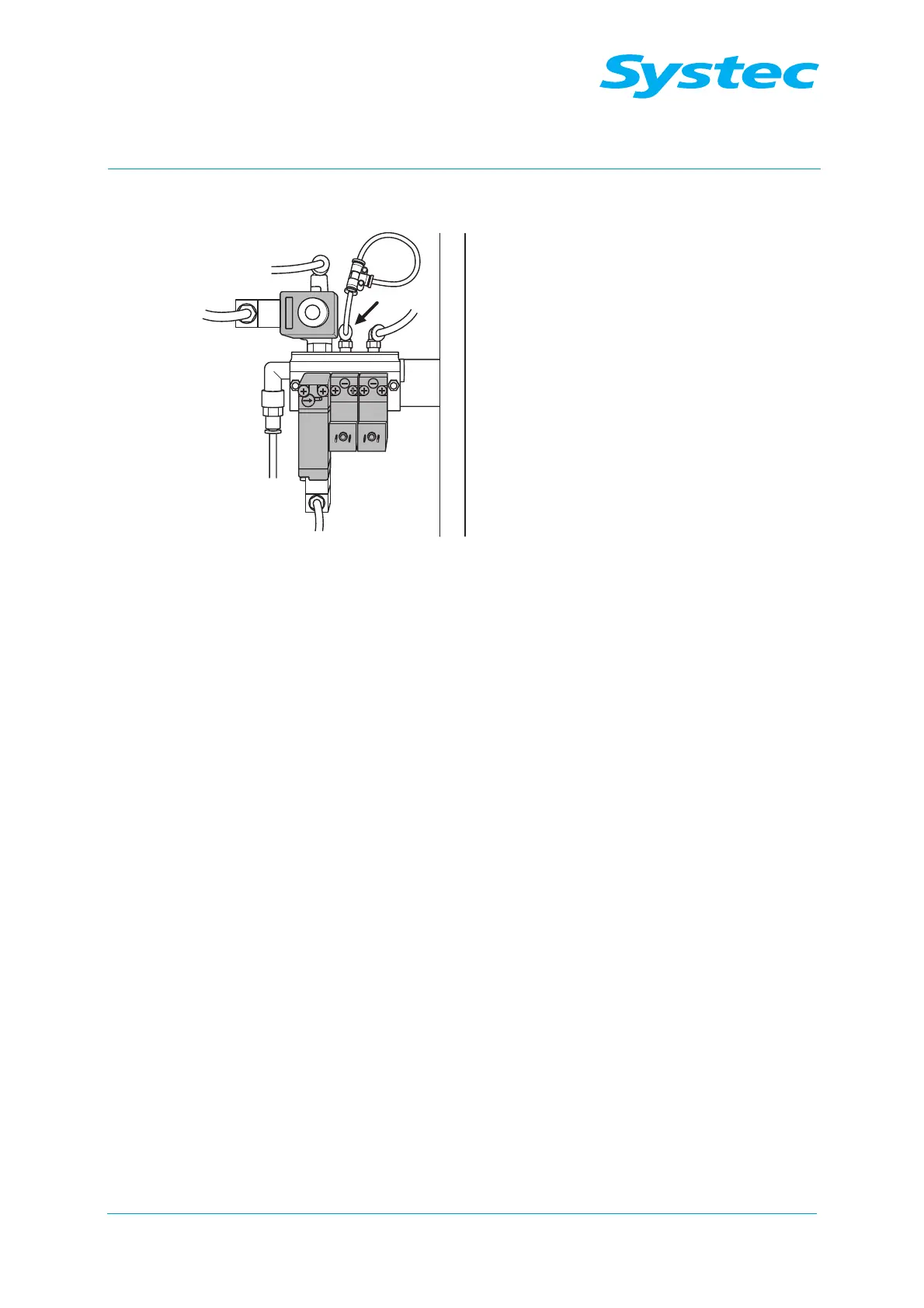

Fig. 39: Stopping the air supply behind Y10b
• Stop the air supply behind the solenoid valve (Y10b), as shown in
Fig. 39:.
• Perform the leak test again.
If pressure accumulates in one of these two cases, then at least one
cylinder of the door lock is leaking.
Devices
≥
V/D-65:
• Replace the scissor mechanism.
• Perform the leak test again.
Devices V/D-40 – 55:
• Replace the locking cylinder.
• Perform the leak test again.
If pressure accumulates in both cases, one of the three valves (Y10a,
Y10b, Y11/Y8) is leaking.
• Change each solenoid valve in succession, and perform the leak test
again after each replacement.
