• Unscrew the holder of the locking cylinder from the door.
• Loosen the reed contact.
• Remove the compressed air hoses from the push-in fittings of the
cylinder.
• If necessary, place the push-in fittings on the new cylinder.
• Insert the reed contact into the new cylinder.
• Position the cylinder.
• Insert the compressed air hoses 15 mm into the push-in fitting.
• Apply white adhesive to the thread of the piston rod.
• Fit the locking bolt.
• Mount the cylinder holder on the door.
Adjusting the reed contacts
Adjust the position of the reed contacts so that the associated contact
does not close until the locking cylinder reaches the end position.
Door seal maintenance
The door is sealed from the sterilisation chamber by the lip seal. The seal
must be kept clean to ensure correct functionality.
Service interval Annual maintenance
Have available Measuring gauge
• Check if the seal is damaged, brittle or hardened.
mm
ON
OFF
0
ABS
mm

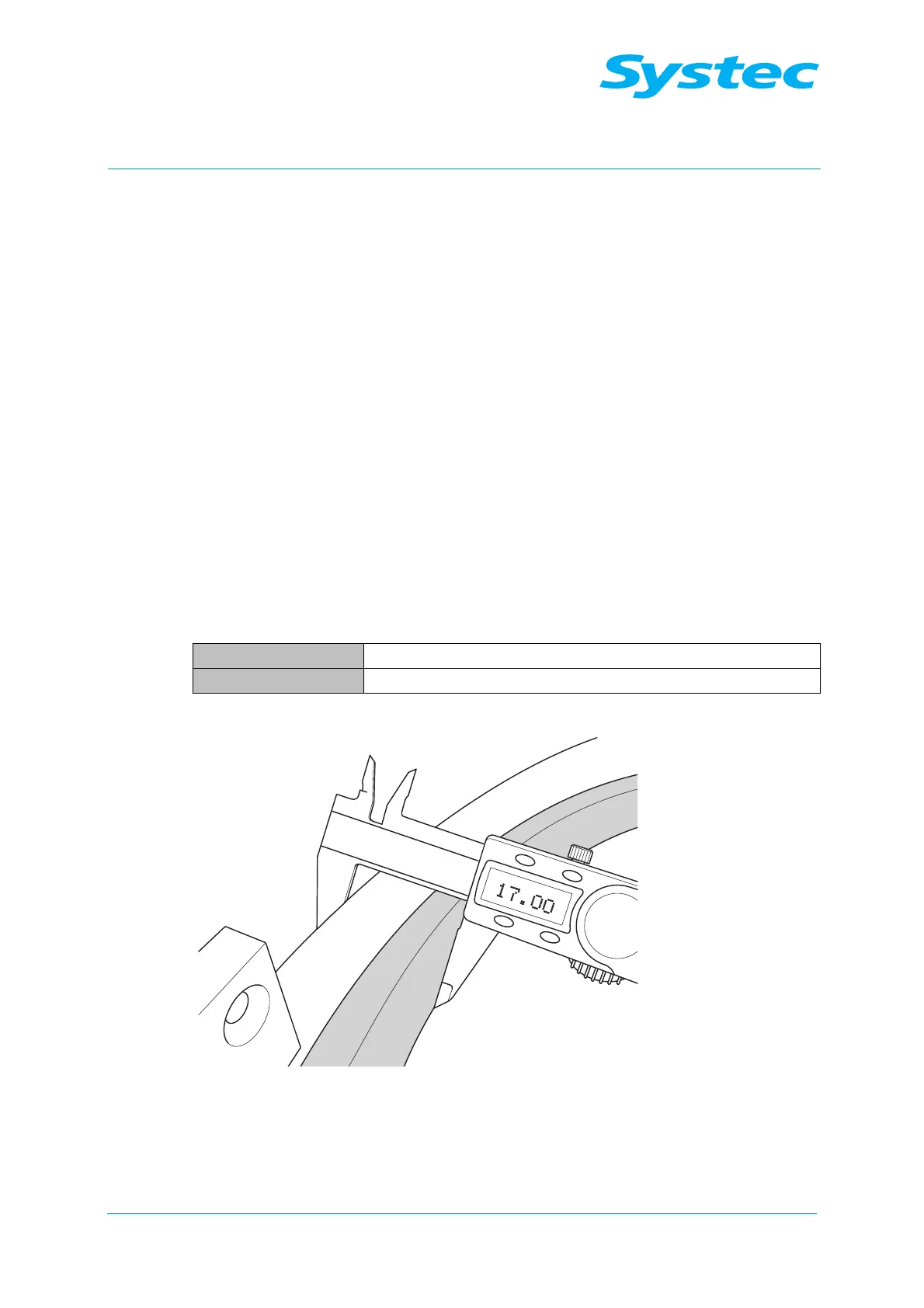

Fig. 16: Measuring the distance
