4.1.4 Extension board AES1002 (optional)
The extension board is installed in pass-through autoclaves (D series – 2D),
where it then takes over the control of the second door.
The extension board can also be installed in all autoclaves (except D-23)
in order to connect additional analogue pressure / temperature inputs or
special outputs (e.g. as a trigger for external recorders or in-house error
messages). This is connected via an additional connector on the ribbon
cable between the analogue and digital circuit boards.
Storing the gain and offset values
If an extension board is installed, the gain and offset values for
the sensors are stored on the board.
1
11
10
9
8
7
3
4
2
56
JP2
JP1
JP3
JP4
JP5
JP9
JP7 JP11
JP6
JP8
JP10
U5
U8

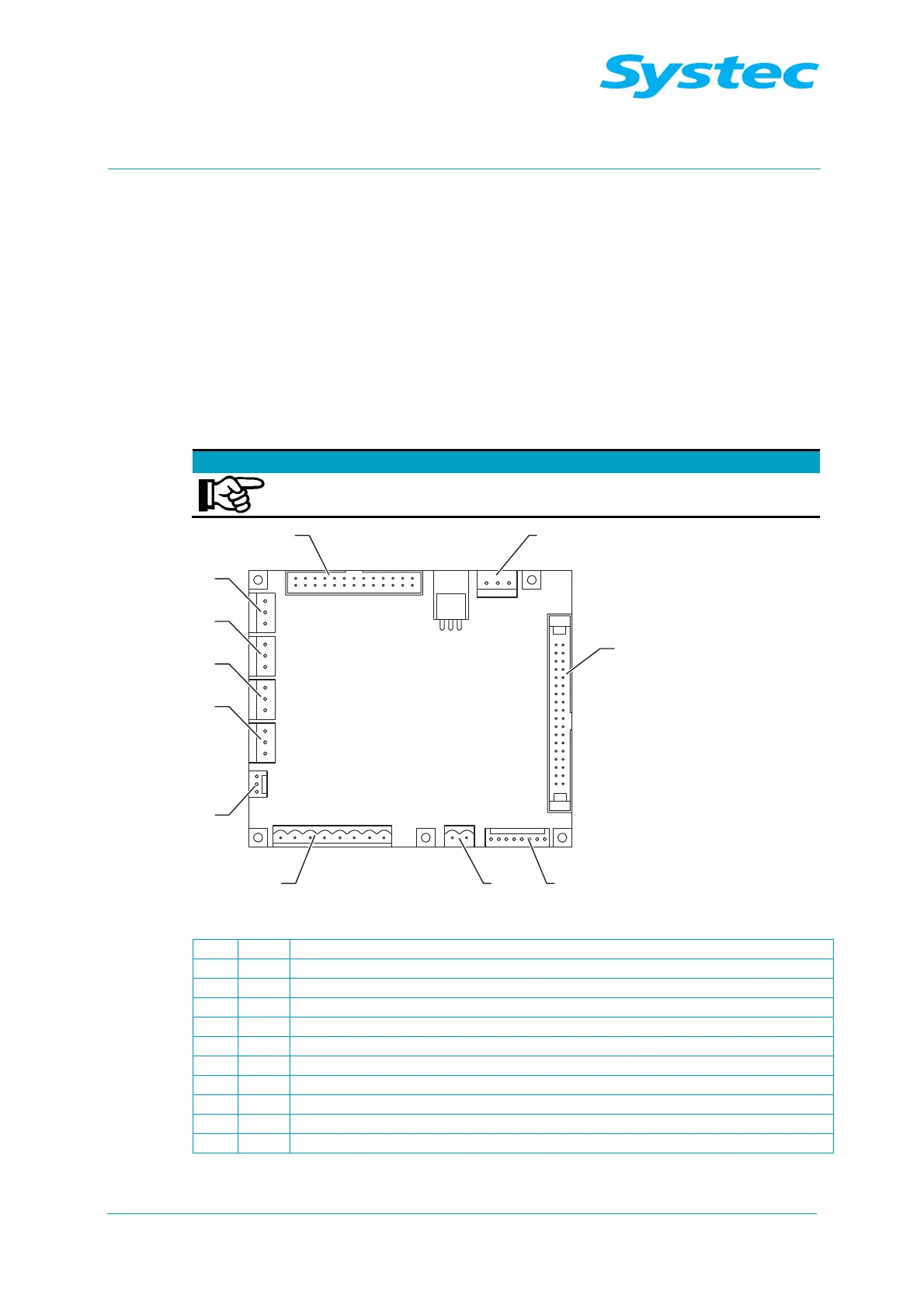

Fig. 7: AES1002 extension board
1 JP10 Test points
2 JP8 Power supply RD35A (12 V / 5 V)
3 JP6 Connection for 40-pin ribbon cable to digital circuit board DS1002
4 JP11 Digital inputs for door 2 (pass-through autoclaves)
5 JP7 24 V AC input
6 JP5 Digital outputs
7 JP9 ChamberPress2, ChamberPress3
8 JP4 ChamberTemp6
9 JP3 ChamberTemp5
10 JP2 ChamberTemp4
11 JP1 ChamberTemp3
Tab. 1: Connections on the AES1002 extension board
