2-6 Revision: 2.1

2.2 Device connections

2.2.1 VX/VE 40 – 150

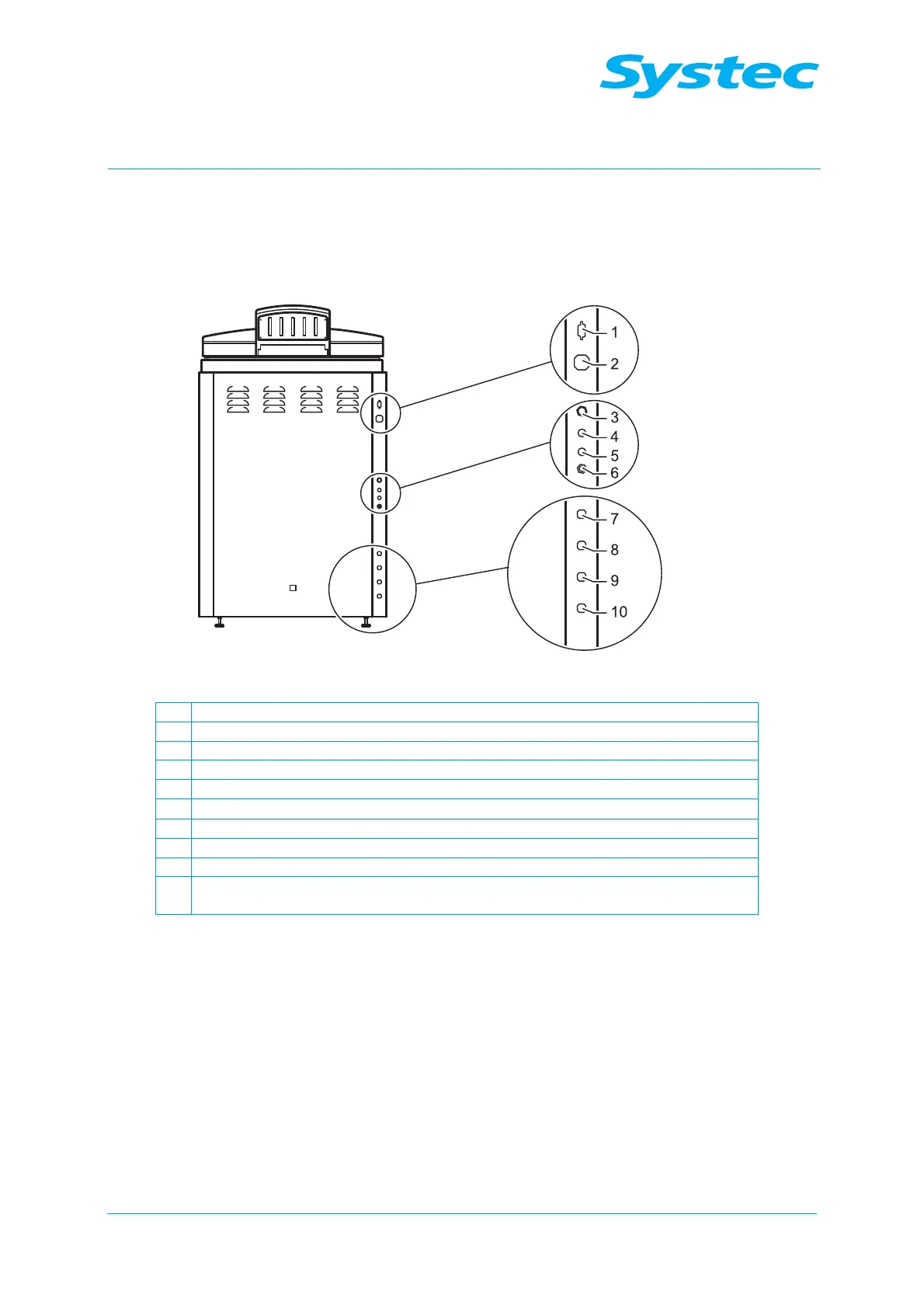

Fig. 2: Device connections for VX/VE 40 – 150

1 Serial interface (RS-232 for connection to a PC)

2 Mains connection (3 phase, 380 – 400 V + N + PE)

3 Vacuum pump fuse

4 Compressor fuse

5 Water pump fuse

6 Safety temperature limiter (STL)

7 Compressed air (7.2 mm quick release connector, optional)

8 Demineralised water (3/4") outer thread, pressure > 1 bar

9 Cooling water (3/4") outer thread, pressure > 1 bar

Waste water (3/4") outer thread (drain provided by customer temperature-

resistant to 103 °C)
