V/D S ERIES
C OMMISSIONING
Revision: 2.1 2-7
2.2.2 VB 40 – 150
1
2
3
4
5
6

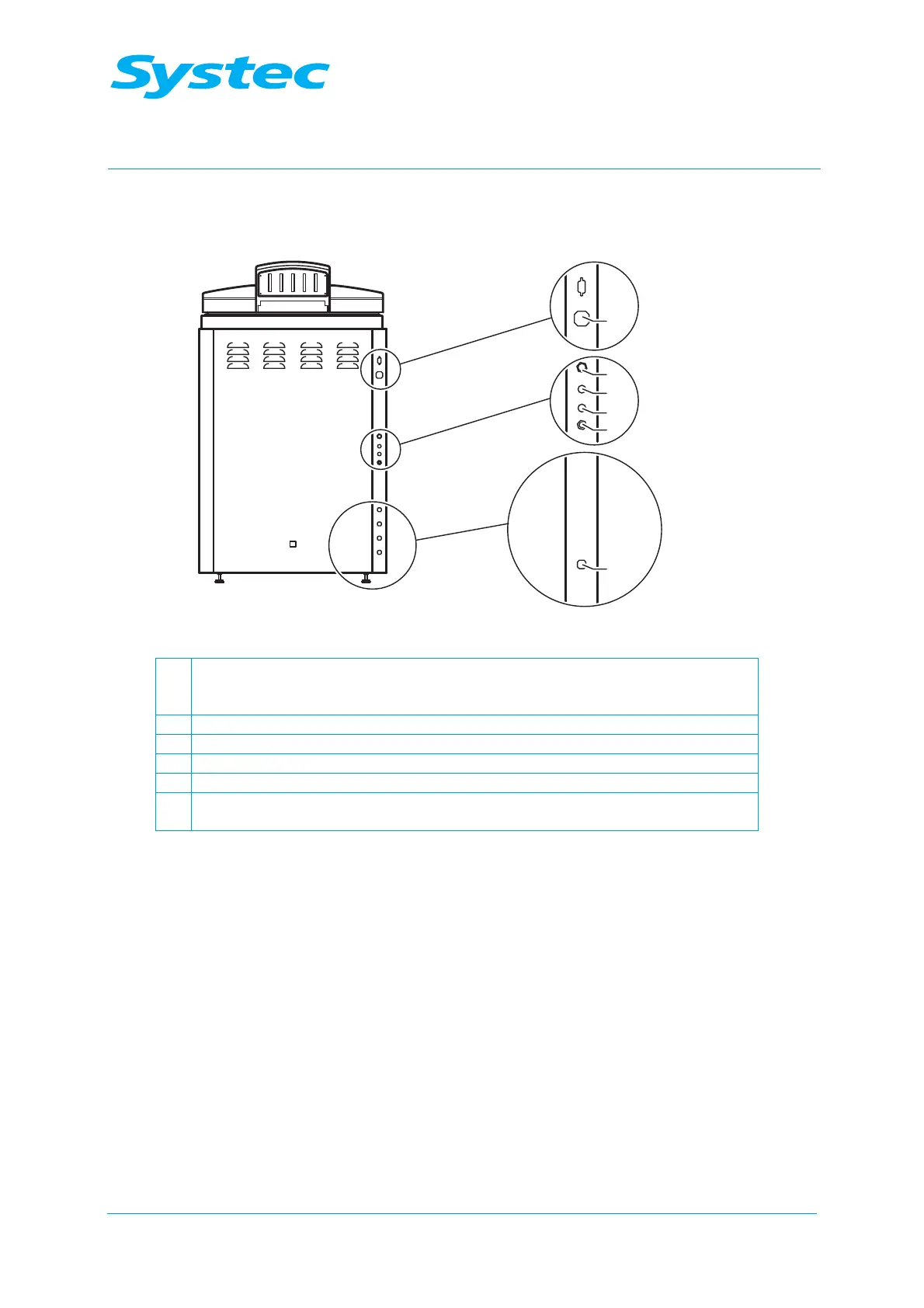

Fig. 3: Device connections for VB 40 – 150
1
Mains connection:
– VB 65 – VB 150: 3 phase, 380 – 400 V + N + PE;
– VB 40, VB 55: 230 V/50Hz
2 Inside-air fan fuse
3 Vacuum pump fuse
4 Compressor fuse
5 Safety temperature limiter (STL)
6
Waste water (3/4") outer thread (drain provided by customer temperature-
resistant to 103 °C)
