Digital inputs on the door control
The following status table provides an overview of the digital input values
when the door is open and closed:
Digital inputs Door
open
Door
in closed
position
Door
in locked end
position
Door Closed  

Door Locked  

Door Unlock
 

Tab. 9: Status table for the digital inputs when the door is open and closed
(: Off, : On)
Door seal maintenance
The door is sealed from the sterilisation chamber by the lip seal. The seal
must be kept clean to ensure correct functionality.
Service interval Annual maintenance
Have available Measuring gauge
Maintenance:
• Check if the seal is damaged, brittle or hardened.
min. 10 mm

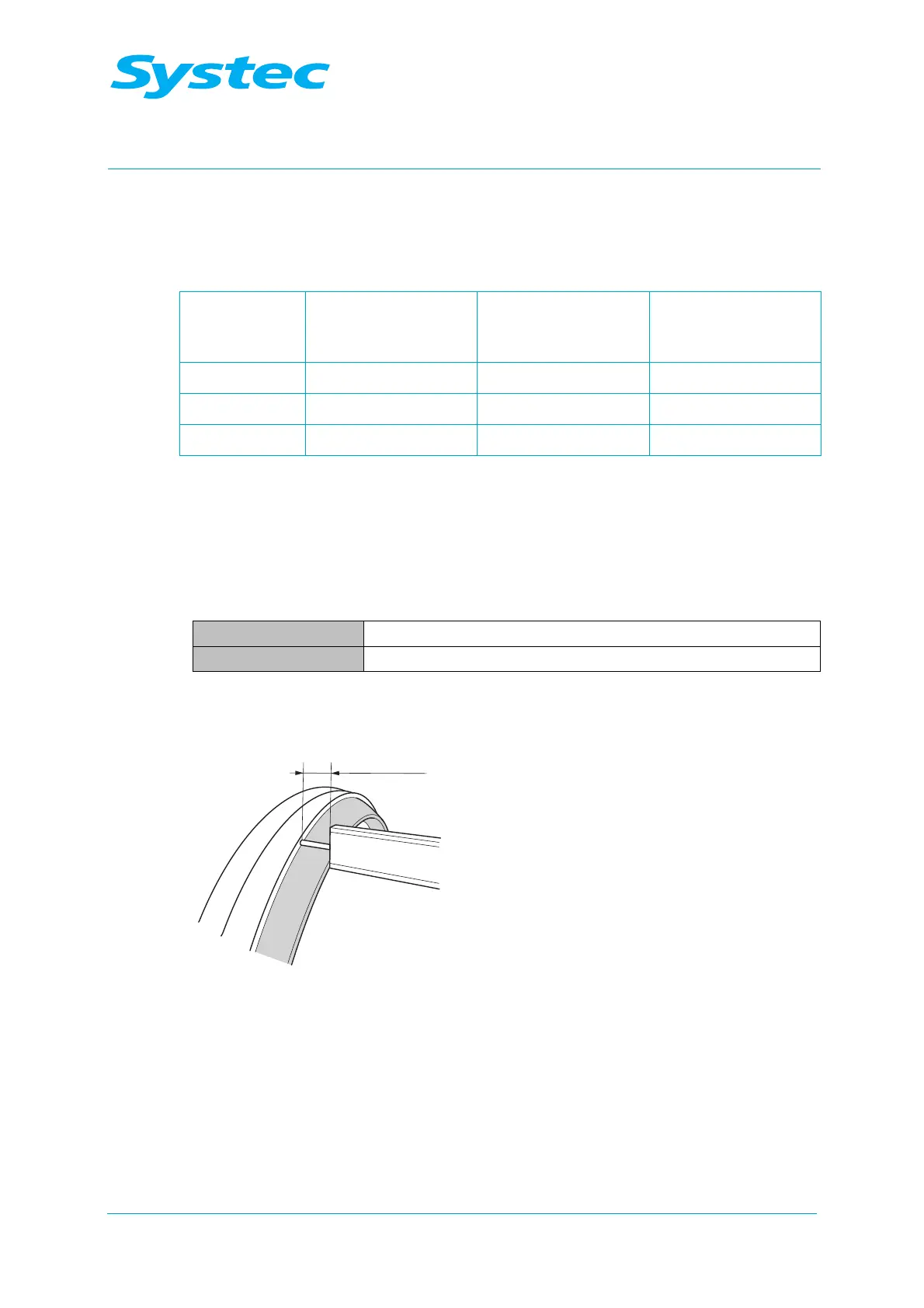

Fig. 20: Measuring the distance
• Measure the distance from the door edge to the upper edge of the lip. If
the distance is less than 10 mm, you must replace the door seal.
• Pull out the door seal.
• Insert a new door seal.
