V/D S ERIES
M ECHANICAL ASSEMBLIES
3-24 Revision: 2.1
If the emergency opening procedure detailed above does not work due to
insufficient compressed air in the system or a mechanical blocking of the
door, then proceed as follows.
• Remove the hoses on both locking cylinders (see Fig. 10: unterhalb)
and press the locking cylinders manually.
Position and function
Door hydraulics (V-65 – 150 only)
The door hydraulics are found in the door hinge on the rear of the device
and ensure that the door closes smoothly.

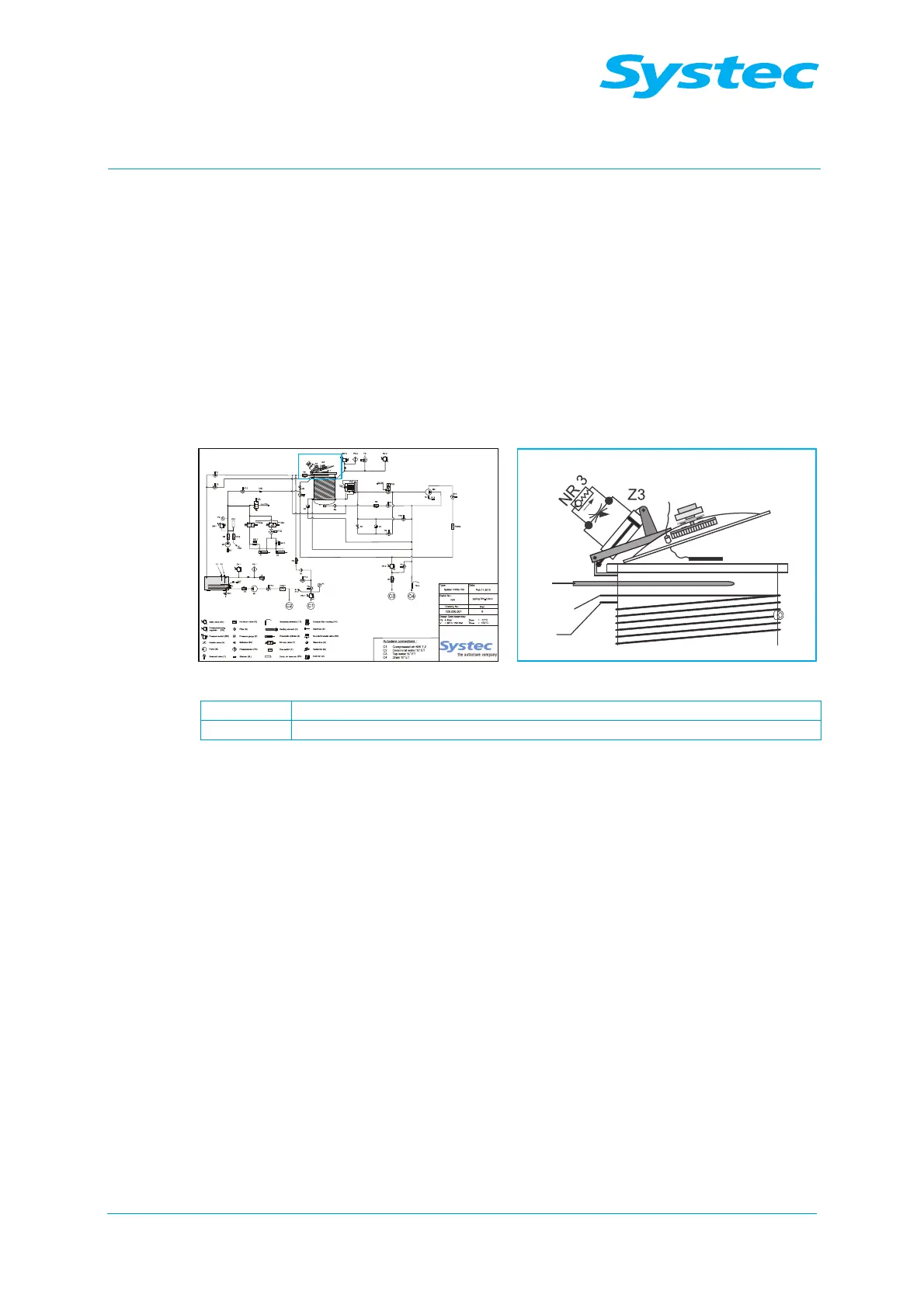

Fig. 7: Example: Position on pipe connection diagram
Z3 Hydraulic cylinder
NR3 “Close door” throttle no-return valve
The door must be pushed against the hydraulic pressure to close it.
The flow through the hydraulics can be set using the throttle no-return
valve (NR3) on the hydraulic cylinder: The more the valve is opened, the
less resistance there is to the door being closed.
