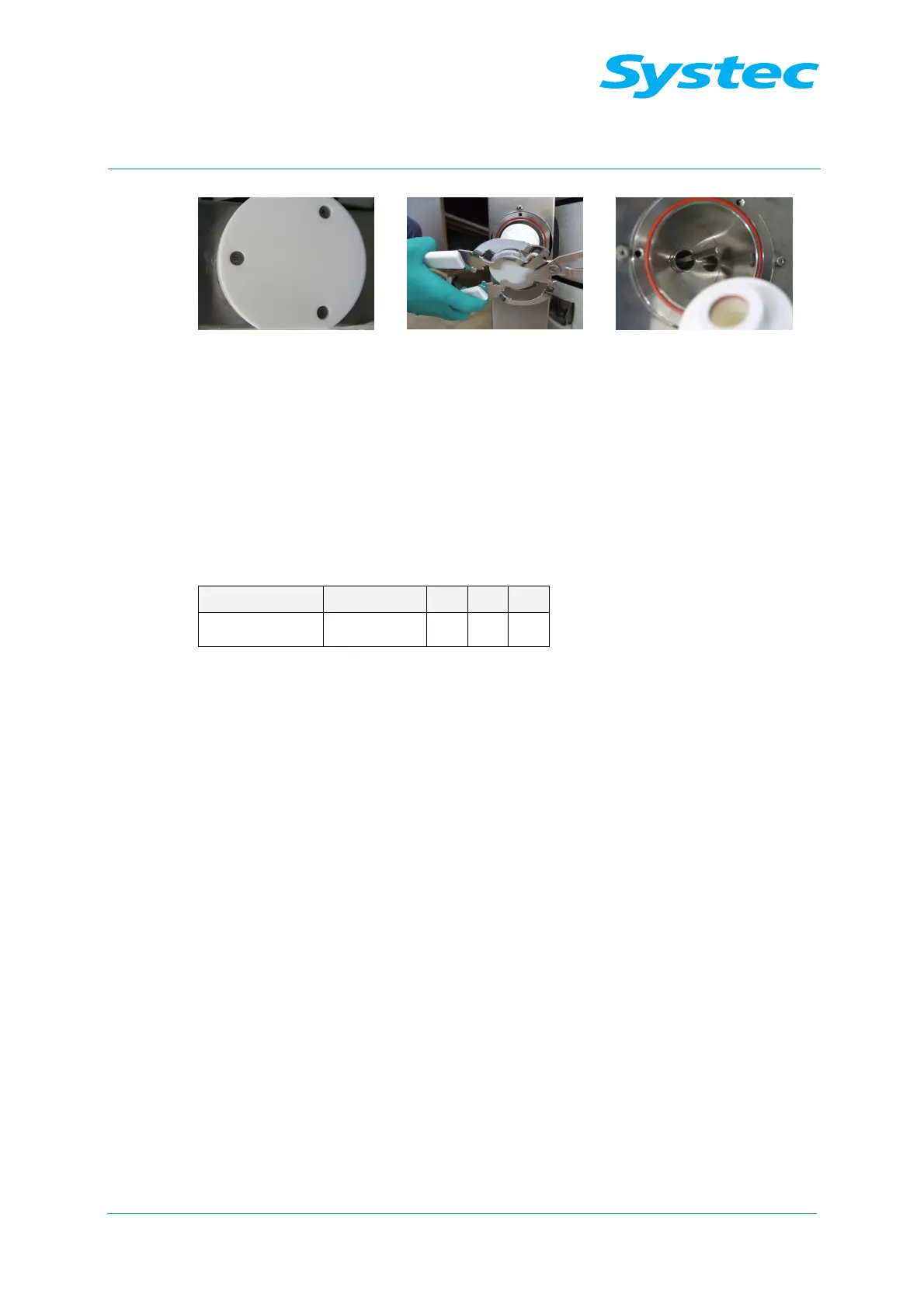

Fig. 44: Filter replacement:
Unscrewing the
screws
Fig. 45: Filter replacement:
Removing the
exhaust filter
cartridge
Fig. 46: Filter replacement:
Inserting the
new filter cartridge
Replacement on D-23
• Unscrew the exhaust filter cartridge located in the sterilisation chamber
and attach the new cartridge.
3.17 Lift
V-40 – 55 V-65 – 150 X E B
3.17.1 Position and function
The electromotive lift with swivel arm eases the loading and unloading of
the autoclave. The lifting column is fixed to the side of the autoclave.
3.17.2 Maintenance tasks
− Check that the components are seated properly and firmly.
− Carry out a function test.
