2.2.9 DB-65 – 200
1 2
3
4
5
6

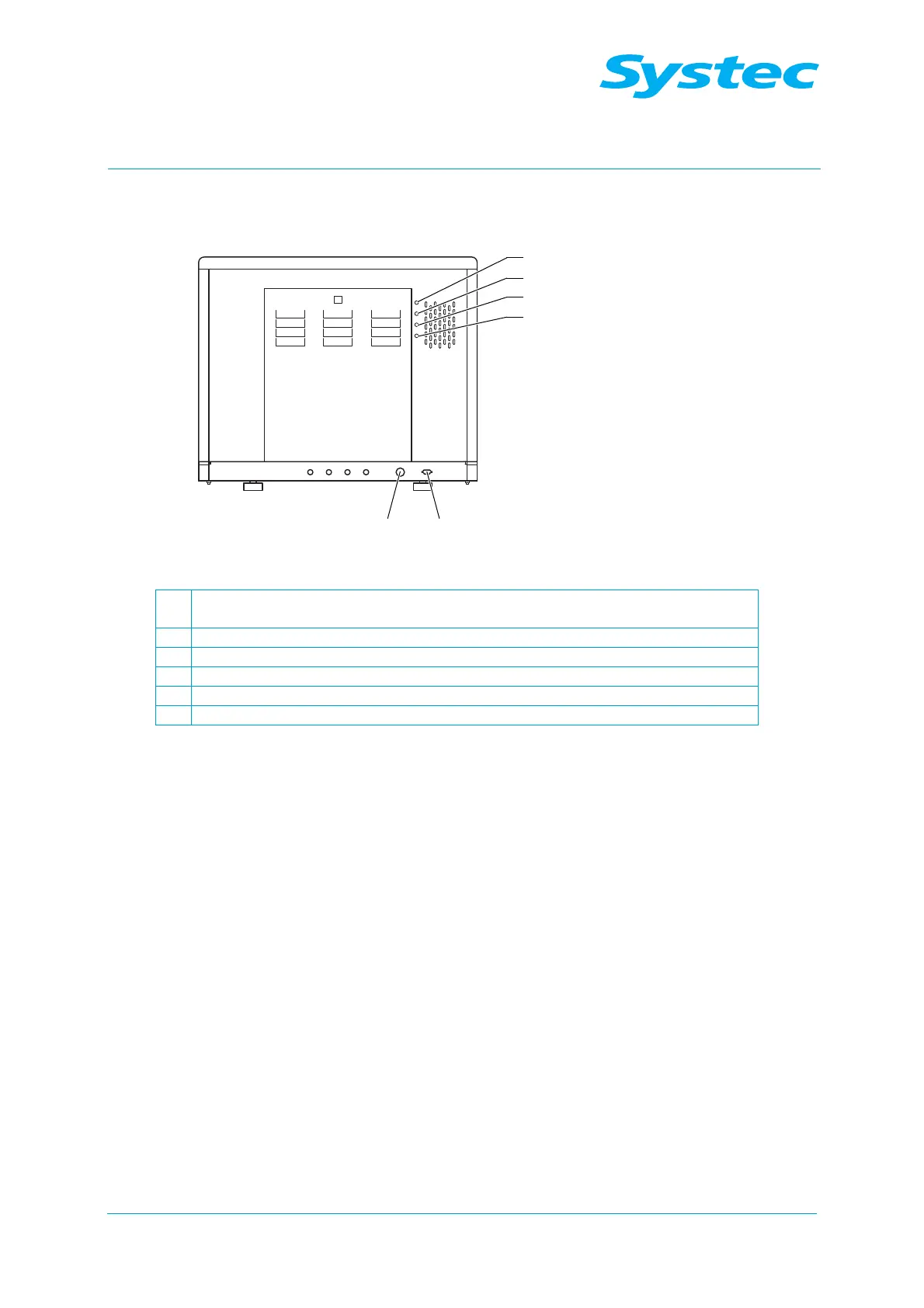

Fig. 10: Device connections on DB-65 – 200
1
Waste water (3/4") outer thread (drain provided by customer temperature-
resistant to 103 °C)
2 Mains connection (3 phase, 380 – 400 V + N + PE)
3 Safety temperature limiter (STL)
4 Vacuum pump fuse
5 Compressor fuse
6 Inside-air fan fuse
