V/D S ERIES
M ECHANICAL ASSEMBLIES
Revision: 2.1 3-35
2
1
3

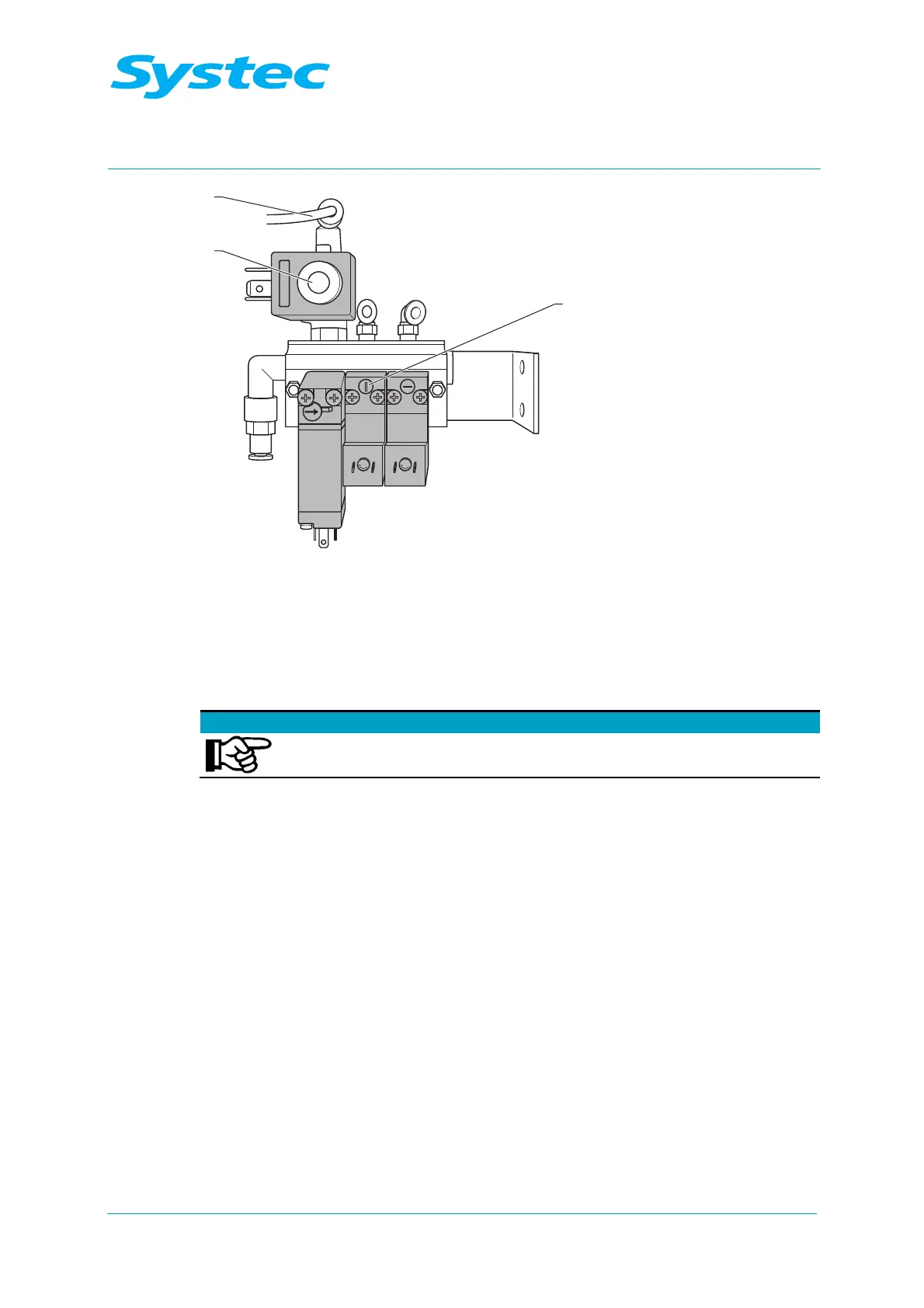

Fig. 14: Pneumatic assembly
• Remove the hose (3) from Y13 (2).
• Open the solenoid valve (1) by turning the adjusting screw clockwise
by a quarter turn.
Note
After the door is opened, turn back the adjusting screws and
reattach the hose to Y13.
