• Loosen the holding nut for the distributor baffle and remove the baffle
(see Fig. 28: unterhalb).

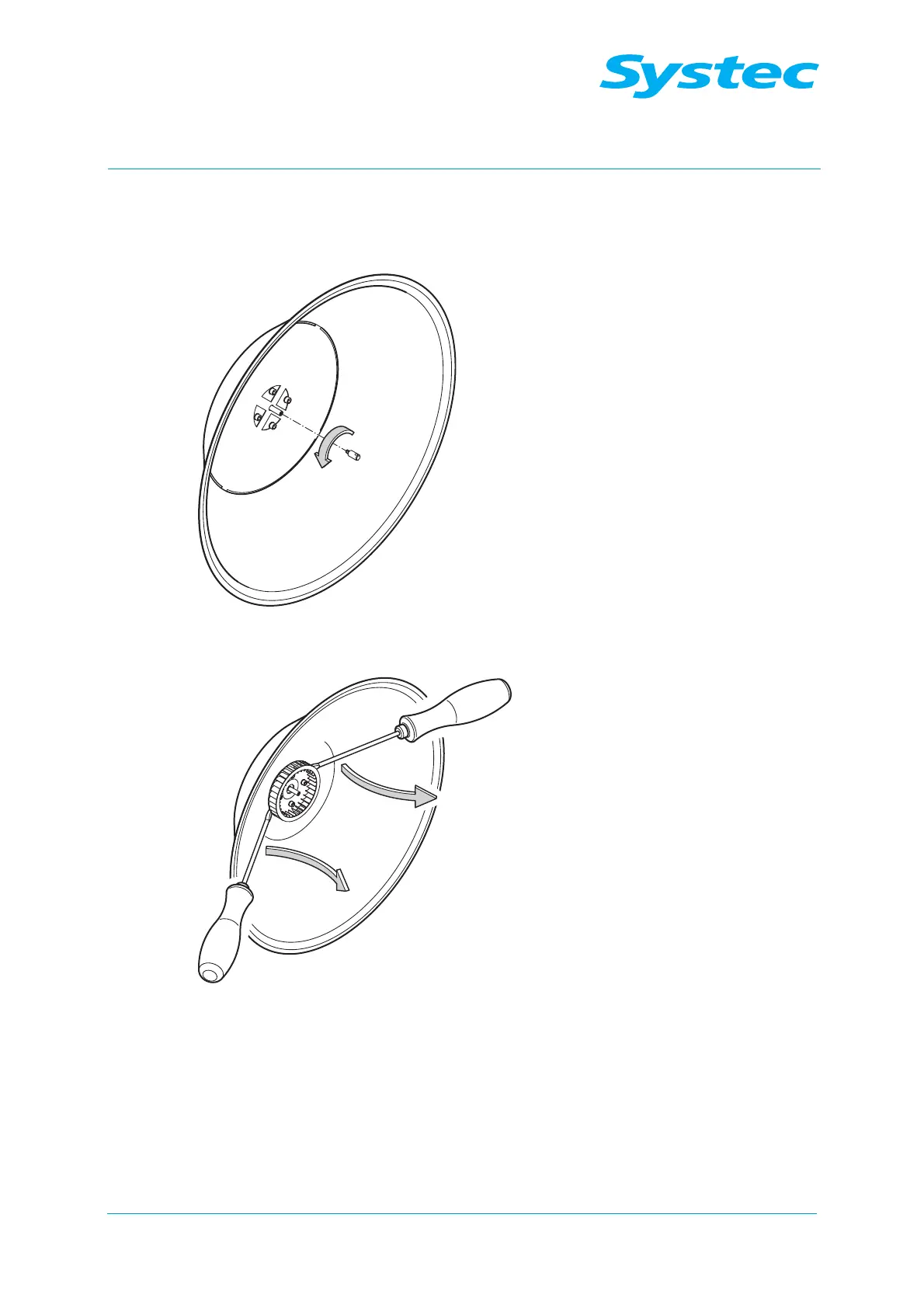

Fig. 28: Loosening the fixing nut to remove the baffle
• Remove the snap ring from the fan wheel shaft.
Fig. 29: Levering off the fan wheel
• Place both screwdrivers underneath the fan wheel and lever it off.
• Place the new fan wheel onto the shaft and push into the press fitting,
using the pipe extension if necessary.
• Attach the snap ring.
• The rest of the assembly is made in reverse order.
