Acquiring Waveforms

3-40

TDS5000 Series User Manual

Overview Control elements and resourcesTo turn Fast Acquisitions on and off

Adjust the

intensity

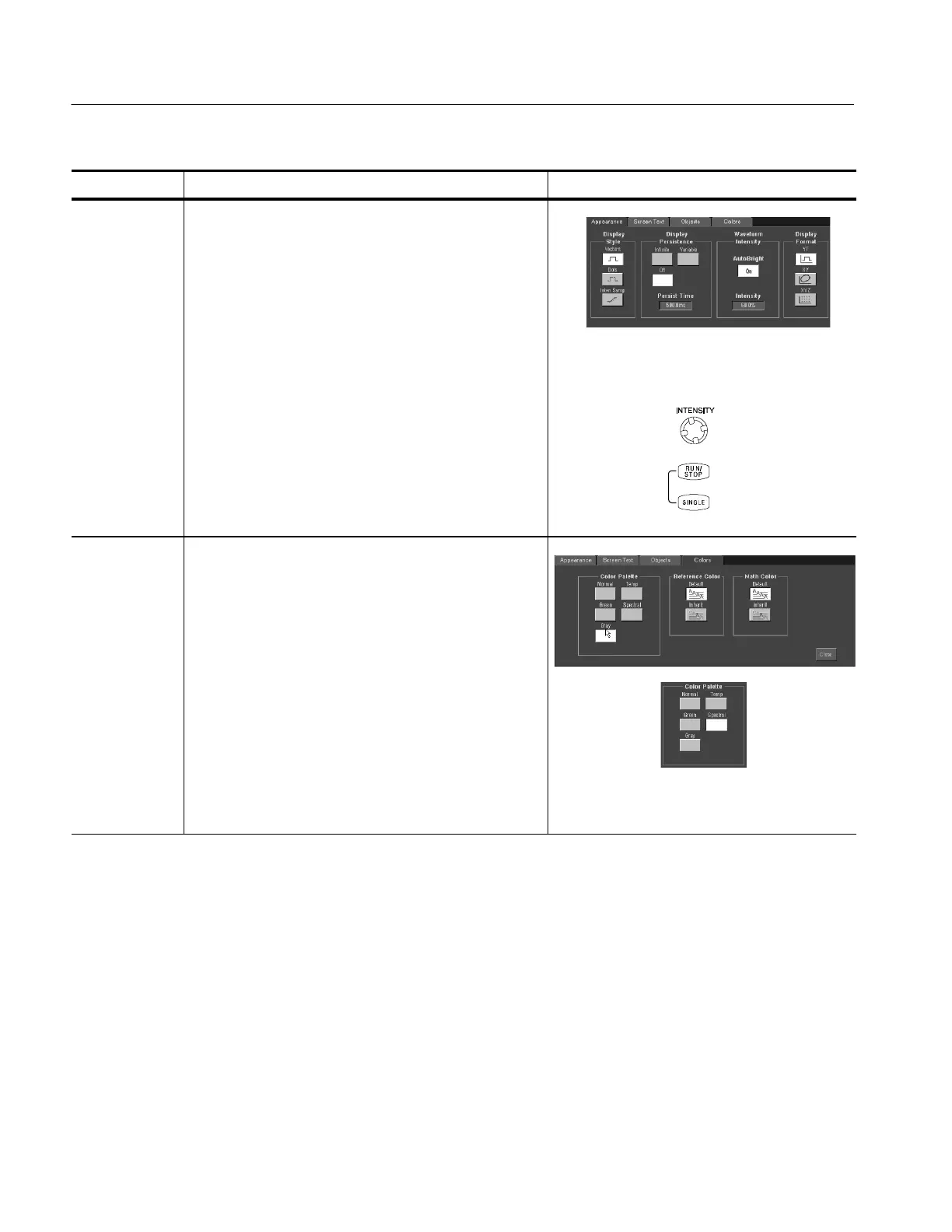

10. Select the Display Setup control window Appearance

tab.

11. Click the Waveform Intensity AutoBright button to toggle

AutoBright On and Off.

H On automatically sets the maximum intensity t o the

value of the most frequent event.

H Off creates a display like an analog oscilloscope.

The displayed brightness depends on the trigger

rate.

12. Rotate the front--panel INTENSITY knob to adjust the

intensity of displayed waveforms, or click the Intensi ty

control and enter the intensity value with the keypad or

general purpose knob.

Select the

color palette

13. Select the Display Setup control window Color tab.

14. Click the a Color Palettebutton. In Fast Acquisitionsmode,

Temp and Spectral show more detail than the other color

palettes.

For a definition of each col or palette, refer to Color

Palette on page 3--107.
