Triggering
3-58
TDS5000 Series User Manual
Overview Control elements and resourcesTo check trigger status
Trigger level on
display
3. To see the trigger level on t he waveform display, turn on
a trigger level indicator (marker). See Customizing the
Waveform Display on page 3--106 for instructions on
setting the indicator.
The trigger level indicator remains on the screen as long
as the channel providing the trigger source is displayed.
You can choose between two types of trigger level
indicators: a horizontal bar or an arrow at the right side
of the graticule.

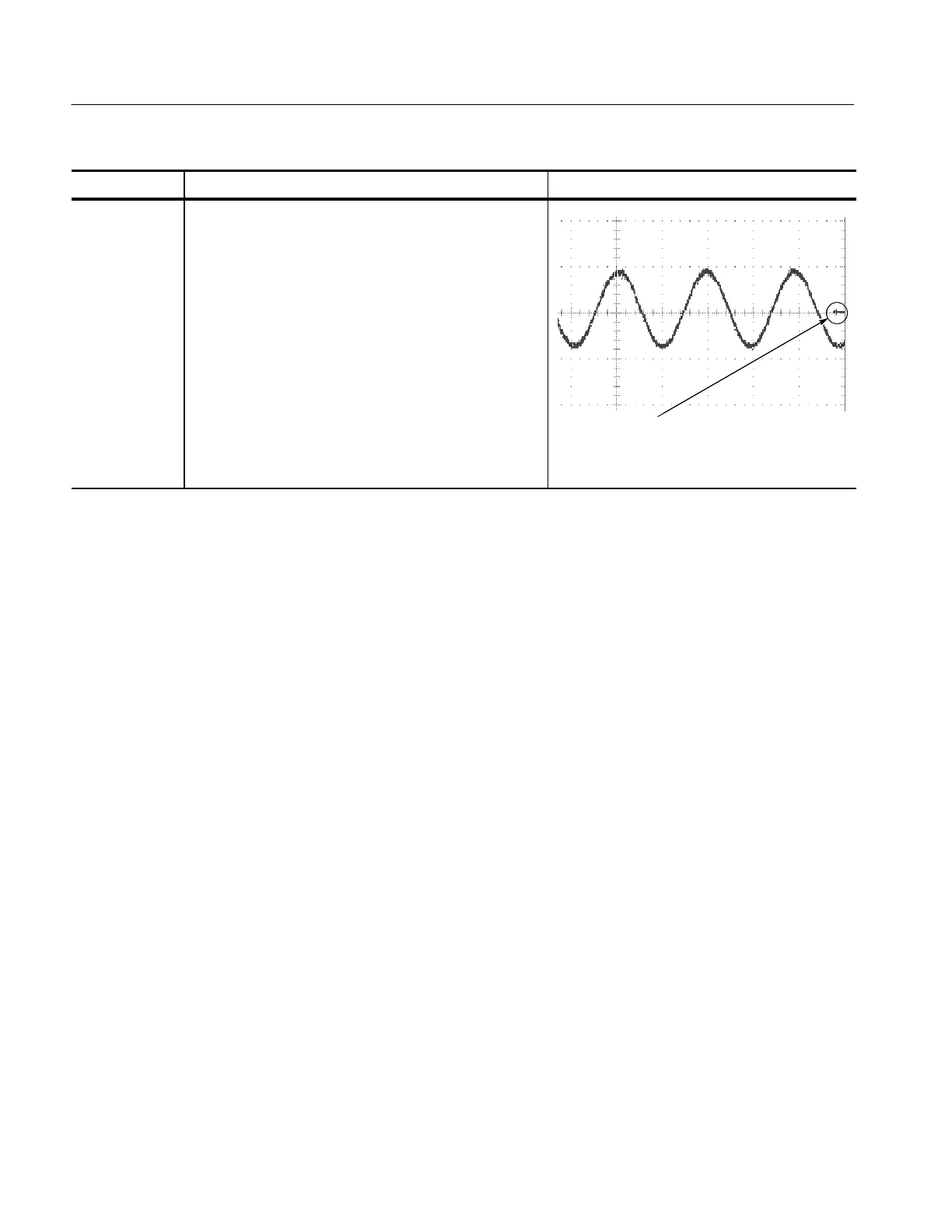

Trigger level indicator shows the trigger
level on the waveform record. You can
drag the indicator to set the trigger level.
