Displaying Waveforms
TDS5000 Series User Manual
3- 105

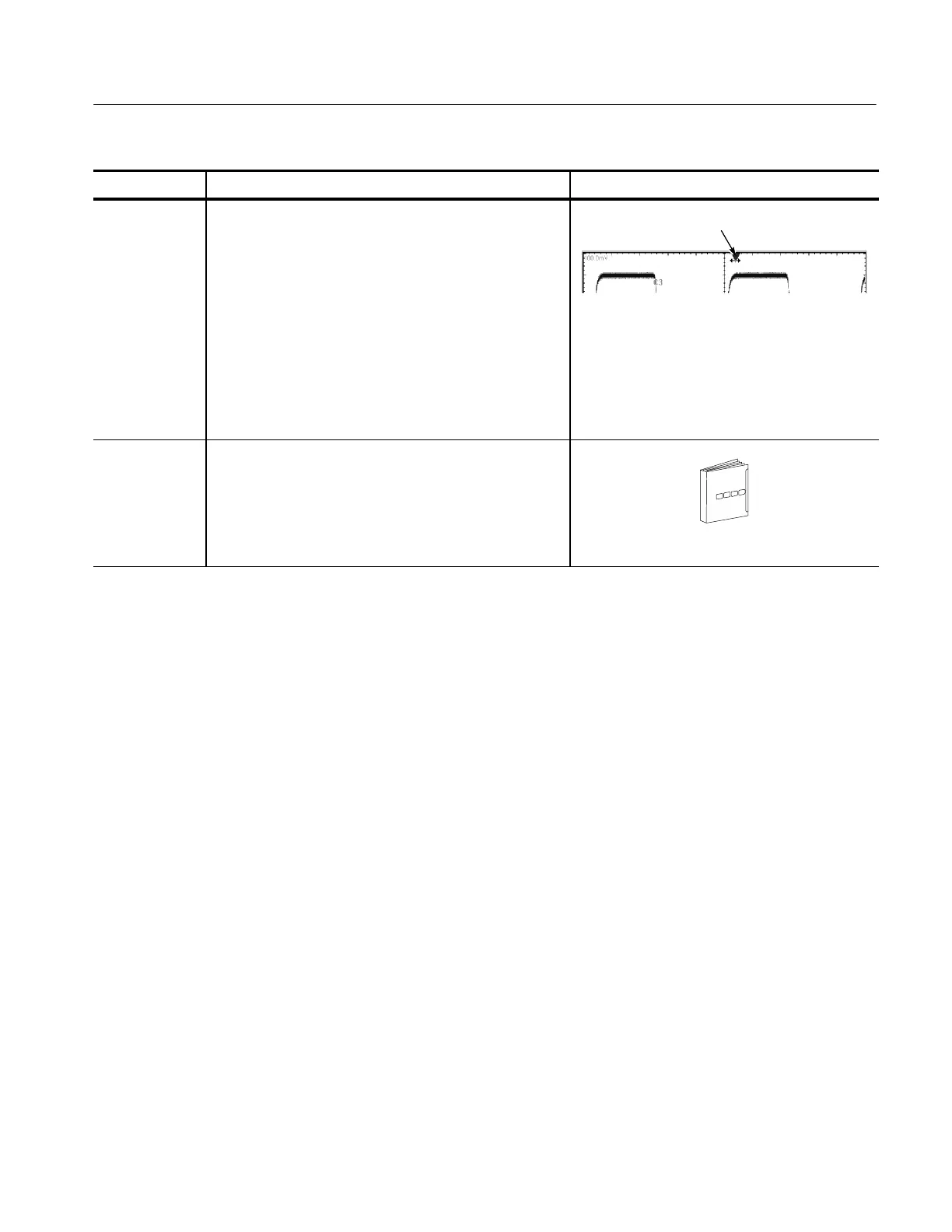

Overview Control elements and resourcesTo display waveforms in the main graticule
Adjust the
horizontal
reference
6. To adjust the point around which the waveform
expands and contracts, click on the horizontal
reference marker and drag it along the horizontal axi s
until it aligns to the point on the waveform that you
want to be stationary on screen.
Note that if horizontal delay is off, the horizontal
reference point is the same as the horizontal position.
7. Release the Horizontal Reference, and t hen adjust
the Horizontal Scale to expand or contract the
waveform.
Horizontal reference
Explore the
zoom controls
8. A subsequent procedure in this section discusses
setting up and controlling Zoom.
See Using the Zoom Feature on page 3--110.
