Displaying Waveforms
TDS5000 Series User Manual
3-113

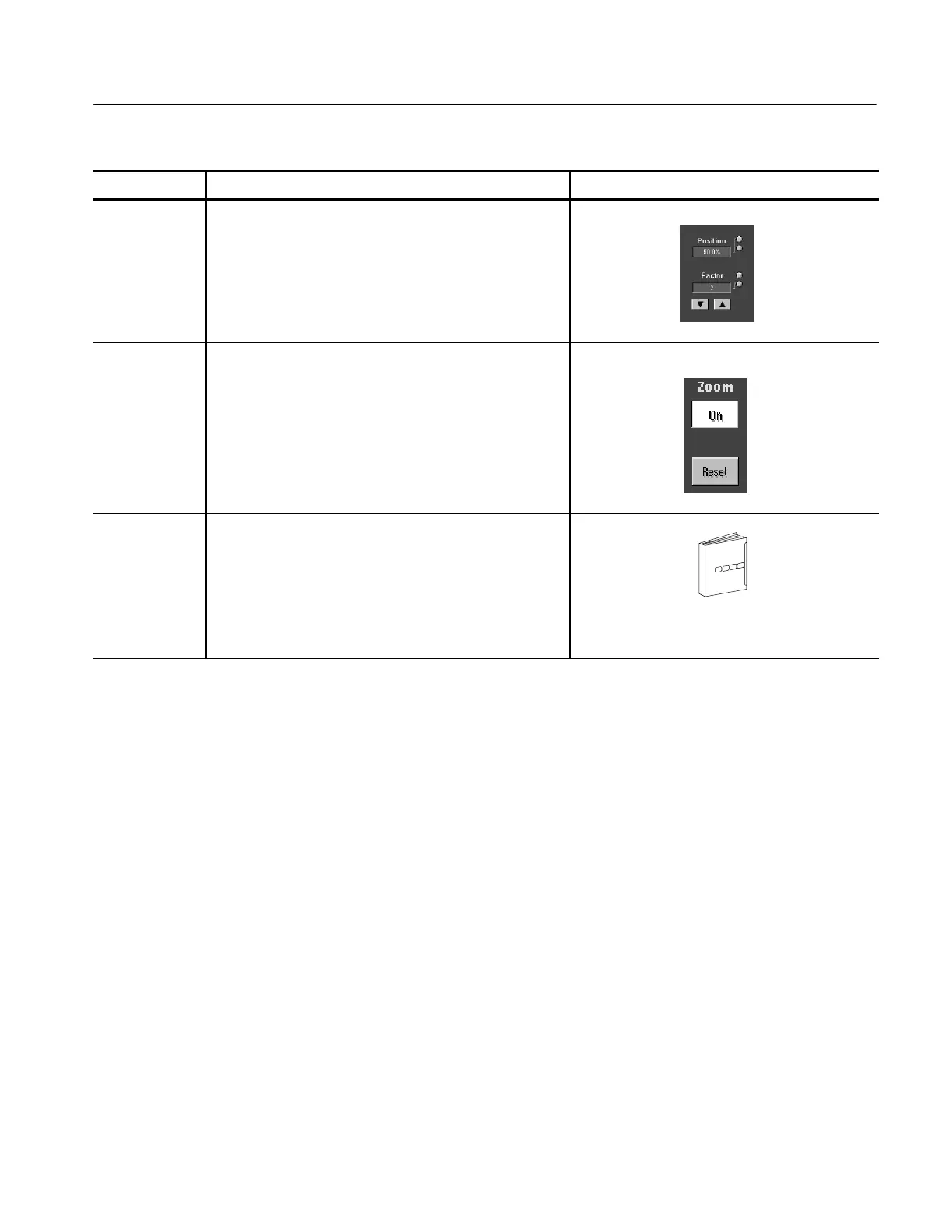

Overview Control elements and resourcesTo zoom in on waveforms
Check the
Zoom scale
and position
11. To quickly determine the magnification factor and
position of a zoomed waveform, check the readouts on
the appropriate tab (Horizontal or Vertical) of the Zoom
Setup control window.
Reset Zoom
12. To reset all Zoom settings t o their defaults, click Reset
on the appropriate tab (Horizontal or Vertical) of the
Zoom Setup control window.
For further
assistance
13. Access the online help for more assistance on using
Zoom.
See Accessing O nline Help on page 3--209 for
overview of the online help system.
