Measuring Waveforms
TDS5000 Series User Manual
3- 129

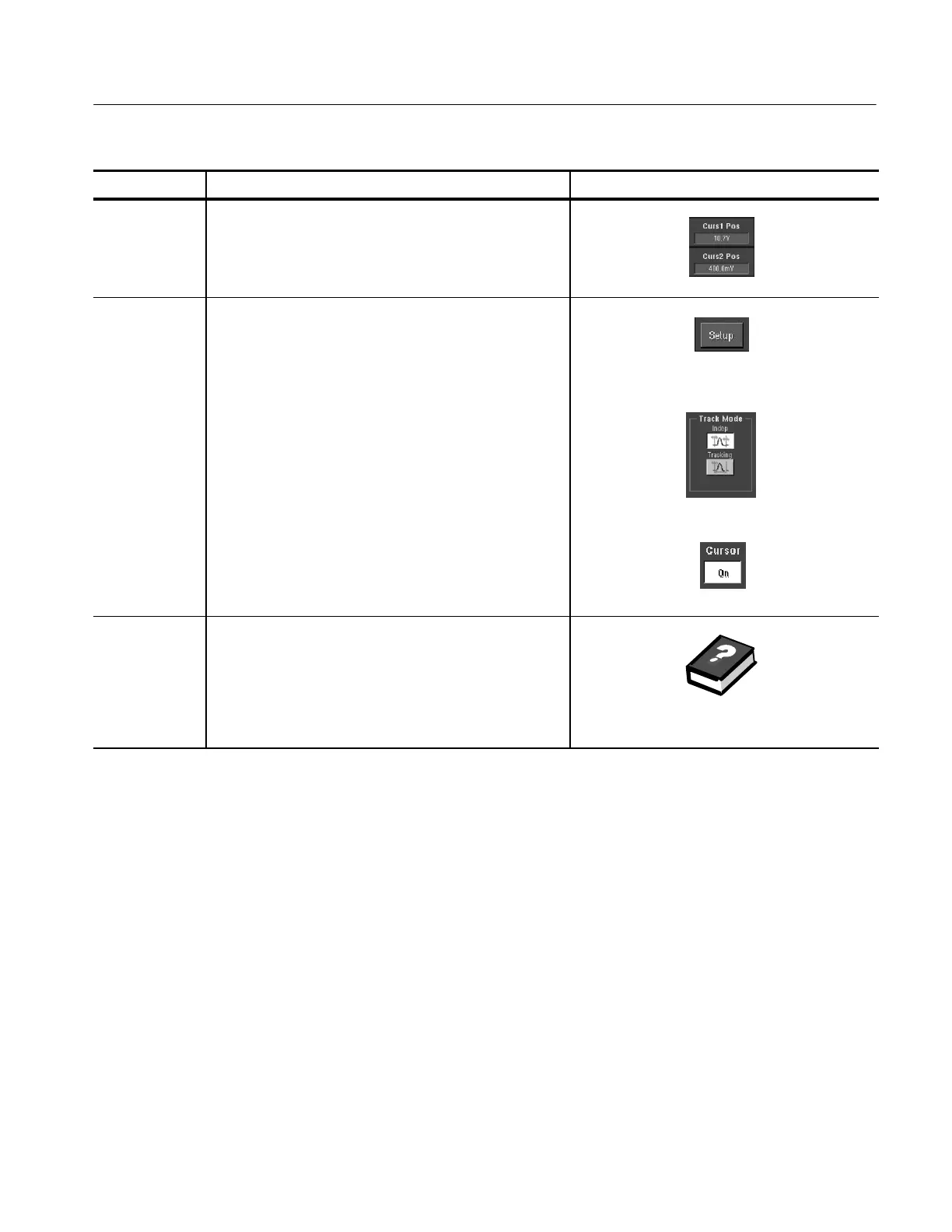

Overview Control elements and resourcesTo set the cursor sources
Change the
cursor
position
5. To change the position of a cursor, use the multipurpose
knobs, enter a numeric value in the Cursn Pos controls,
or click and drag the cursors to a new position.
Set cursor
tracking
6. To change the cursor tracking mode, cli ck Setup on the
Cursor Type Setup control window. The Cursor Setup
control window opens. (All adjustments that you can
make in the Cursor Type Setup cont rol window can also
be made in this window.)
7. Select a cursor Track Mode:
H Indep makes each cursor positionable without
regard t o the position of the other cursor.
H Tracking makes both cursors move in unison and
maintain a fixed horizontal or vertical di stance
between each other.
8. To toggle the display of the cursors, cli ck the Cursor
button.
For further
assistance
9. Access the online help for more assistance on using
cursors.
See page 3--209 to learn about using online help.
