Creating and Using Math Waveforms
TDS5000 Series User Manual
3- 177

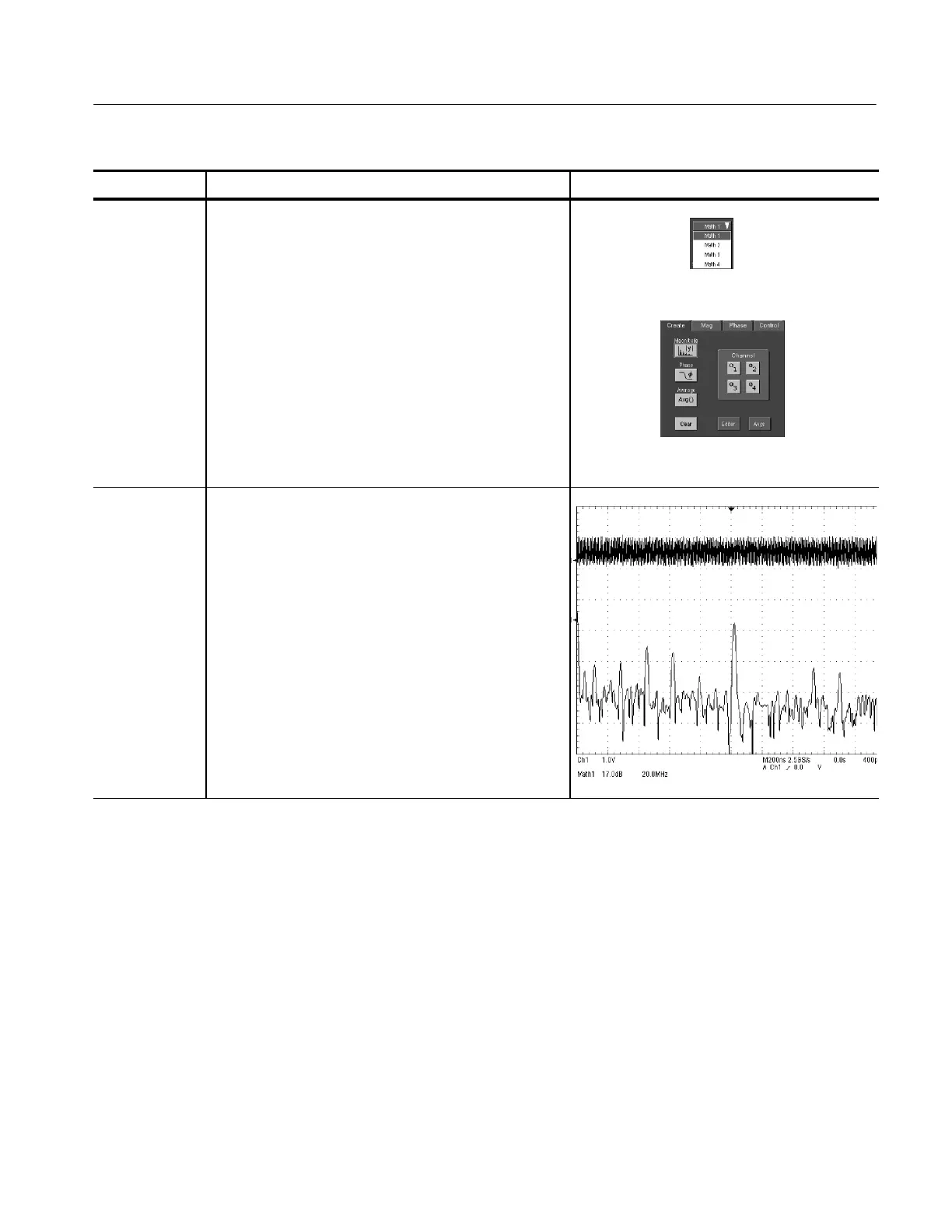

Overview Control elements and resourcesTo define a spectral math waveform
Select a
spectral
waveform
4. Click Mathn and select the math waveform that you
want to create from the li st.
5. Click Magnitude to create a magnitude spect ral
waveform or Phase to create a phase spectral
waveform. If you want an averaged spectral waveform,
click Average, and cl ick Avgs to set the number of
averages. See Apply Averaging on page 3--147.
6. Select the tab and channel num ber for the source
waveform.
Tip. If you want to redefine your waveform, click Clear
button, and repeat the above steps.
Display the
spectral
waveform
7. To display your spectral waveform, click Apply or OK.
