Other Operation Procedures

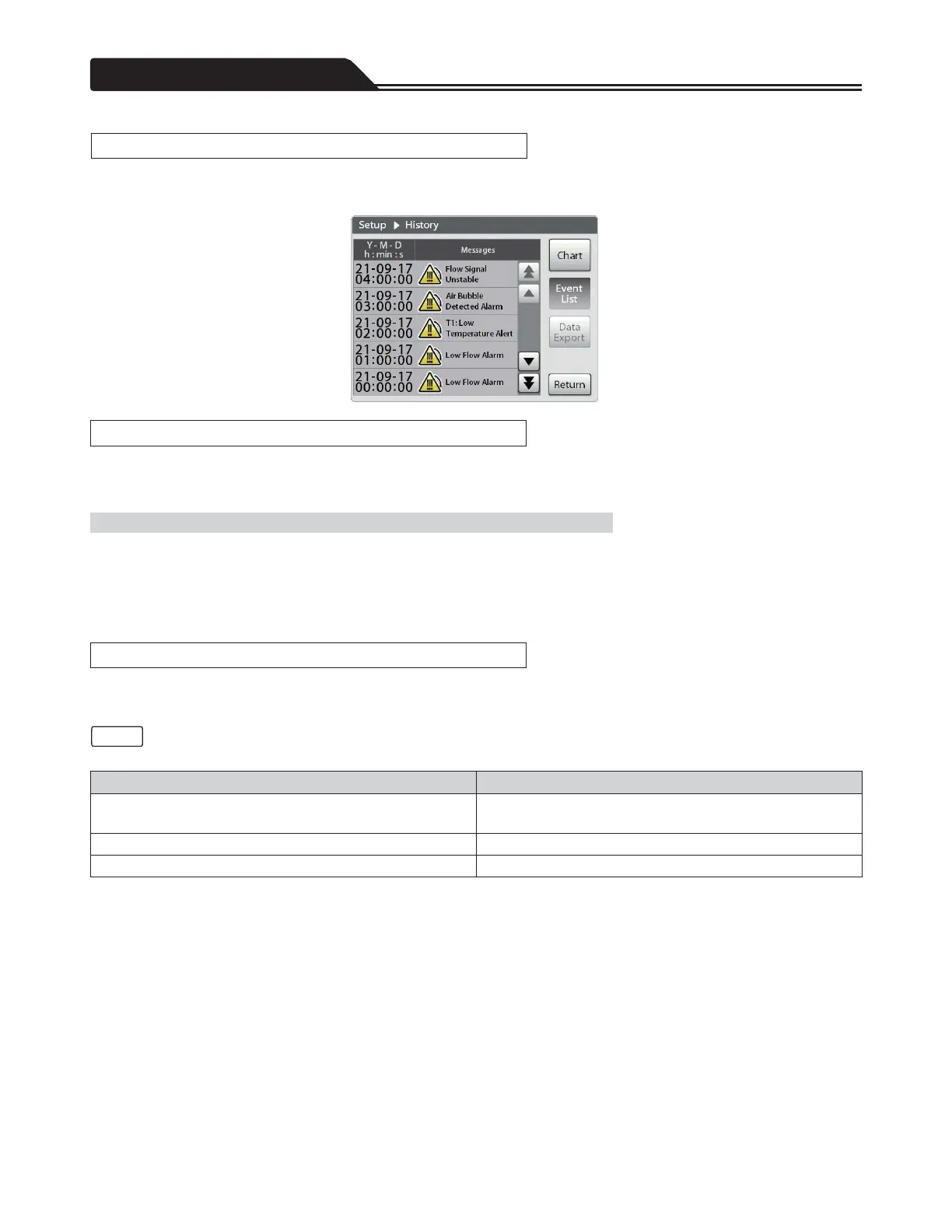

The system records the alarms and alerts displayed during operation. The event list displays those events with date and time.
For details about the procedures, refer to “Event List” (page 96).
The information recorded in the history can be exported as a log file.
For details about the procedures, refer to “Output data to USB memory” (page 96).
LAN Communication
During circulation, motor speed, flow, pressure, temperature, and event information can be transmitted to network equipment
such as PCs. To use this function, connect the Controller to network equipment with a LAN cable, and turn the setting of the LAN
communication function of the Controller on. For details about how to set up the LAN communication function, refer to “Setting
LAN” (page 110).
A direct connection between the Controller and network equipment with a LAN cable is recommended. Contact Terumo’s service
representative regarding a connection through a switching hub.
• The pin assignment of the Controller side is fixed at MDI-X. Select cables in accordance with the connected equipment.
Connected equipment Usable cable
Equipment with AutoMDI/MDI-X function Straight cable (both ends: TIA/EIA-568-A)
Cross cable (one side: TIA/EIA-568-B)
MDI equipment Straight cable
MDI-X equipment Cross cable
