Operation Procedure
When using the air bubble detector function, confirm that the setup of the air bubble detector function is on. (Refer to “Confirming
the Setup” (page 48).)

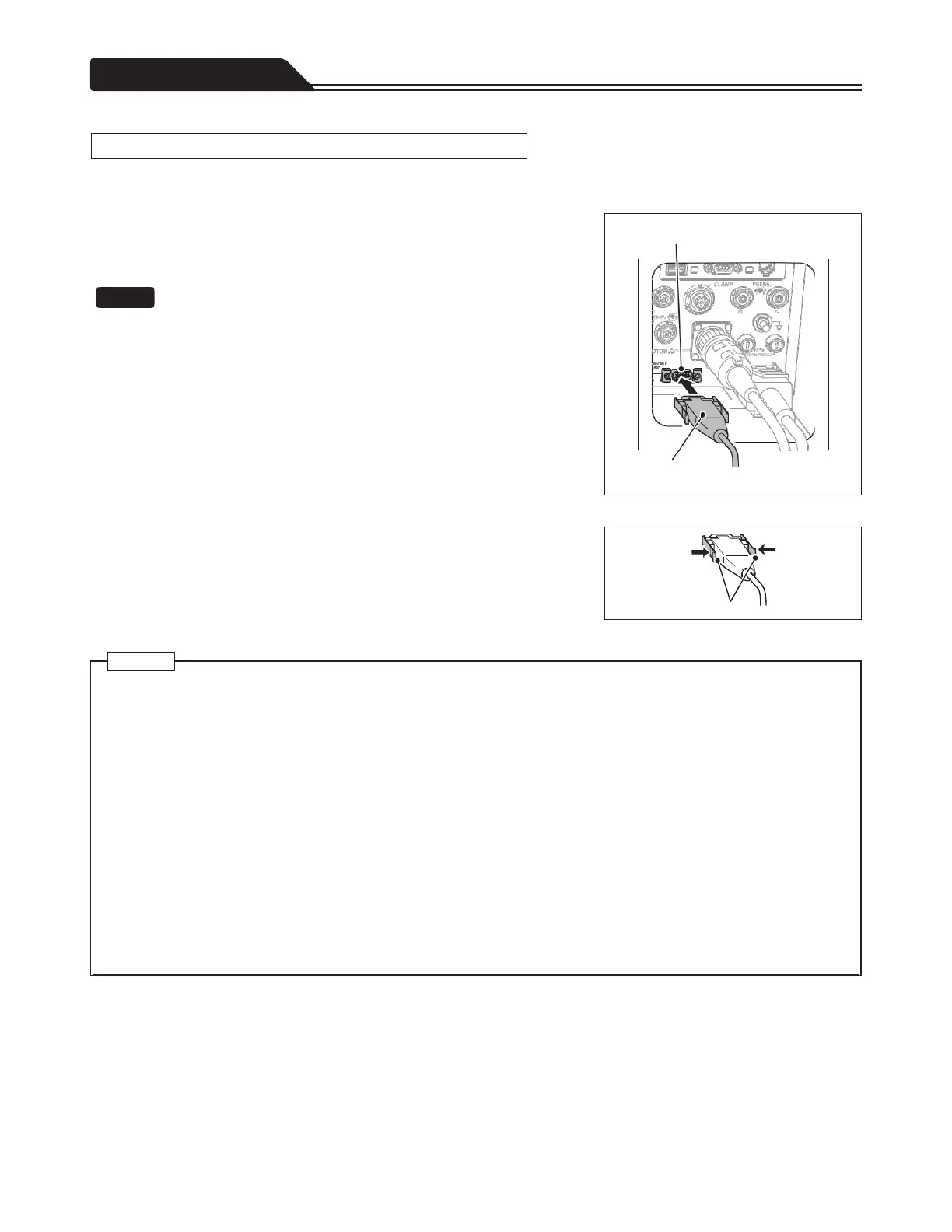

1. Insert the plug of the ABD/Flow Sensor into the ABD/Flow
sensor connector on the rear panel until you hear a click.
(Figure 1-13)
• The ABD/Flow Sensor will not disconnect even if you pull it toward you while
holding the plug of the ABD/Flow Sensor.
Figure 1-13
When removing the plug, pull it out straight while holding the plug latches of
the ABD/Flow Sensor. (Figure 1-14)
Figure 1-14
36
Connecting to ABD/Flow Sensor
Check
• If there is physical damage, such as a crack, to the detection window of the ABD/Flow Sensor, do not use the ABD/Flow
Sensor.
• When attaching or detaching the Drive Motor or the ABD/Flow Sensor to or from the Controller, turn off the power. It may
cause a failure for the Controller.
• Before attaching the Drive Motor, the ABD/Flow Sensor, the Temperature Sensor Cable, the Pressure Sensor Cable, the
Fast Clamp, the LAN cable and the CDI Communication Cable to the Controller, ensure the connectors and plugs are not
damaged. If a connector pin is damaged or twisted, replace the system with a spare one and do not use it.
• Do not touch the inside of the drive motor connector, the ABD/Flow sensor connector at the back of the Controller. Be sure
to set up and operate within specified environmental humidity levels. (Including attaching or detaching connector.) It may
cause static electricity resulting in failure or malfunction.
• Since drug solution may cause a short circuit, ensure that the connecting sections (the Drive Motor, the ABD/Flow Sensor,
the Pressure Sensor Cable, the Temperature Sensor, the Fast Clamp, the LAN cable and the CDI Communication Cable)
are not wet when connecting plugs to connectors. If moisture is present, ensure that the power is turned off and the AC
power cable is removed from both this system and grounded AC power source, and then thoroughly wipe with a dry
soft cloth. Since this system does not have a waterproof structure, drug solution and moisture may affect the electrical
components inside, and cause a malfunction.
Cautions
ABD/Flow sensor connector
Plug
Latches
To Next Page
