Terumo CAPIOX EBS Circuit with X coating - Connecting to Drive Motor

Operation Procedure
 Using the CAPIOX EBS Circuit Holder
1. Remove the pole clamp attached to the Drive Motor with a
screwdriver (+). (Figure 1-7)
Screws are used in step 2.

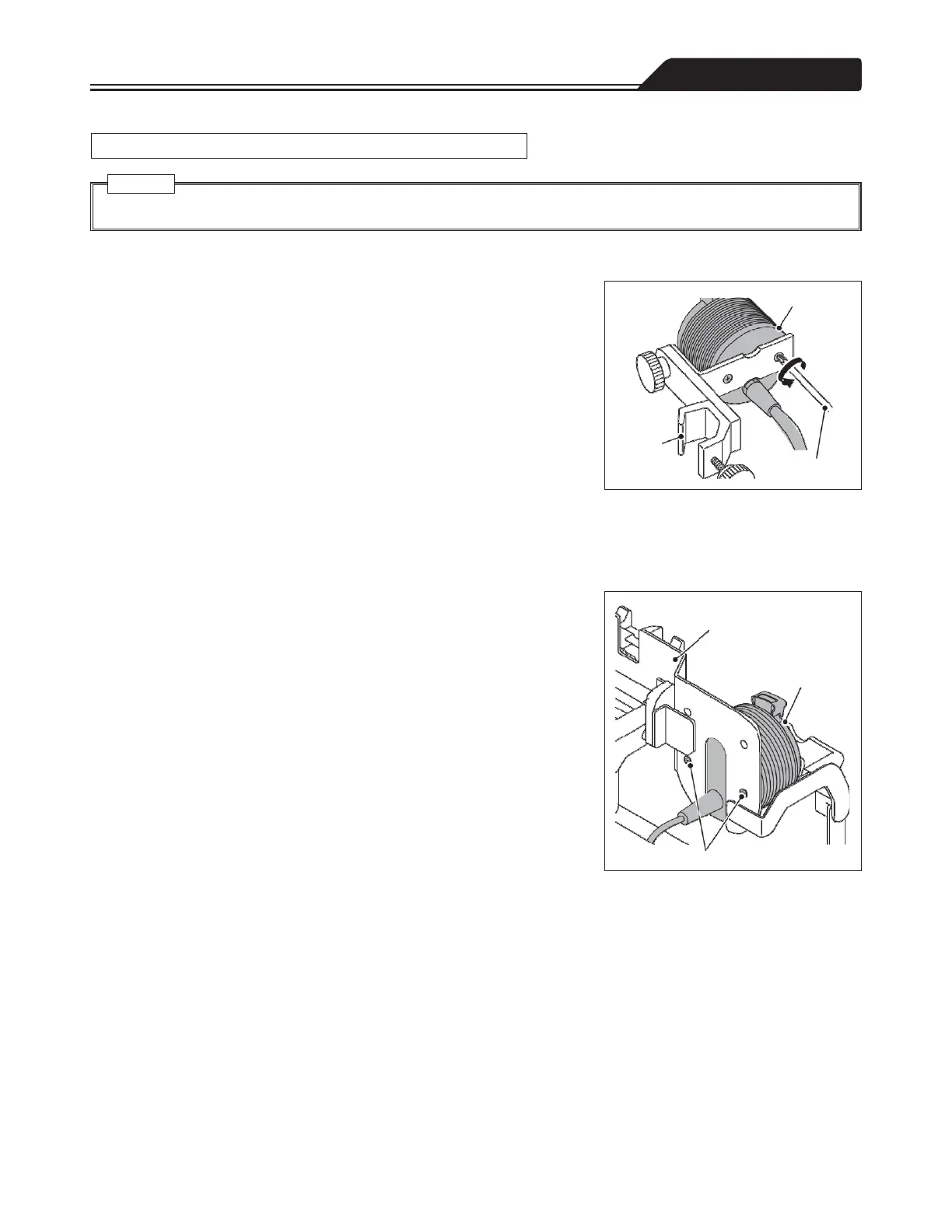

Figure 1-7
2. Attach the Drive Motor to the CAPIOX EBS Circuit Holder.
By using the screws removed in step 1, attach the Drive Motor with the
screwdriver (+).
Attach the Drive Motor in the lower screw holes. (Figure 1-8)
Figure 1-8
33
Connecting to Drive Motor
• Do not use this system with products other than those listed in “Optional Products” (refer to page 13).
Caution
Screwdriver (+)
Pole
clam
p
Loosen
Drive Motor
CAPIOX EBS Circuit Holder
Drive Motor
Lower screw holes
