Terumo CAPIOX EBS Circuit with X coating - Connecting to Temperature Sensor Cable; Connecting to Pressure Sensor Cable

Operation Procedure
This section describes the step for using the temperature measuring function.
When using the temperature measuring function, confirm that the setup of the temperature measuring function of the channel to be
used is on. (Refer to “Confirming the Setup” (page 48).)
1. Align the plug of the temperature sensor with the slot of the
temperature sensor connector on the rear panel, and insert
the plug into the connector (T1 or T2). (Figure 1-15)
Do not forcefully insert the plug.

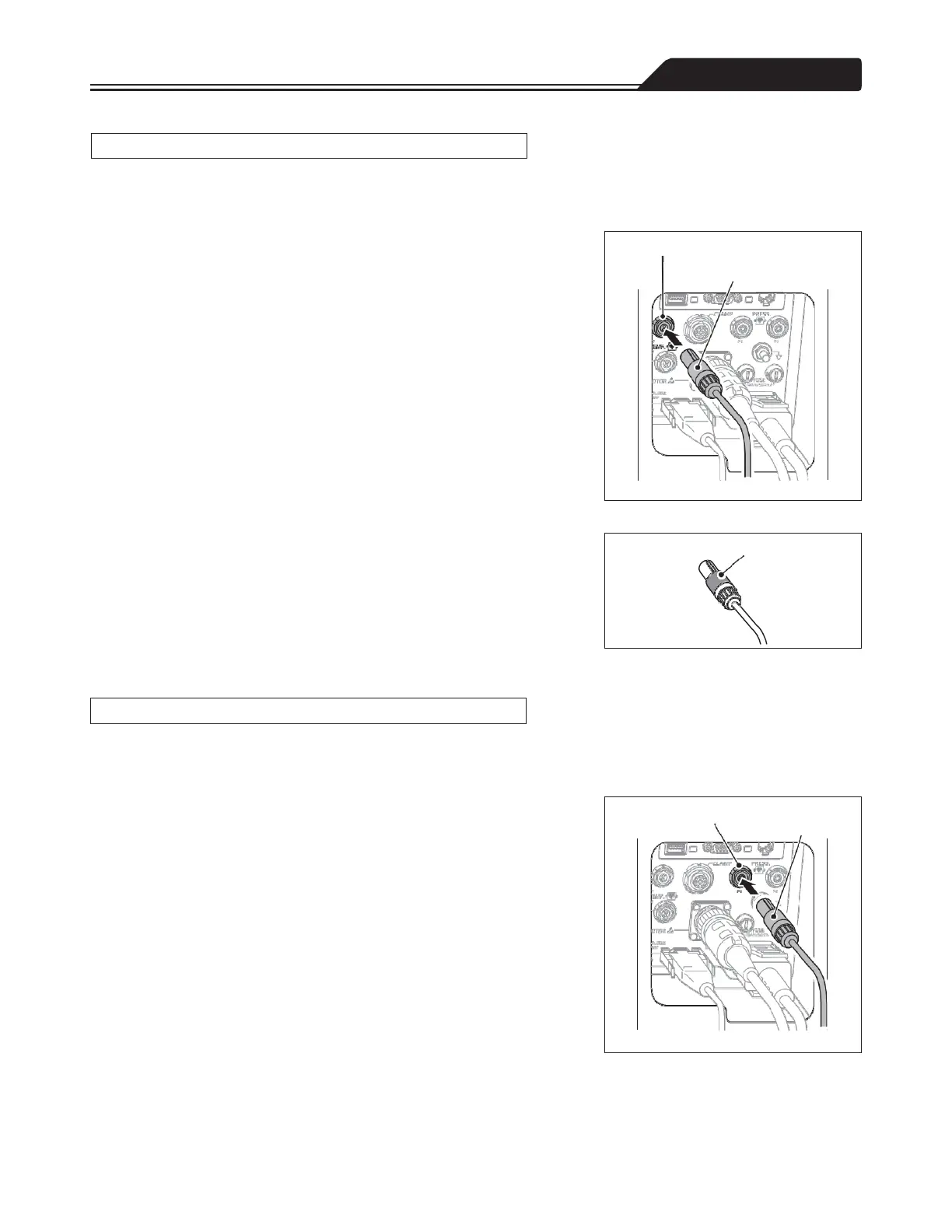

Figure 1-15
When removing the plug, pull it out straight while holding the outer ring of the
plug of the Temperature Sensor Cable. (Figure 1-16)
Figure 1-16
This section describes the step for using the pressure measuring function.
When using the pressure measuring function, confirm that the setup of the pressure measuring function of the channel to be used
is on. (Refer to “Confirming the Setup” (page 48).)
1. Align the plug of the Pressure Sensor Cable with the slot of
the pressure sensor connector on the rear panel, and insert
the plug into the connector (P1 or P2). (Figure 1-17)
Do not forcefully insert the plug.
Figure 1-17
