Operation Procedure
When removing the plug, pull it out straight while holding the outer ring of the
plug of the Pressure Sensor Cable. (Figure 1-18)

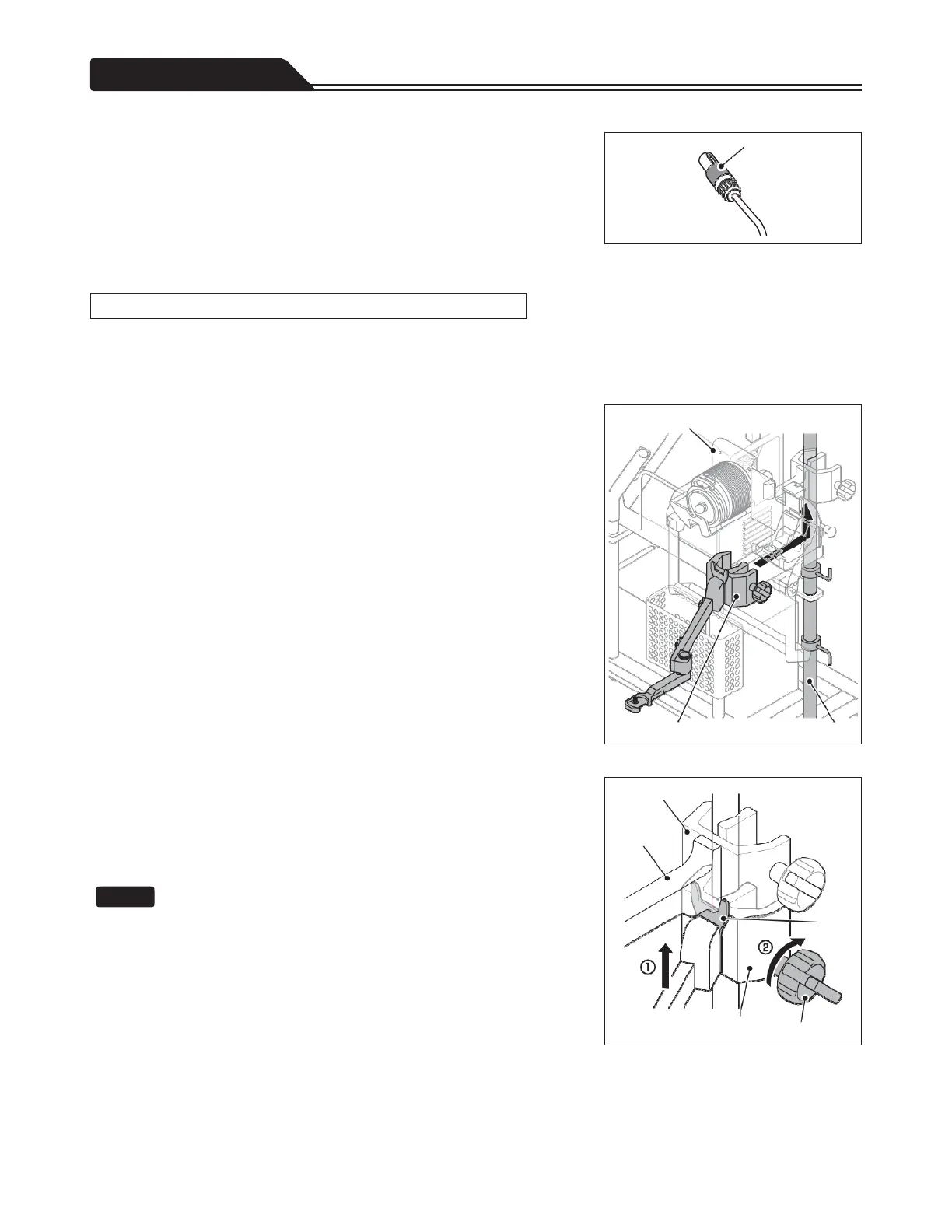

Figure 1-18
This section describes the steps for using the Fast Clamp.
When using the Fast Clamp, confirm that the setup of the Fast Clamp is on. (Refer to “Confirming the Setup” (page 48).)
Using the Fast Clamp Attachment (for EBS)
1. Lower the handle of the CAPIOX EBS Circuit Holder, and
insert the Fast Clamp Attachment (for EBS) as shown in the
figure. (Figure 1-19)
Figure 1-19
2. Align the guide plate of the Fast Clamp Attachment
(for EBS) to the arm of the CAPIOX EBS Circuit Holder.
(Figure 1-20
a
)
3.
Secure it with the knob. (Figure 1-20
b
)
• The Fast Clamp Attachment (for EBS) is secured.
• The clamps of the Fast Clamp Attachment (for EBS) and the CAPIOX EBS Circuit
Holder are in contact.
Figure 1-20
38
Connecting to Fast Clamp
Checks
Plug
IV pole Fast Clamp Attachment (for EBS)
CAPIOX EBS Circuit Holder
Knob
Clamp
Guide
late
rm
Clamp
To Next Page
