Operation Procedure

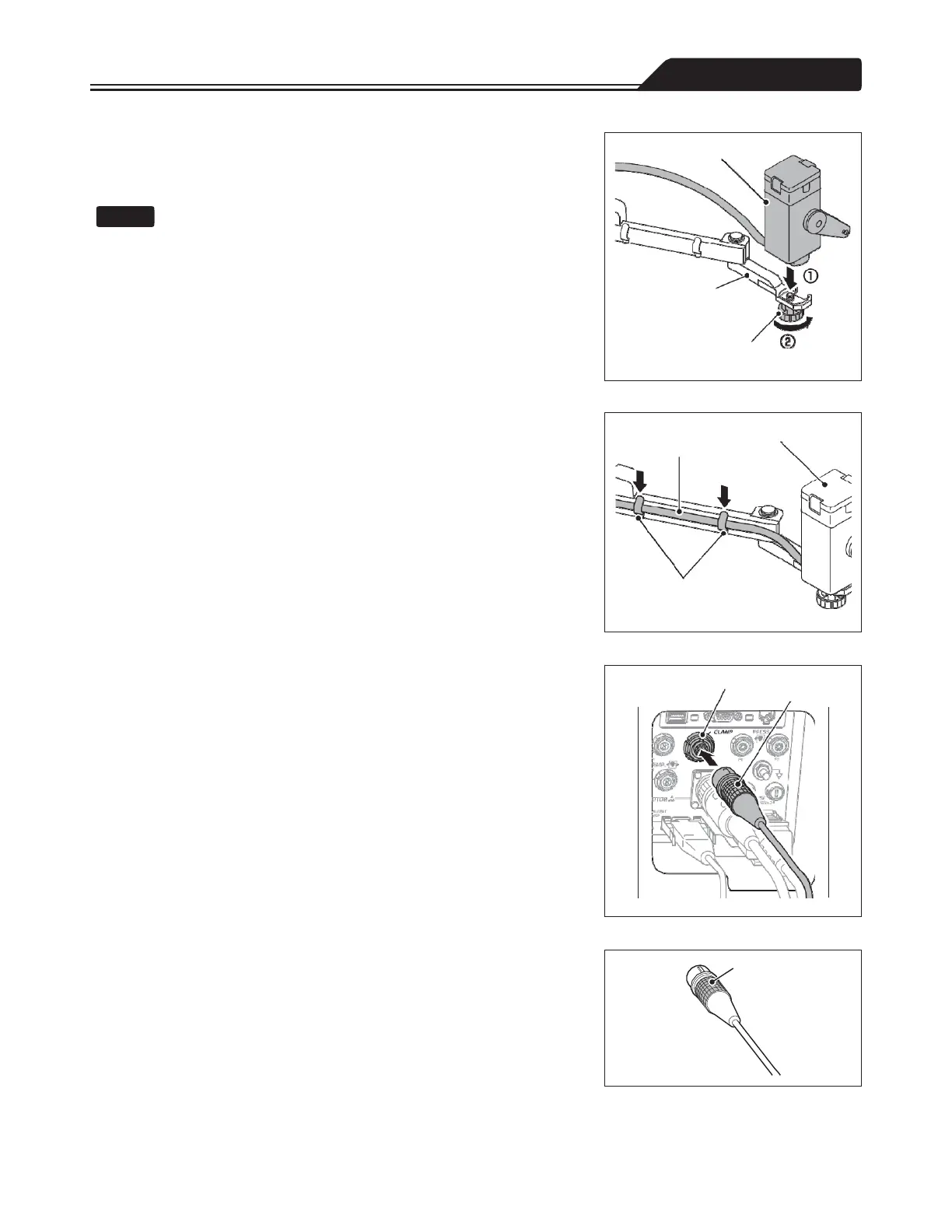

4. Attach the Fast Clamp to the Fast Clamp Attachment
(for EBS) (Figure 1-21
a ), and secure it with the knob.
(Figure 1-21
b )
• The Fast Clamp is secured.
5. Hang the cable of the Fast Clamp along the cable clamps.
(Figure 1-22)
Figure 1-21
6. Insert the plug of the Fast Clamp into the fast clamp
connector on the rear panel. (Figure 1-23)
Align the plug of the Fast Clamp with the slot of the fast clamp connector, and
insert the plug until you hear a click.
Do not forcefully insert the plug.
Figure 1-22
When removing the plug, pull it out straight while holding the outer ring of the
plug of the Fast Clamp. (Figure 1-24)
Figure 1-23
Figure 1-24
39
Check
Fast Clamp
Fast Clamp Attachment
(for EBS)
Knob
Fast Clamp
Cable
Cable clamps
Fast clamp connector
Plug
Plug
