Operation Procedure
3. Remove the plug cap of the Drive Motor. Insert the
plug into the drive motor connector on the rear panel.
(Figure 1-12
a
)
Then, turn the lock ring clockwise until you
hear a click. (Figure 1-12
b
)
When removing the plug of the Drive Motor, turn the lock ring counter-
clockwise until you hear a click, and pull it out straight.

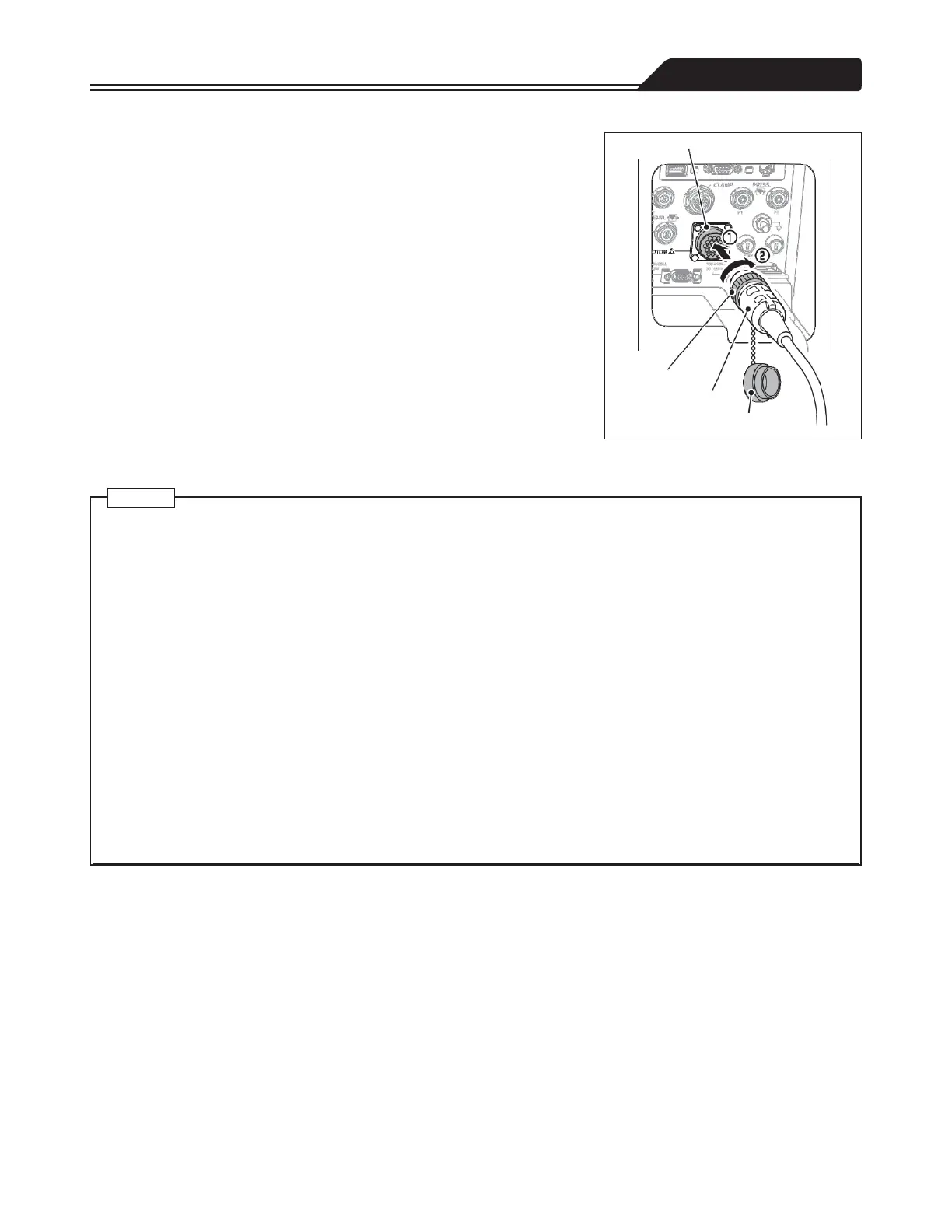

Figure 1-12
35
• When attaching or detaching the Drive Motor or the ABD/Flow Sensor to or from the Controller, turn off the power. It may
cause a failure for the Controller.
• Before attaching the Drive Motor, the ABD/Flow Sensor, the Temperature Sensor Cable, the Pressure Sensor Cable, the
Fast Clamp, the LAN cable and the CDI Communication Cable to the Controller, ensure the connectors and plugs are not
damaged. If a connector pin is damaged or twisted, replace the system with a spare one and do not use it. This may result
in decreased performance.
• Since drug solution may cause a short circuit, ensure that the connecting sections (the Drive Motor, the ABD/Flow Sensor,
the Pressure Sensor Cable, the Temperature Sensor, the Fast Clamp, the LAN cable and the CDI Communication Cable)
are not wet when connecting plugs to connectors. If moisture is present, ensure that the power is turned off and the AC
power cable is removed from both this system and grounded AC power source, and then thoroughly wipe with a dry
soft cloth. Since this system does not have a waterproof structure, drug solution and moisture may affect the electrical
components inside, and cause a malfunction.
• Do not touch the inside of the drive motor connector, the ABD/Flow sensor connector at the back of the Controller. Be sure
to set up and operate within specified environmental humidity levels. (Including attaching or detaching connector.) It may
cause static electricity resulting in failure or malfunction.
• Adjust the Drive Motor position so as not to let the fixed hook and the extracorporeal circulation circuit connection part
interfere. The fixed hook or centrifugal pump may be damaged.
• Do not hang cables (the Drive Motor, the ABD/Flow Sensor) or AC power cable on the fixed hook. The fixed hook may be
damaged.
Cautions
Drive motor connector
Lock ring
Plug
Plug cap
