Terumo CAPIOX EBS Circuit with X coating User Manual

Parts Description

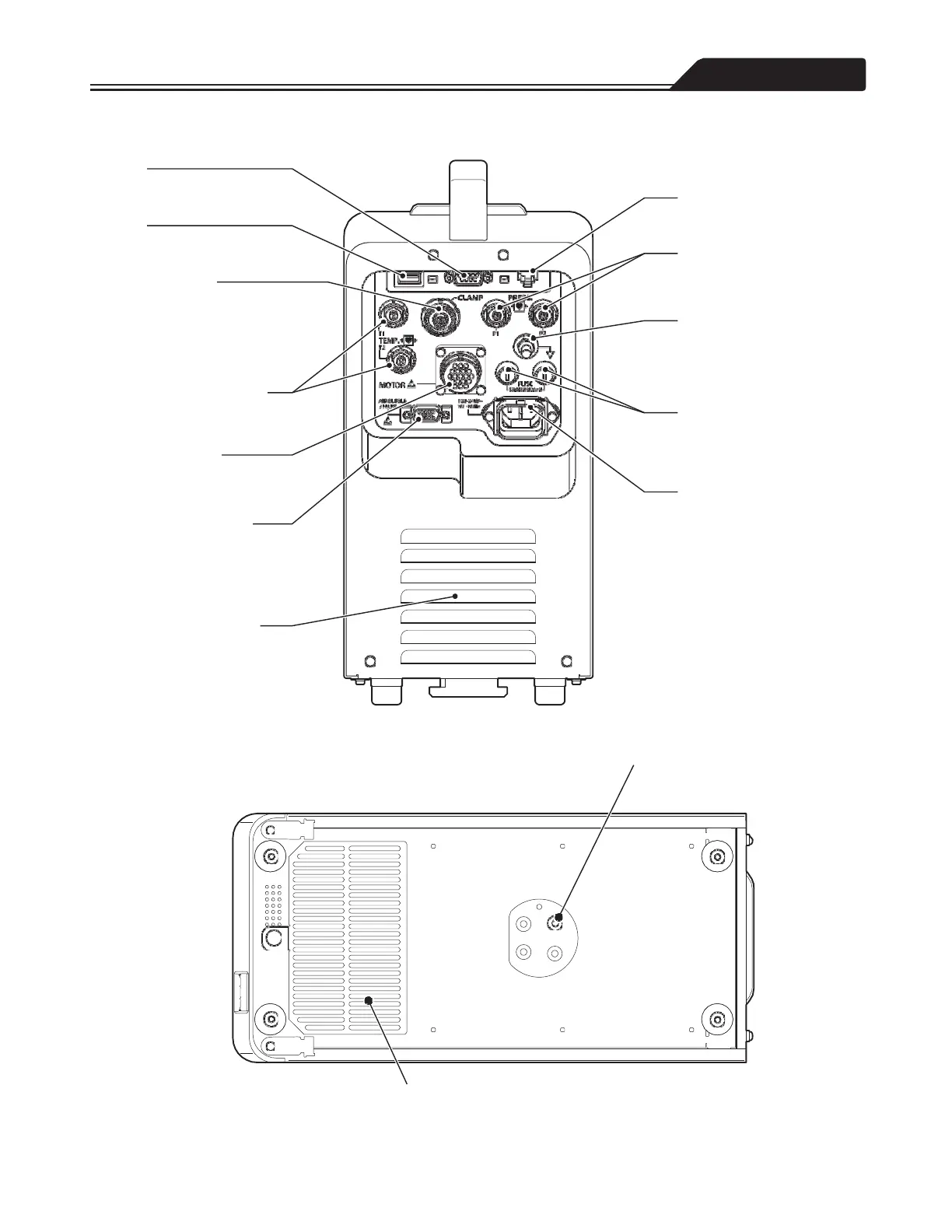

 Rear view
LAN port
Connects with a LAN cable.
Pressure sensor connector
(P1 and P2)
Connects with the Pressure
Sensor Cable.
Potential equalization terminal
Connects with a ground cable.
(Use when necessary.)
Fuse holders
Builds in fuses.
(Type and rating: T8AH250V)
AC power inlet
Connects with an AC power cable.
(Pull out the AC power cable when
shutting off AC power.)
 Bottom view
Latch block
Used for securing with the
Cart (an optional product).
Air inlet (with filter)
7
CDI
®
port
Connects to the CDI500.
USB port
Connects with a USB memor
y
drive.
Fast clamp connector
Connects with the Fast Clamp.
Temperature sensor connector
(T1 and T2)
Connects with the Temperature
Sensor Cable.
Drive motor connector
Connects with the Drive Motor.
ABD/Flow sensor connector
Connects with the ABD/Flow
Sensor.
Air outlet
