8-26 4252490-Rev A
CUTTING UNITS
8
Center Lift Arm
Removal and Installation
See Figures 8-25 and 8-26.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove cutting unit. (See “Cutting Unit” on
page 8-22.)

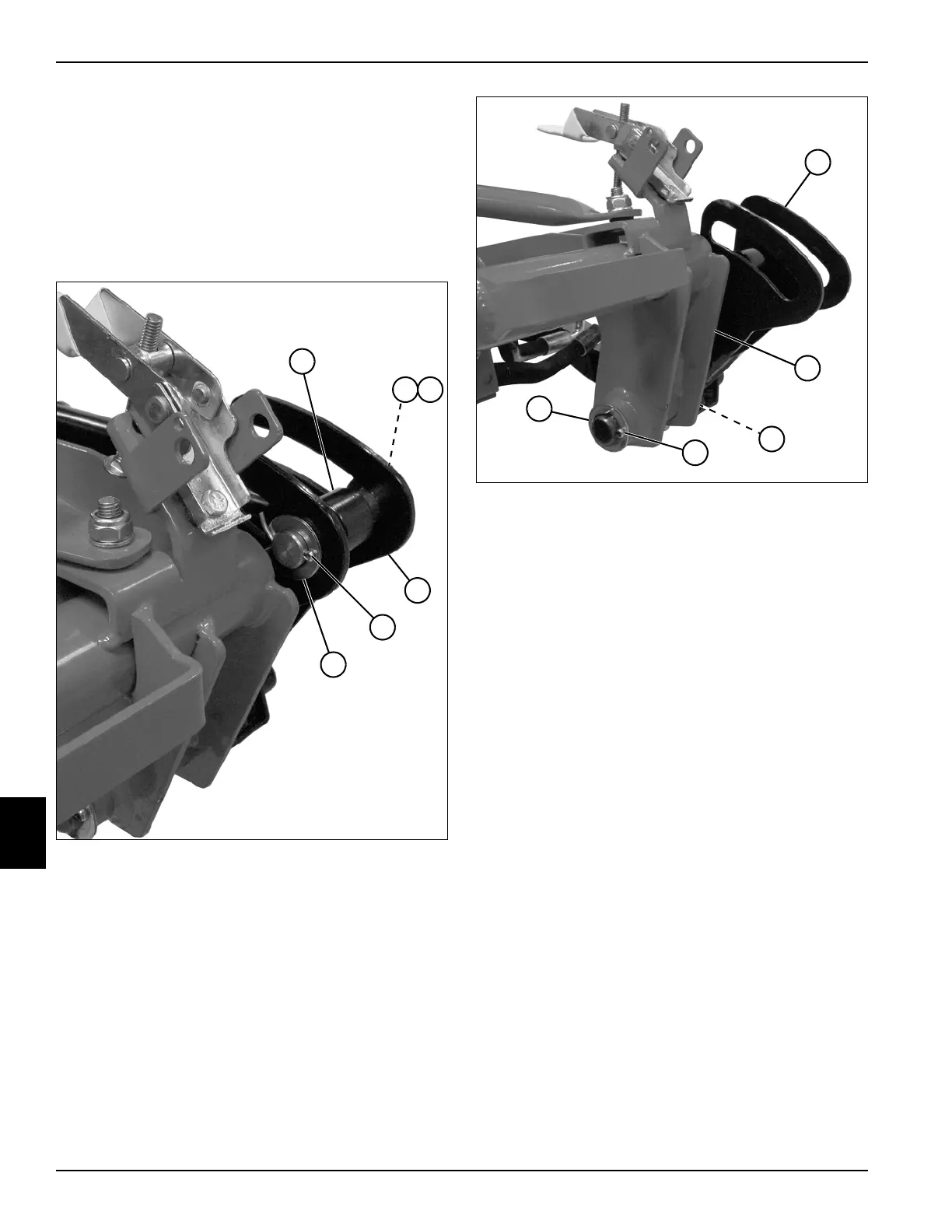

Figure 8-25
3. Remove cotter pin (5) and two flat washers (6).
4. Remove pin (2) and flat washer (3) from lift cylinder
(1) and lift arm (4).
Figure 8-26
5. Remove cotter pin (9) and flat washer (10).
6. Remove lift arm (4) and washer (8) from rear swing
arm (7).
TN3742
1
2 3
6
5
4
TN3743
9
4
8
10
7
To Next Page
