Configuration Guide 110
Managing Physical Interfaces Configuration Examples
5.2.3 Using the GUI
1) Choose the menu L2 FEATURES > Switching > Port > Loopback Detection to load the
configuration page.
2) In the Loopback Detection section, enable loopback detection and web refresh
globally. Keep the other parameters as default values and click Apply.

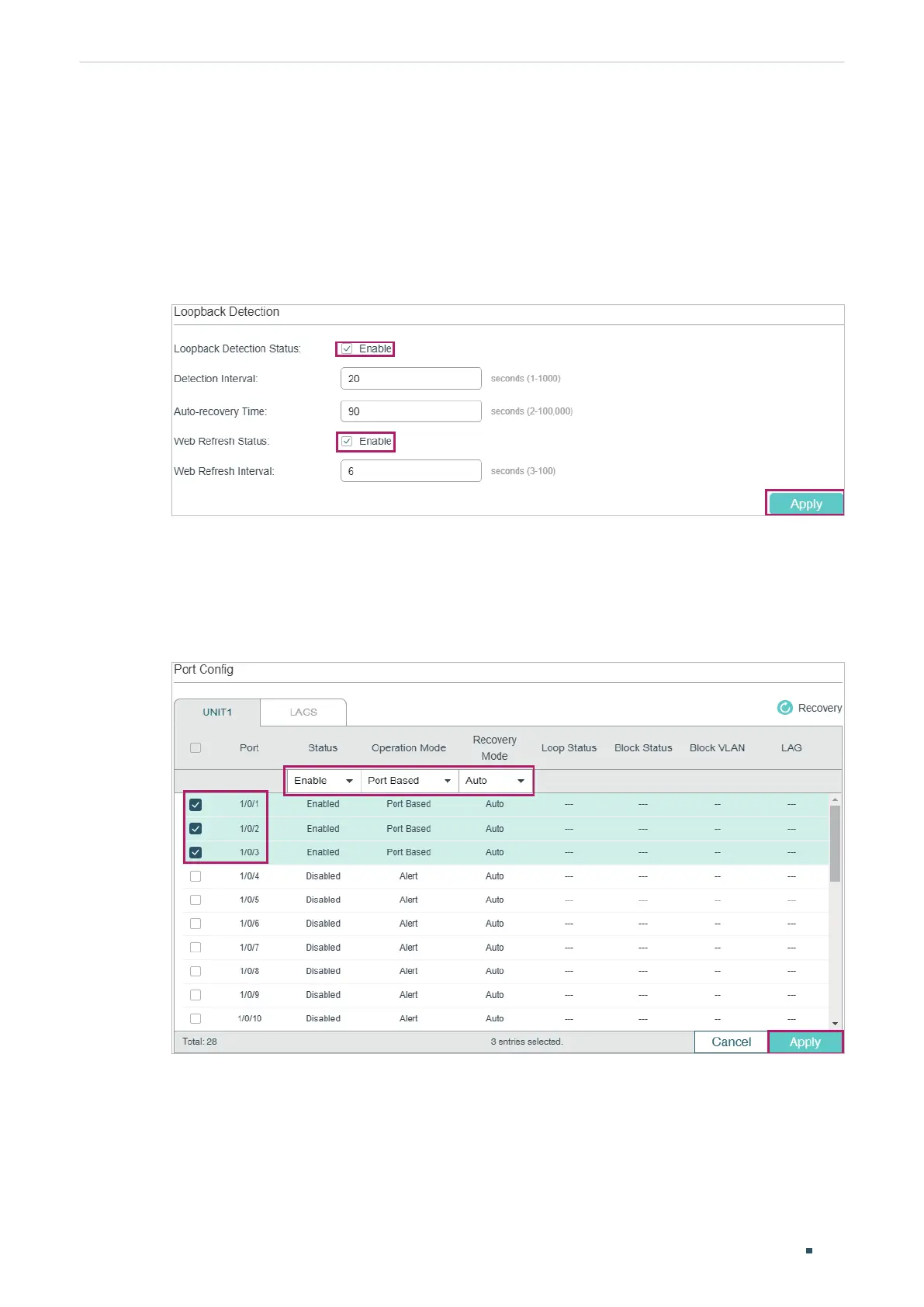

Figure 5-6 Global Configuration
3) In the Port Config section, enable ports 1/0/1-3, select the operation mode as Port
-Based so that the port will be blocked when a loop is detected, and keep the recovery
mode as Auto so that the port will automatically be recovered to normal status after the
auto-recovery time. Click Apply.
Figure 5-7 Port Configuration
4) Monitor the detection result on the above page. The Loop status and Block status are
displayed on the right side of ports.
