Configuration Guide 578

Configuring ACL ACL Configuration

Configuring IP ACL Rule

Click Edit ACL for an IP ACL entry to load the following page.

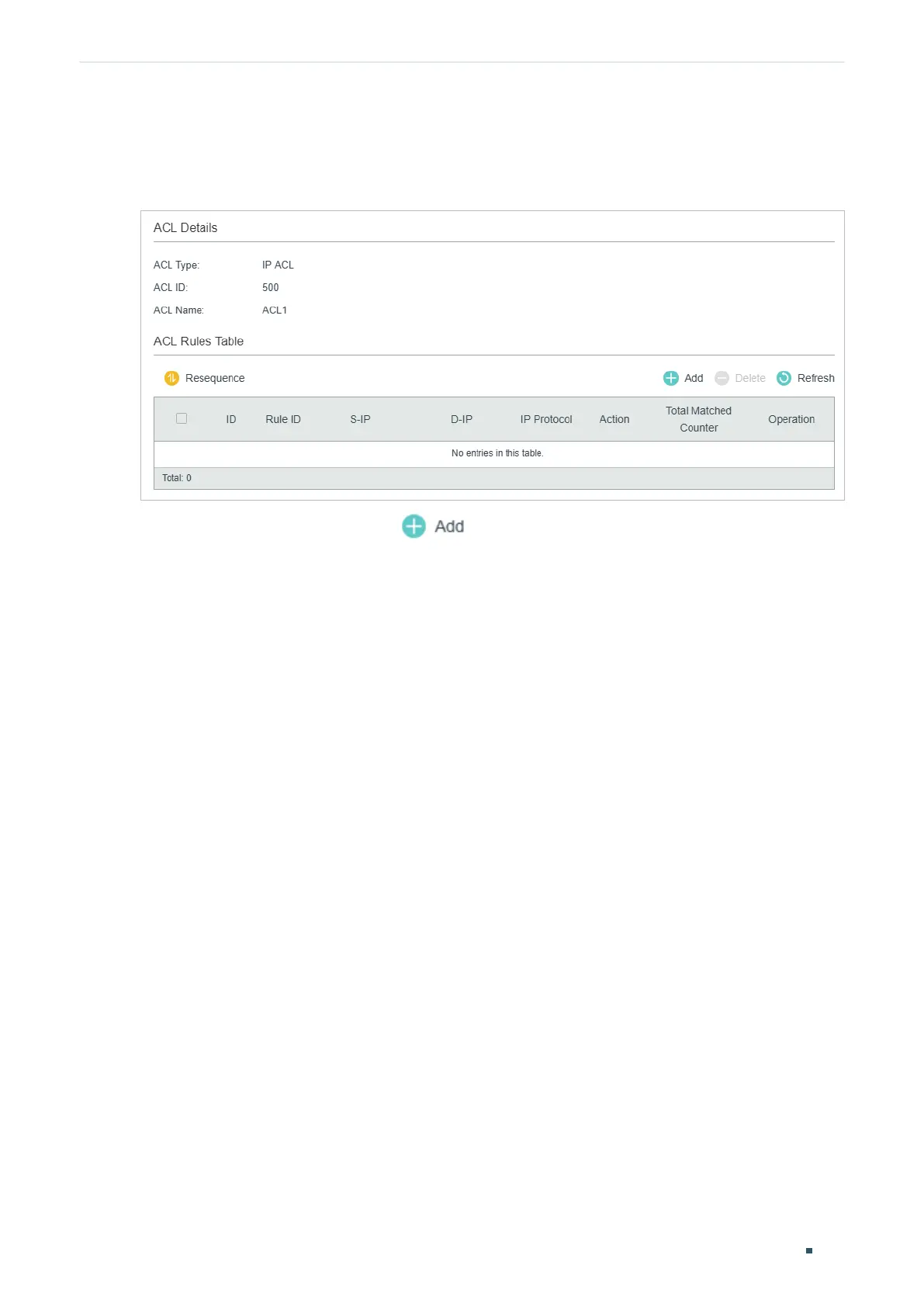

Figure 2-9 Configuring the IP ACL Rule

In ACL Rules Table section, click and the following page will appear.
