Configuring Protocol VLAN Configuration Example
Configuration Guide
185
3.3 Using the GUI
Configurations for Switch 1
1) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page. Create VLAN 10, and add untagged port 1/0/1 and
untagged port 1/0/3 to VLAN 10. Click Create.

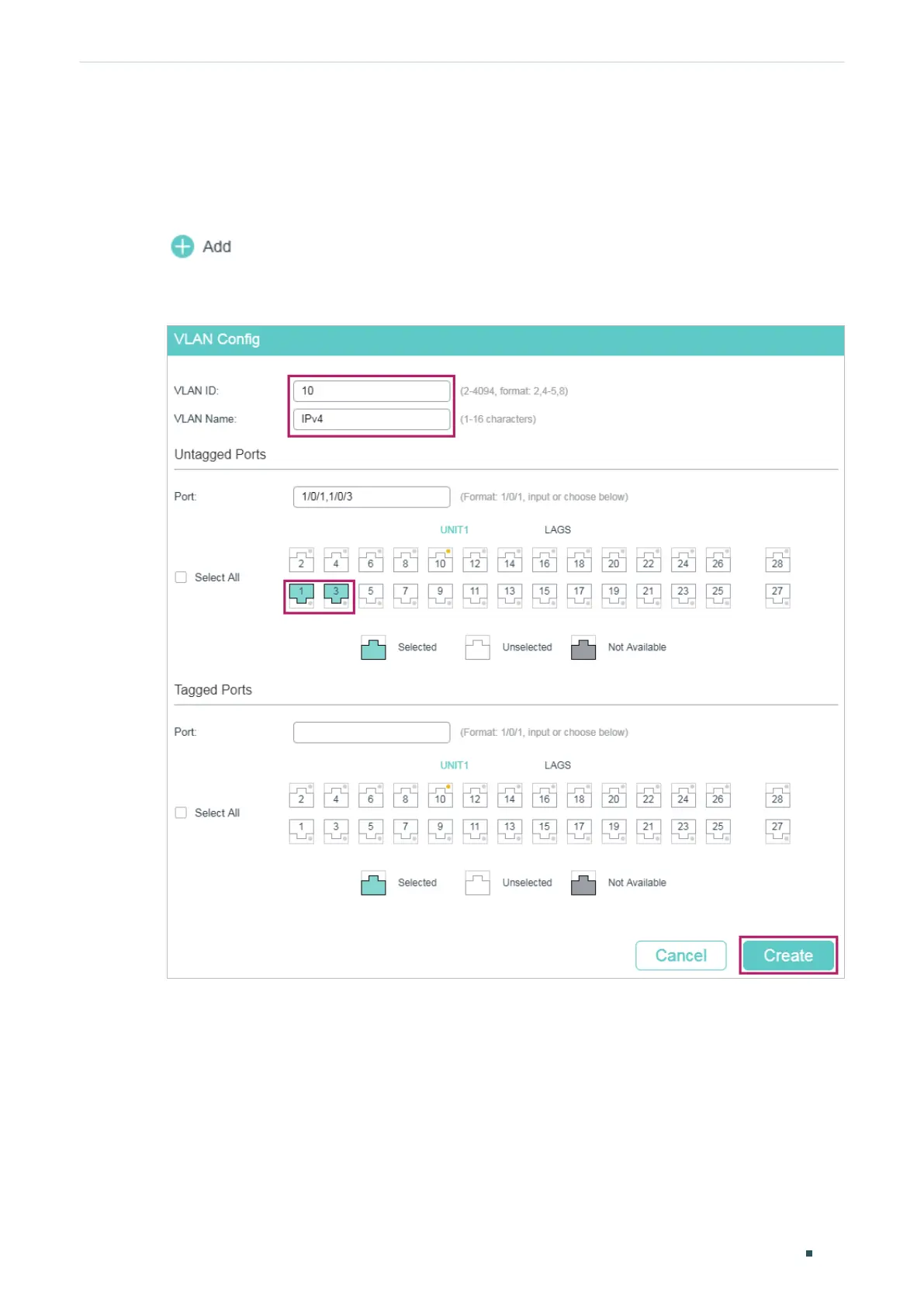

Figure 3-2 Create VLAN 10
