Configuring Layer 2 Multicast Configuration Examples
Configuration Guide
293

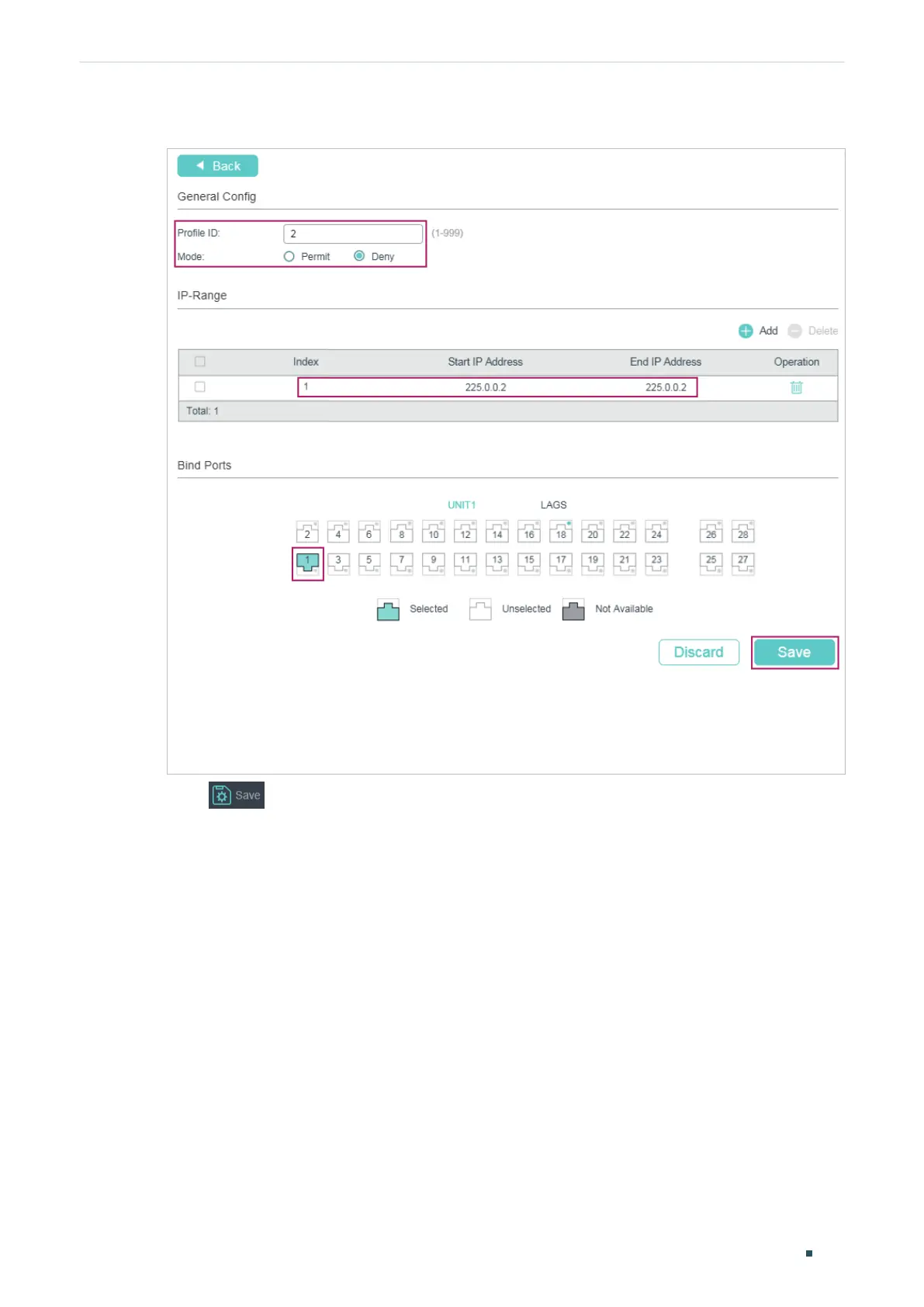

Figure 7-23 Configure Filtering Profile for Host B
7) Click to save the settings.
7.4.5 Using the CLI
1) Create VLAN 10.
Switch#configure
Switch(config)#vlan 10
Switch(config-vlan)#name vlan10
Switch(config-vlan)#exit
2) Add port 1/0/1-3 to VLAN 10 and set the link type as untagged. Add port 1/0/4 to VLAN
10 and set the link type as tagged.
Switch(config)#interface range fastEthernet 1/0/1-3
Switch(config-if-range)#switchport general allowed vlan 10 untagged
Switch(config-if-range)#exit
