Configuring DHCP Service Example for DHCP VLAN Relay
Configuration Guide
415

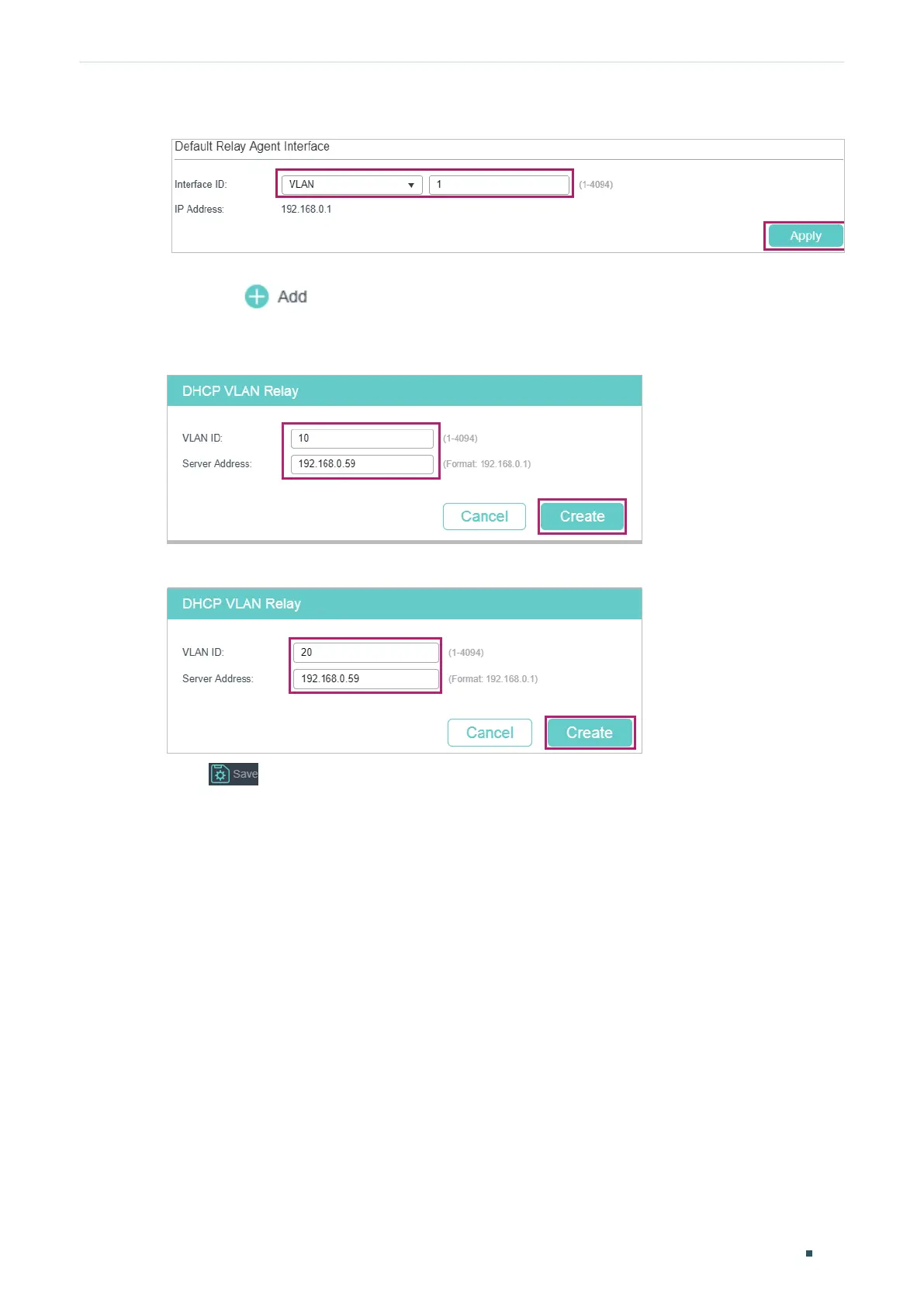

Figure 4-7 Specify the Default Relay Agent Interface
3) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP VLAN Relay
and click
to load the following page. Specify the DHCP server address for the
clients in VLAN 10 and VLAN 20.
Figure 4-8 Specify DHCP Server for Interface VLAN 10
Figure 4-9 Specify DHCP Server for Interface VLAN 20
4) Click to save the settings.
4.4 Using the CLI
Configurting the DHCP Server
1) Enable DHCP service globally.
Switch#configure
Switch(config)#service dhcp server
2) Create a DHCP pool and name it as “pool” and configure its network address as
192.168.0.0, subnet mask as 255.255.255.0, lease time as 120 minute, default gateway
as 192.168.0.1.
Switch(config)#ip dhcp server pool pool
Switch(dhcp-config)#network 192.168.0.0 255.255.255.0
Switch(dhcp-config)#lease 120
