Configuring ACL Configuration Example for ACL
8) Choose the menu SECURITY > ACL > ACL Binding and click to load the
following page. Bind Policy Market to port 1/0/1 to make it take effect.

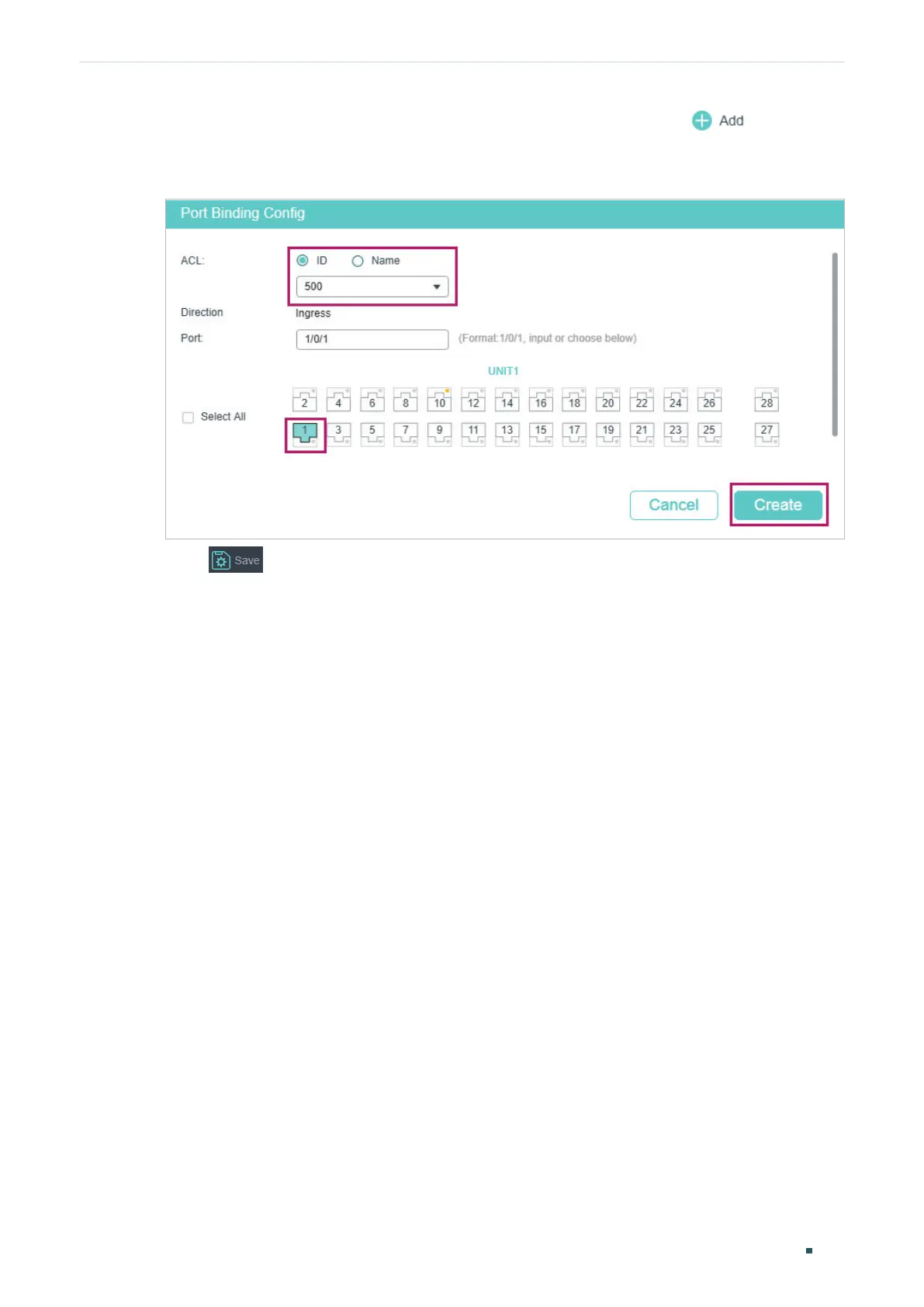

Figure 3-11 Binding the Policy to Port 1/0/1
9) Click to save the settings.
3.4 Using the CLI
1) Create an IP ACL.
Switch#configure
Switch(config)#access-list create 500 name marketing
2) Configure rule 1 to permit packets with source IP 10.10.70.0/24 and destination IP
10.10.80.0/24.
Switch(config)#access-list ip 500 rule 1 permit logging disable sip 10.10.70.0 sip-mask
255.255.255.0 dip 10.10.80.0 dmask 255.255.255.0
3) Configure rule 2 and Rule 3 to permit packets with source IP 10.10.70.0/24, and
destination port TCP 80 (http service port) or TCP 443 (https service port).
Switch(config)#access-list ip 500 rule 2 permit logging disable sip 10.10.70.0 sip-mask
255.255.255.0 protocol 6 d-port 80 d-port-mask ffff
Switch(config)#access-list ip 500 rule 3 permit logging disable sip 10.10.70.0 sip-mask
255.255.255.0 protocol 6 d-port 443 d-port-mask ffff
4) Configure rule 4 and rule 5 to permit packets with source IP 10.10.70.0/24, and
destination port TCP53 or UDP 53.
Switch(config)#access-list ip 500 rule 4 permit logging disable sip 10.10.70.0 sip-mask
255.255.255.0 protocol 6 d-port 53 d-port-mask ffff
