Configuring ACL Configuration Example for ACL

Configuration Guide

611

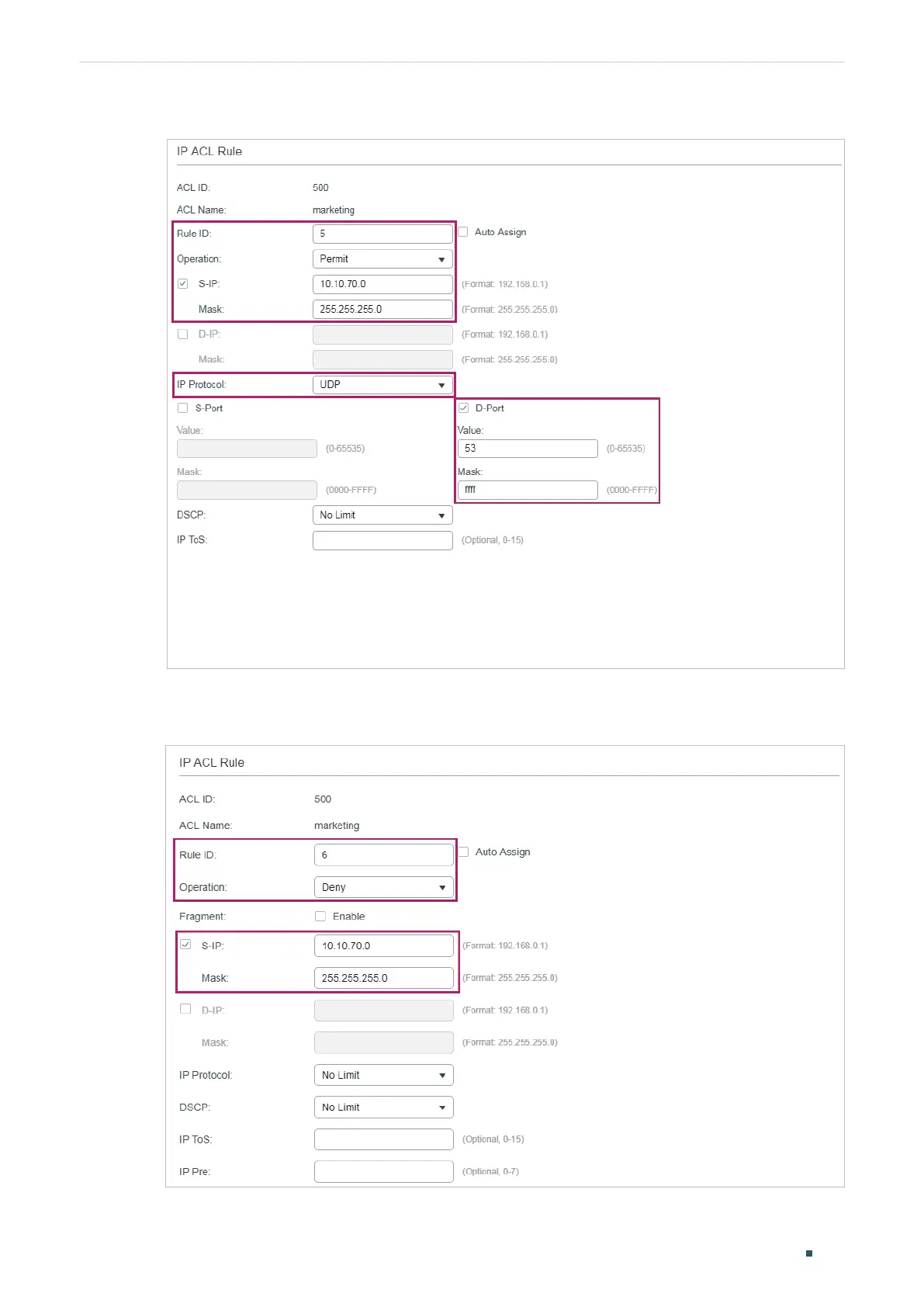

Figure 3-9 Configuring Rule 5

7) In the same way, configure rule 6 to deny packets with source IP 10.10.70.0.

Figure 3-10 Configuring Rule 6
